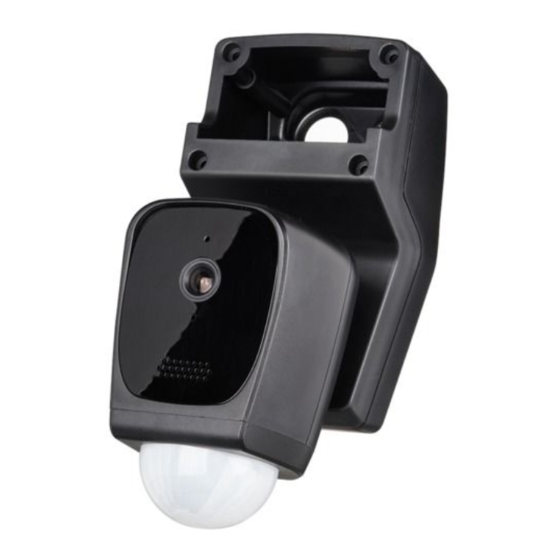

Summary of Contents for Theben TIMEGUARD LEDPROCAM

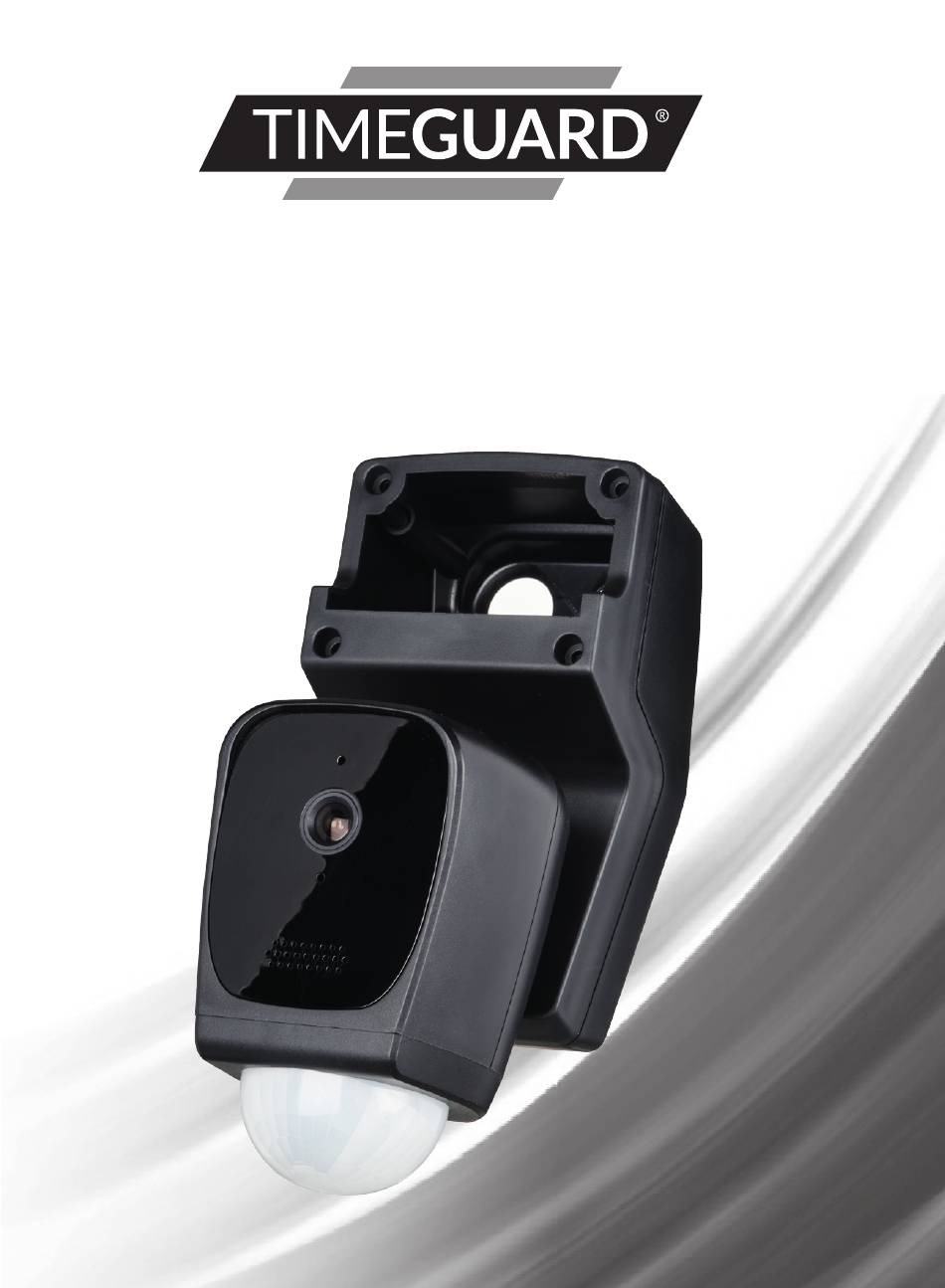

- Page 1 LEDPRO Wi-Fi PIR Camera System Model: LEDPROCAM...
-
Page 2: General Information
1. General Information These instructions should be read carefully and retained for further reference and maintenance. Timeguard reserve the right to alter these instructions at any time. Note: Up to date instructions will always be available for download at www.timeguard.com 2. - Page 3 • Audio: Two Way • Siren Volume: 100dB • Operating Temperature: 0º - 40º • WLAN Standard: 802.11 b/g/n • WLAN Standard: 2.4GHz • Supports SD Card: Up to 128GB max (not supplied) • Cloud Storage: Optional in App purchase (Tuya) •...
-
Page 4: System Requirements
4. System Requirements • Smartphone/Tablet with at least iOS 9.0 or Android 6.0 • WLAN-enabled router: 2.4GHz (Separate Band) • Tuya Smart App 5. PIR Operation • A moving human body or object needs to cross one of these zones to activate the sensor. The optimum height for this is between 1.5m - 2.5m mouting height. -
Page 5: Installation
6. Installation Note this procedure should be carried out when the luminaire is detached from the wall. Brackets for 10W, 20W LEDPRO floodlights included. • Ensure the mains supply is switched off and the circuit supply fuses are removed or the circuit breaker is turned off. •... - Page 6 • Attach the jumper plug for the LEDPROCAM to the socket connector of the LEDPRO floodlight. DO NOT FORCE. THE PLUG AND SOCKET WILL ONLY FIT ONE WAY AROUND. Jumper Plug bar with one with the other to reconnect). • Pass the mains supply and load cables into the holes provided on the LEDPROCAM’s back cover ensuring that a cable gland, grommet or sealing compound is used to maintain the IP rating.
-
Page 7: Connection Diagram
7. Connection Diagram Mains Isolation 'Switch Live' Supply Switch Note: Any floodlight connected to the L1 Switch Live terminal 'Live Output' will be controlled by the LEDPROCAM. Connect the mains supply cable to the terminal block on the backplate as follows (see connection diagram): EARTH (Green / Yellow) NEUTRAL (Blue) LIVE (Brown) - Page 8 8. Camera Head Adjustment • The detector head can be panned 10˚ to the right and 10˚ to the left as well as up and down. Tilt down 9. Downloading App and Registration Note: the mobile or tablet device must be connected to a 2.4GHz band on the router.
- Page 9 • Install the App and open it to the registration screen. Click on the ’Register’ button. • Tap ‘Agree’ to accept the privacy policy. • Choose your region by selecting your ‘Country Code’. Enter your email address and phone number and click ‘Get Verification Code’.
-
Page 10: Pairing Device(S)
10. Pairing Device(s) Note: if you are using a VPN, make sure this is disabled before continuing and ensure that a 2.4GHz Wi-Fi band is enabled for this device. The Reset button is behind the rubber flap along side the Mirco SD card reader. •... -
Page 11: Year Guarantee
11. Smart Home Assistant For Smart Home Assistant services such as Google Home or Amazon Alexa, follow the on-board instructions on the TuyaSmart App. This can be found under the ‘Me’ section on the home page of the App. Note: The Smart Home Assistant services supported by the TuyaSmart App may change as it is a 3rd party App Service. - Page 12 If you experience problems, do not immediately return the unit to the store. Email the Timeguard Customer Helpline: HELPLINE helpline@timeguard.com or call the helpdesk on 020 8450 0515 Qualified Customer Support Coordinators will be online to assist in resolving your query. For a product brouchure please contact: Timeguard Limited.
