Summary of Contents for Hobby Porter FR610

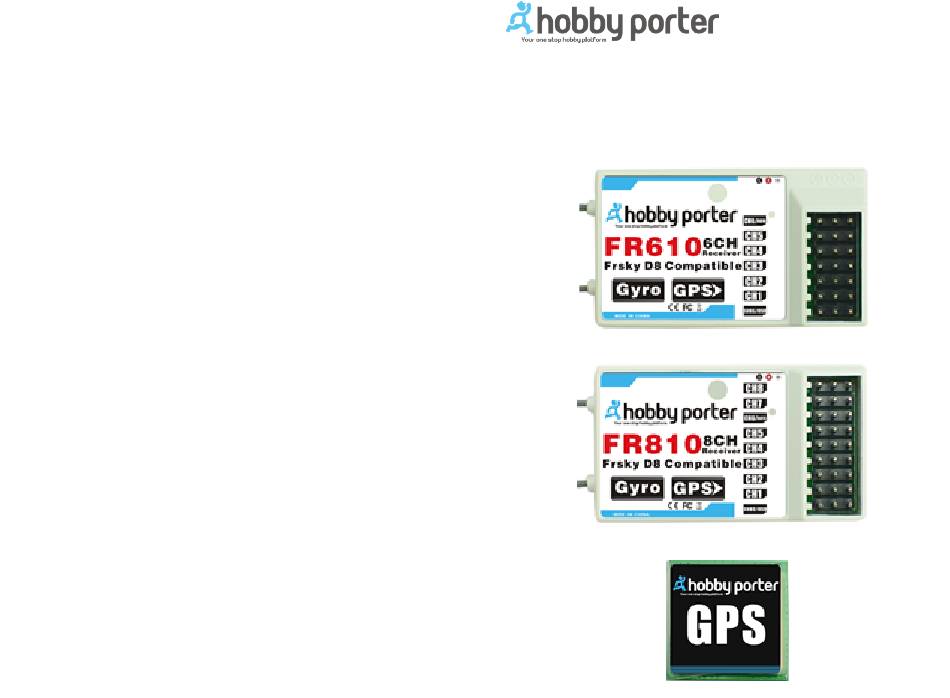

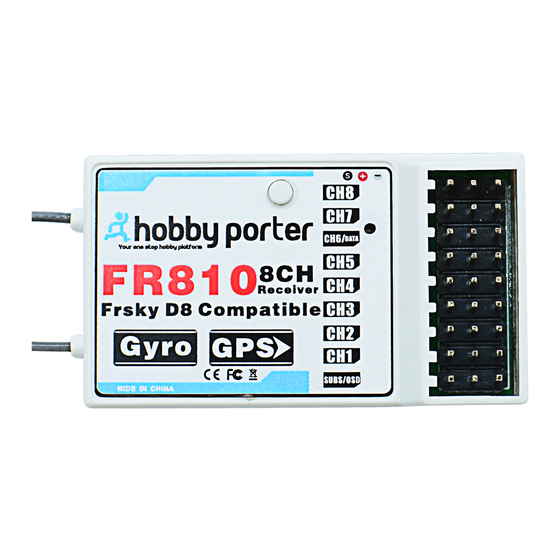

- Page 1 Six-Channel / Eight-Channel Intelligent Flight Receiver Model Number：FR610 / FR810 / GPS...
- Page 2 Product parameters: 1. Application frequency: 2.40GHz - 2.48GHz 2. Application Protocol: Compatible with D8R open source protocol 3. Application Technology: 2.4G full frequency ACCST frequency hopping technology 4. Communication distance: >800 meters 5. Power Source: 3.3V - 7.4V 6. Size: Receiver 47mm*27mm*12mm / GPS 29mm*28mm*8mm 7.
- Page 3 2. K2: Set the front and back of the aileron of the flight control set the corresponding control channel. See the attached table for gyroscope and press it once and twice. details. 12. Airplane type mode: Supports a variety of fixed-wing, flying-wing, 3.
- Page 4 The correct response of the aircraft gyro: Note 3: In order to achieve a good use effect of the flight control, please pay attention to some reminders. 1. Ensure that the aircraft has no abnormal resonance or only Note: The correct setting of the aircraft before takeoff is closely slight vibration when the throttle is pushed to 80%.
- Page 5 5. GPS hand-throw function: When you connect the GPS module 2. The K2, K3 and K4 keys correspond to the positive and negative and set the parameters correctly, the remote control's mode switch adjustments of the aileron, elevation, and direction of the gyroscope (see the attached table for details) is in the balance function respectively.
- Page 6 for about 6-10 seconds, when the LED is always on and the elevator is stepped up and down 2 times, it indicates that it is ready. When GPS is connected, the receiver is powered on and keeps the receiver stable for about 6-10 seconds. When the LED is on, and the elevator moves up and down at the same time twice, the elevator lifts a certain angle (prompt) and enters GPS searching state (in this case the throttle and lift are locked), when the GPS...
- Page 7 GPS parameter control instructions: One-click rescue aircraft action response check: Press the rescue button to observe whether the aircraft immediately enters the balanced flight mode and lifts the elevator automatically, Minimum height: Controls the aircraft's automatic flight at the and the elevator slowly reduces the output, and finally returns to set altitude, defaulting to 60 meters.
