IDENTIFICATION DATA OF THE MANUFACTURER
KOLVER S.r.l.
VIA M. CORNER, 19/21
36016 THIENE (VI) ITALIA
DECLARATION OF CONFORMITY
KOLVER S.r.l. declares that the new tool here described: screwdrivers KDS series (see
table) are in conformity with the following standards and other normative documents:
2006/42/CE, LVD 2014/35/UE,
1: 2015, EN 60204-1, EN 61000-6-2, EN 61000-6-4.
It is also in conformity with III normative (2011/65/UE and following 2015/863).
Name:
Position:
Person authorized to compile the technical file in Kolver
Thiene, January 1st 2021
K-DUCER MANUAL

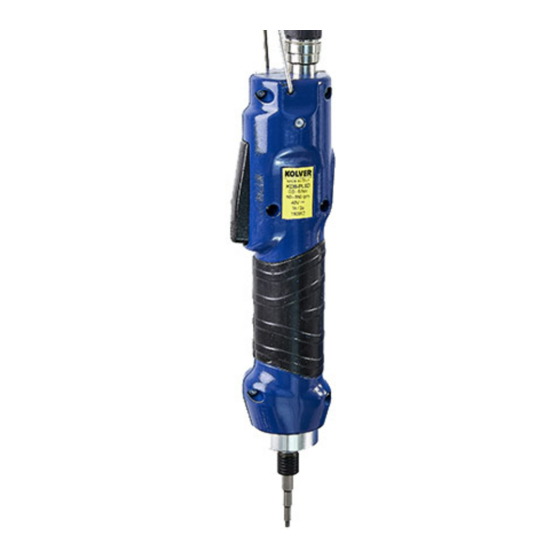

KDS screwdrivers
Giovanni Colasante
CEO
EMCD 2014/30/UE, EN 62841-2-2:2014, EN 62841-
Giovanni Colasante
