- Page 1 INSTALLATION AND USER’S MANUAL AC - 240 Inductive Sensor comunello.com Cod.91300158 - Rev. 01 - 27.06.19 COMUNELLO ®Copyright 2019 - All rights reserved...

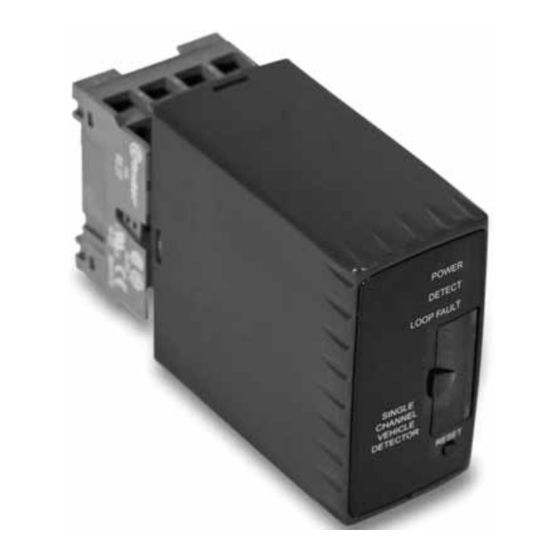

- Page 2 1 WARNINGS 3 TECHNICAL DATA POWER LD100 200 - 260VAC 50Hz 1.5VA The LD100 is a single channel inductive loop • REQUIREMENT: LD101 100 - 120VAC 60Hz 1.5VA detector. The use of microprocessor and surface LD102 11 - 26VAC/DC 50/60Hz 95mA max.
- Page 3 • The loop and feeder should be made from insulated copper wire with a minimum cross-sectional area of 1.5mm2. The feeder should be twisted with at least 20 turns per metre. Joints in the wire are not recommended COMUNELLO ®Copyright 2019 - All rights reserved...
- Page 4 50mm deep. Remember to extend the slot from one of the corners to the road-side to accommodate the feeder. Best results are obtained when a single length of wire is used with no joints. COMUNELLO ®Copyright 2019 - All rights reserved...
