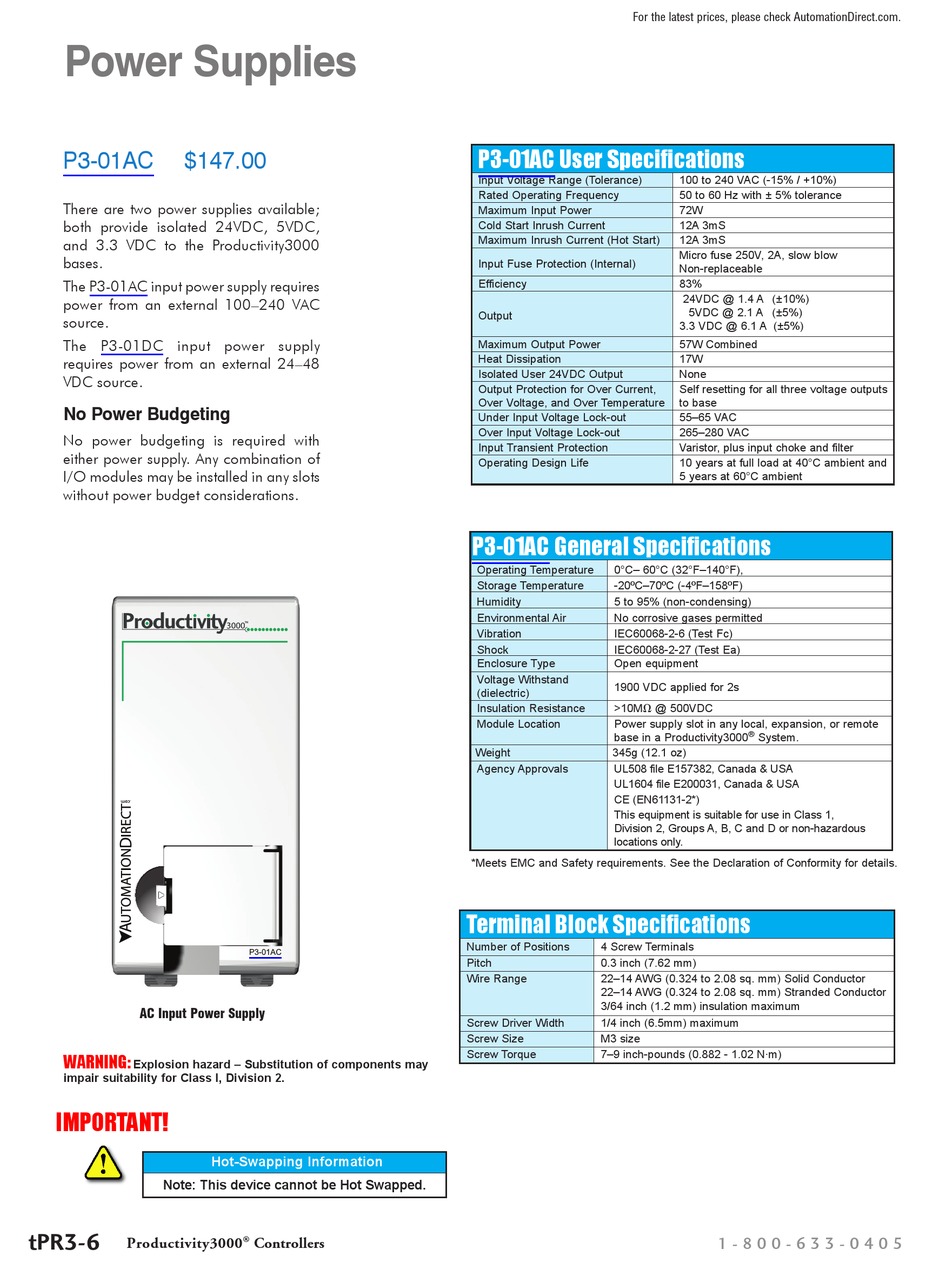

Power Supplies
P3-01AC $147.00
There are two power supplies available;
both provide isolated 24VDC, 5VDC,
and 3.3 VDC to the Productivity3000
bases.
The P3-01AC input power supply requires
power from an external 100–240 VAC
source.
The P3-01DC input power supply
requires power from an external 24–48
VDC source.
No Power Budgeting
No power budgeting is required with
either power supply. Any combination of
I/O modules may be installed in any slots
without power budget considerations.

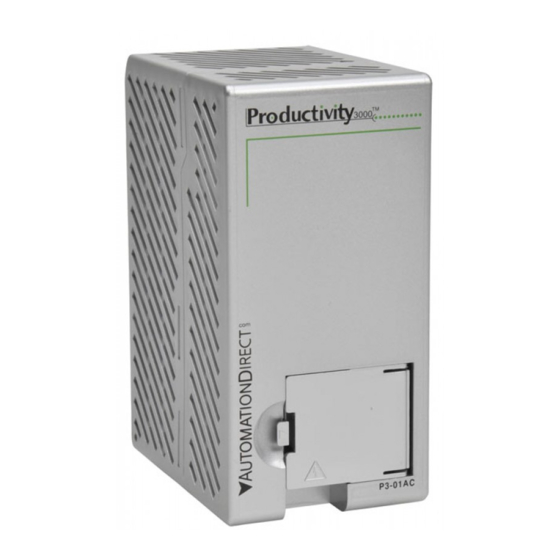

AC Input Power Supply
WARNING:
Explosion hazard – Substitution of components may
impair suitability for Class I, Division 2.
IMPORTANT!
Note: This device cannot be Hot Swapped.
tPR3-6
Productivity3000
P3-01AC

Hot-Swapping Information

® Controllers
For the latest prices, please check AutomationDirect.com.

P3-01AC User Specifications

Input Voltage Range (Tolerance)
Rated Operating Frequency
Maximum Input Power
Cold Start Inrush Current
Maximum Inrush Current (Hot Start)
Input Fuse Protection (Internal)
Efficiency
Output
Maximum Output Power
Heat Dissipation
Isolated User 24VDC Output
Output Protection for Over Current,
Over Voltage, and Over Temperature
Under Input Voltage Lock-out
Over Input Voltage Lock-out
Input Transient Protection
Operating Design Life
P3-01AC General Specifications
Operating Temperature 0°C– 60°C (32°F–140°F),
Storage Temperature -20ºC–70ºC (-4ºF–158ºF)
Humidity 5 to 95% (non-condensing)
Environmental Air No corrosive gases permitted
Vibration IEC60068-2-6 (Test Fc)
Shock IEC60068-2-27 (Test Ea)
Enclosure Type Open equipment
Voltage Withstand
1900 VDC applied for 2s
(dielectric)
Insulation Resistance
>10MV @ 500VDC
Module Location Power supply slot in any local, expansion, or remote
base in a Productivity3000
Weight 345g (12.1 oz)
Agency Approvals UL508 file E157382, Canada & USA
UL1604 file E200031, Canada & USA
CE (EN61131-2*)
This equipment is suitable for use in Class 1,
Division 2, Groups A, B, C and D or non-hazardous
locations only.
*Meets EMC and Safety requirements. See the Declaration of Conformity for details.

Terminal Block Specifications

Number of Positions 4 Screw Terminals
Pitch 0.3 inch (7.62 mm)
Wire Range 22–14 AWG (0.324 to 2.08 sq. mm) Solid Conductor
22–14 AWG (0.324 to 2.08 sq. mm) Stranded Conductor
3/64 inch (1.2 mm) insulation maximum
Screw Driver Width 1/4 inch (6.5mm) maximum
Screw Size M3 size
Screw Torque 7–9 inch-pounds (0.882 - 1.02 N·m)
100 to 240 VAC (-15% / +10%)
50 to 60 Hz with ± 5% tolerance
72W
12A 3mS
12A 3mS
Micro fuse 250V, 2A, slow blow
Non-replaceable
83%
24VDC @ 1.4 A (±10%)
5VDC @ 2.1 A (±5%)
3.3 VDC @ 6.1 A (±5%)
57W Combined
17W
None
Self resetting for all three voltage outputs
to base
55–65 VAC
265–280 VAC
Varistor, plus input choke and filter
10 years at full load at 40°C ambient and
5 years at 60°C ambient
®
System.
1 - 8 0 0 - 6 3 3 - 0 4 0 5
