Summary of Contents for Heraeus Soluva Air M10

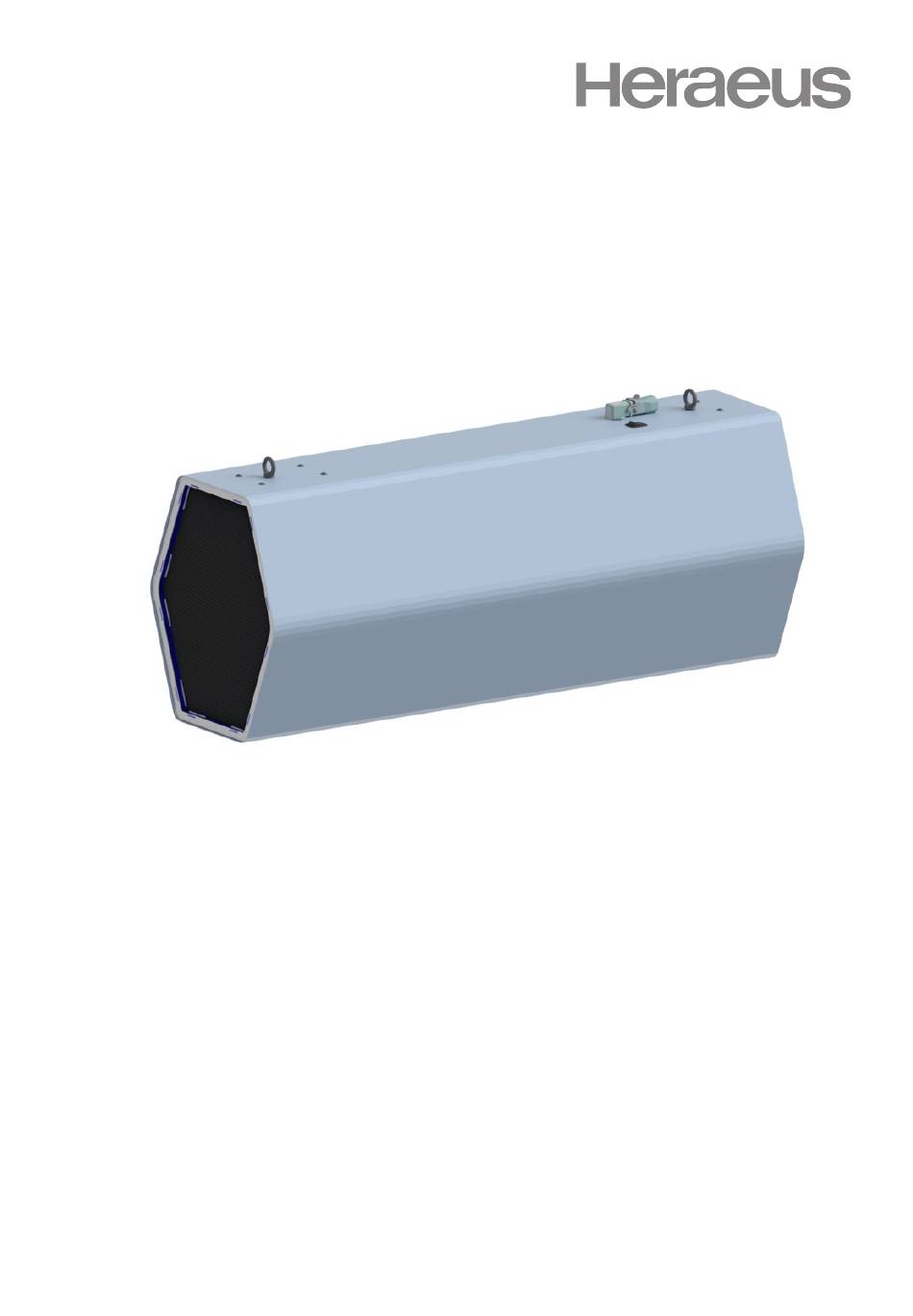

- Page 1 Heraeus Noblelight Instructions ® Soluva Air M10 UV-C Air Disinfection System Keep for future reference IPS_Man 20003302000 en 12.20...
- Page 2 ® Soluva Air M10 UV-C Air Disinfection System Page 2 of 38 IPS_Man 20003302000 en 12.20...
-
Page 3: Table Of Contents
Table of contents 1 Introduction....................1.1 Risk assessment................2 Product description................. 2.1 Intended use ..................3 Safety instructions .................. 10 3.1 List of the symbols used ..............10 3.2 Target group, personnel qualifications..........11 3.3 Basic safety instructions ..............12 4 Transport.................... -
Page 4: Introduction
Heraeus Noblelight GmbH Heraeusstraße 12-14 63450 Hanau, Germany Phone: +49 6181 35-5522 Mail: service@heraeus-soluva.com www.heraeus-noblelight.com Available language versions of the operation manual www.heraeus-noblelight.com/soluva-manuals Heraeus Noblelight GmbH retains all rights to this operation manual. Page 4 of 38 IPS_Man 20003302000 en 12.20... - Page 5 Service If you have any questions regarding repairs, spare parts, installation or initial operation, please contact our service team: ( +49 6181 35-5522 Europa/EMEA/ * service@heraeus-soluva.com Rest of world ( +1 301 990-8700 Americas * techservice.hna.uvp@heraeus.com ( +81 (0) 3/6902-6633 Japan * hng-ts.hkk@heraeus.com...
-
Page 6: Risk Assessment
è = instruction; something needs to be done 1.1 Risk assessment Heraeus Noblelight offers powerful light sources that are optimised for the spe- cific application and hence have a high ultraviolet (UV), visible (VIS) and in- frared (IR) radiation capacity, depending on lamp type, which may be a risk to the user (artificial optical radiation (AOR)). -
Page 7: Product Description
Product description ® Soluva Air M10 is a product of Heraeus Noblelight for the disinfection of air in closed rooms. This product allows dry disinfection without chemicals. The UV lamps contained in the device destroy the structure of the microorgan- isms' DNA by using highly disinfectant UV light of the wavelength 254 nm (ozone-free). - Page 8 Optimising the disinfection effect ® The disinfection effect of the Soluva Air M10 depends on good air circulation in the room. è Examples of arrangement in the room see chapter Mounting. Reduction of the risk of infection in dependence on air circulation and room size The higher the air circulation rate with disinfected air in the room, the lower the risk of infection.
-
Page 9: Intended Use
Fig. 1: Main dimensions è Additional technical data see Annex. 2.1 Intended use ® Soluva Air M10 is intended exclusively for the disinfection of ambient air in lar- ger rooms or halls with a minimum ceiling height of 3.00 m. Reasonably foreseeable misuse The following exclusions apply, among others: Do not use to expose humans or animals to radiation. -
Page 10: Safety Instructions
Safety instructions è Observe the safety instructions. ð Non-observance of the safety instructions causes hazards to per- sons, the environment and the product. More information about the handling of UV radiation is provided at www.her- aeus-noblight.com/UVSafety 3.1 List of the symbols used Various symbols are used in this operation manual to identify the remaining risks of the different hazard levels. -
Page 11: Target Group, Personnel Qualifications
Mandatory action symbols Read the instruction manual. Notes regarding optimal use. Wear hand protection. Wear safety glasses. 3.2 Target group, personnel qualifications Any work on or with the product must be carried out only by persons demon- strably qualified for the respective task. Task Qualification Transport... -
Page 12: Basic Safety Instructions
3.3 Basic safety instructions Personal protective equipment è The following personal protective equipment must be worn when handling the UV lamps (cleaning/maintenance): ð Cut-resistant gloves ð Safety goggles Explosion hazard DANGER Explosion hazard In operation, the UV lamp's surface temperature is about 100°C. The lamp electrode temperature is about 1,200°C. - Page 13 Danger to eyes and skin WARNING Ultraviolet radiation by this product This product is classified in risk group 3 (high risk) in accordance with EN 62471 (Photobiological Safety of Lamps and Lamp Systems). UV radiation damages eyes and skin. è Within the danger zone in risk group 3, prevent exposure of eyes and skin.
- Page 14 è Personnel within the danger zone must be informed accordingly and be pro- tected against the hazards. Persons must not stay within the radiation area of risk group 3. è Prior to maintenance work at the device itself or other installa- ®...
-
Page 15: Transport
Risk of burns WARNING Hot surface The lamp and surfaces exposed to radiation can get very hot during operation. The radiation heats the housing and surrounding compon- ents. Contact with the hot surface will cause burns. è Do not touch hot surfaces. è... -
Page 16: Installation
Packaging materials è We recommend storing the packaging material for later shipping or trans- port. Otherwise, dispose of in an environmentally compatible way (carton: paper/ cardboard, padding material: residual waste). Installation Selecting optimal place of installation è Consider the zones of the risk groups when positioning the device. See Fig. "Danger zone of the artificial optical radiation"... - Page 17 Ceiling Air flow >= 1,500 mm >= 1,000 mm Floor NOTICE! The shown minimum clearance to the ceiling can be obtained only by using a special suspension fixture to mount the device, which is not included in the delivery. Location within the room IPS_Man 20003302000 en 12.20 Page 17 of 38...
- Page 18 è If more than one device shall be suspended in the room, the following ar- rangement must be observed. Suspending the device è Do not use nails. è Do not use screws without suitable plugs to fasten interior devices to gypsum plasterboards, sheets of drywall, gypsum boards, tiles, plywood or similar materials.
- Page 19 Suspension points (ring bolts) è Drill appropriate holes and fasten mounting bracket 1 to the ceiling using screw 2 . Observe the mounting instructions for "fischer Betons- chrauben" [fischer concrete screws] in the Annex [} 32] (Plugs are not used, screw is screwed in directly into the borehole.) Borehole spacing (center-to-centre) 864 mm to 976 mm, depending on the orientation of the mounting brackets.
- Page 20 Observe the connection data shown on the type plate. è If an extension cable is needed, it must have the following specifications: ð 16 A ð Min. cross-section 1.5 mm è Contact Heraeus Noblelight Service if you have any questions. Page 20 of 38 IPS_Man 20003302000 en 12.20...
-
Page 21: Control
Control Operating controls outside at the device Power connection (plug-type) Maintenance switch Operating controls at the control box Control box Reset operational hours button Switching the device on è Turn the maintenance switch to On. è Switch on mains voltage. Plug the plug with earthing contact into a suitable power socket. - Page 22 1. The UV lamps are preheated, the LED strip light becomes green. 2. The UV lamps are switched on, the internal fan starts after about 90 s, the LED strip light becomes blue. The device is active, the air is disinfected. Switching the device off è...
- Page 23 Colour Status Meaning Green Perman- System is switched on. UV lamp preheating phase. Blue Perman- System is switched on. UV lamps are active. No error. Yellow Perman- System is switched on. UV lamps are active. The end of the service life of the UV lamps is near. Purple Perman- System is switched on.
-
Page 24: Maintenance
è Allow the product to cool down (approx. 10 minutes). è Wear protective gloves. Maintenance intervals The maintenance intervals are recommended by Heraeus Noblelight but may be shortened or extended depending on usage conditions. Page 24 of 38 IPS_Man 20003302000 en 12.20... - Page 25 Recommended maintenance intervals Action Interval Light protection Visual inspection for damage and Monthly grid soiling. è Clean or replace as neces- sary. UV lamps Visual inspection for soiling. Every 6 months è Clean if necessary. Suspension rope Checking of the screwed connec- Every 6 months screwed connec- tions...
- Page 26 è To pull out the side cover at a later stage, fasten two M3x70 screws (dis- mounting screws) in the light protection grid on the maintenance side (side with maintenance switch and power connection). Boreholes for this are provided. è On the maintenance side, unscrew two screws for the fastening of the cover The light protection grid is additionally secured with a ball catch and cannot drop out.
- Page 27 è Put the side cover down onto the device. The earthing cable can remain at the cover. The length is dimensioned ac- cordingly. è Disconnect the electrical plug-type connection of the UV lamps. Pull out the connector at the control box slide-in unit. The connectors of the UV lamps are colour-marked.
- Page 28 è Cautiously remove the UV lamps from the retainers. è Install the new UV lamps in reverse order. 1. Insert the UV lamps into the retainers without canting them. 2. Tighten the knurled nuts of the lamp retainers. 3. Guide the connecting cables of the UV lamps through the oblong holes. Additionally fasten the rear connecting cables outside at the reflector tube using the cable guide elements intended for the purpose.
- Page 29 For information about maintenance and repair work other than re- placement of the UV lamps see the mounting instructions enclosed with the replacement part kits. è Please contact Heraeus Noblelight Service. è Heraeus Noblelight Service è Replacement part kits [} 30] IPS_Man 20003302000 en 12.20...
-
Page 30: Replacement Parts
7.1 Replacement parts 6, 7, 8, 12 Housing 5139286 Fan module 5139290 Reflector tube 5139371 Sealing ring 5139372 Cover with honeycomb grid EPS (electronic power supply) and LEDs 5139373 5139374 LOGO! 5139375 LOGO! Power 5139376 LOGO! additional module 5139708 UV lamp kit Control box cover 5139287 Control box mounting plate Control box housing 5139288... -
Page 31: Disposal
EU WEEE (large equipment). è Do not dispose of the product as usual commercial or industrial waste. Users established in Germany may return the product to Heraeus Noblelight for disposal. Applicable to other users: Recycle the product or otherwise dispose of in accordance with the statutory regulations regarding recycling or disposal of waste electrical and electronic equipment. -
Page 32: Ec Declaration Of Conformity
EC Declaration of Conformity Heraeus Noblelight hereby declares that this product complies with the Low- voltage Directive, the EMC Directive and the RoHS Directive, and other regula- tions. The complete EU Declaration of Conformity will be provided on request. 10 Liability and quality agreement ®... - Page 33 25 - 80 % ▪ International Protection class: IP20 ▪ Nominal power: max. 1000 W ▪ Nominal voltage: 1/N/PE AC 50/60Hz 230V The copying of this document for commercial purposes prohibited unless explicitly permitted by Heraeus Noblelight. Seite / Page 1/3...
- Page 34 The copying of this document for commercial purposes prohibited unless explicitly permitted by Heraeus Noblelight. Seite / Page 2/3...
- Page 35 Product Liability Act. Heraeus Noblelight reserves the right to change drawings and technical data in this Technical Data Sheet. The latest updated version of the Technical Data Sheet is prevailing. It is within the responsibility of the customer to check whether the latest updated version of the Technical Data Sheet is available to him.
-
Page 36: Installation Instruction Fischer Concrete Screw Ultracut Fbs Ii
Installation instruction fischer concrete screw ULTRACUT FBS II fischer ULTRACUT fischer ULTRACUT FBS II US fischer ULTRACUT FBS II SK fischer connecting fischer socket nut and Torx nut hexagon FBS II ring gauge Installation according to ETA - 15 / 0352 3x d ₀... - Page 37 IPS_Man 20003302000 en 12.20 Page 37 of 38...
- Page 38 The Heraeus logo, Heraeus, and Noblelight are trademarks or registered trademarks of Heraeus Holding GmbH or its affiliates. All rights reserved. Das Heraeus Logo, Heraeus und Noblelight sind Zeichen oder eingetragene Marken der Heraeus Holding GmbH oder mit ihr verbundener Unternehmen. Alle Rechte vorbehalten.
