Summary of Contents for Vulcan-Hart NBC1T

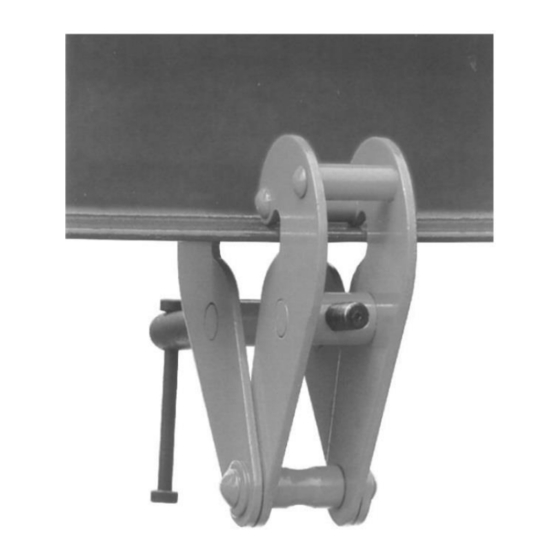

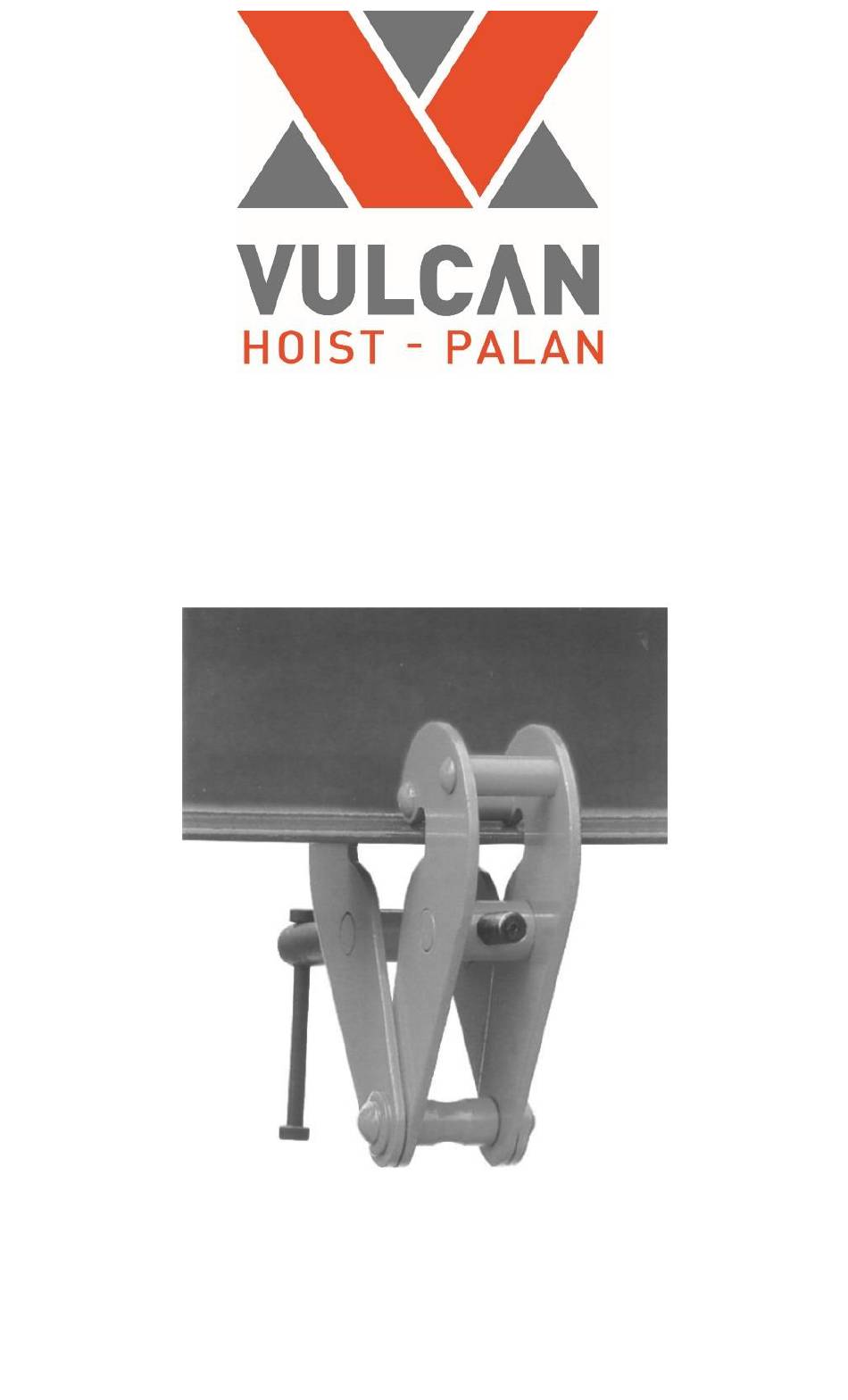

- Page 1 OPERATOR`S MANUAL NBC - Nova Beam Clamp WARNING DO NOT INSTALL, USE OR REPAIR THIS EQUIPMENT BEFORE READING THIS MANUAL IN ITS ENTIERETY. FAILURE TO READ AND FOLLOW THE INSTRUCTIONS DESCRIBED IN THIS MANUAL COULD RESULT IN SERIOUS INJURY, DEATH AND/OR MATERIAL DAMAGES...
- Page 2 WARNING All persons involved in using, inspecting, maintaining or repairing this equipment must be thoroughly familiar with the contents of this manual and follow the recommended instructions and procedures to avoid injury or property damage. WARNING The equipment described in this manual is not designed to lift or move people nor to lift or move loads over people and must therefore not be used for such means.
- Page 3 Safety and Warnings Dangerous Practices to be Avoided DO NOT use the clamp before reading the manual DO NOT let an unqualified person use or repair the clamp DO NOT exceed the rated capacity of the clamp DO NOT use the clamp to grab, secure or lift the load DO NOT use as a “below-the-hook”...
- Page 4 WARNING Use only Vulcan authorized replacement parts in the service and maintenance of this equipment. Failure to comply with the above limitations will void the warranty and may result in property damage, injury or death. Installation and Operation Operation Procedures Prior to lifting, make sure the lift can be performed safely and the lift path is clear Ensure the beam is of suitable capacity for the load and will...
- Page 5 Inspection ATTENTION The beam clamp must be inspected by the operator daily. If any deficiencies are noted, stop using the beam clamp until it is repaired or replaced. Daily Inspection Check for cracks or distortions in the structural frame, welds or mechanical components 2 Check for loose fasteners or other clamp components Verify the clamping mechanism operates properly and the...
- Page 6 Model NBC1T NBC2T NBC3T NBC5T NBC10T 2200 4400 6600 11000 22000 (lbs) Beam 2.95 2.95 3.15 3.15 3.54 width 8.66 8.66 12.60 12.60 12.60 (in) A (in) 10.24 10.24 13.94 13.94 14.37 7.09 7.09 9.25 9.25 12.60 B (in) 14.17 14.17...
- Page 7 Item Description EN Description FR Side plate Plaque de côté Stay Appui Threaded spindle support Support de tige filetée Equalizer pin Arbre-égalisateur Link cover lever handle Manche de levier fileté Screw Threaded shaft Tige filetée Thread spindle Écrou de tige filetée Levier d’opération Handle Nova Beam Clamp...
