Page 1

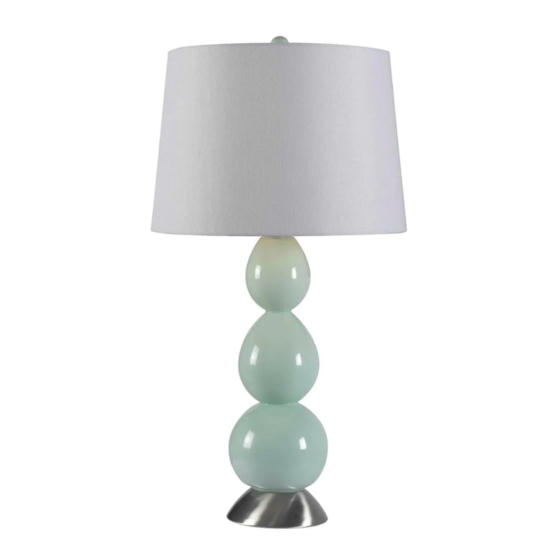

Item # 492447 Model # HDP11259 USE AND CARE GUIDE WALLA TABLE LAMP Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service 8 a.m.-6 p.m., EST, Monday-Friday 1-877-527-0313 HAMPTONBAY.COM THANK YOU We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this table lamp.
Page 2
Table of Contents Package Contents ........3 Table of Contents ......... 2 Safety Information ........ 2 Assembly ..........4 Warranty ..........2 Care and Cleaning ....... 6 Pre-Assembly ........2 Troubleshooting ........6 Planning For Successful Assembly .... 2 Safety Information IMPORTANT: Inspect the wire insulation for any cuts, abrasions, or exposed copper that may have occurred during shipping.
Page 3
Pre-Assembly (continued) PACKAGE CONTENTS Part Description Quantity Finial Washer Shade Harp Socket assembly Lamp body HAMPTONBAY.COM Please contact 1-877-527-0313 for further assistance.
Page 4
Assembly Connecting the socket assembly to the lamp body □ Pull the excess power cord through the base (F). □ Fasten the socket assembly (E) on to the lamp body (F). Connecting the harp to the socket assembly □ Squeeze the ends of the harp (D) together and insert into the prongs of the socket assembly (E).
Page 5
Assembly (continued) Installing the light bulb □ Install a 150-Watt maximum standard Type A three-way bulb (sold separately) into the socket assembly (E). NOTE: You can also use a CFL-equivalent energy-saving bulb (sold separately). Installing the shade □ Place the shade (C) onto the harp (D). □...
Page 6
Care and Cleaning □ Use a dry, soft cloth to dust or wipe carefully. □ Do not clean with chemicals, solvents, or harsh abrasives. Troubleshooting Problem Possible Cause Solution □ The bulb will not light. The bulb is burned out. Replace the light bulb.
Page 7
This page intentionally left blank HAMPTONBAY.COM Please contact 1-877-527-0313 for further assistance.
Page 8
Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service 8 a.m.-6 p.m., EST, Monday-Friday 1-877-527-0313 HAMPTONBAY.COM Retain this manual for future use.
Page 9
Artículo Núm. 492447 Modelo núm. HDP11259 GUÍA DE USO Y MANTENIMIENTO LÁMPARA DE MESA WALLA ¿Preguntas, problemas o piezas faltantes? Antes de regresar a la tienda, llama al Servicio al Cliente de Hampton Bay de 8 a.m. a 6 p.m., Hora estándar del Este, de Lunes a Viernes 1-877-527-0313 HAMPTONBAY.COM...
Page 10
Índice Contenido del Paquete ....... 3 Índice ............2 Información de Seguridad ....2 Ensamblaje ..........4 Garantía ..........2 Mantenimiento y Limpieza ....6 Preensamblado ........2 Solución de problemas ......6 Planificar un Ensamblado Exitoso ....2 ...
Page 11
Preensamblado (continuación) CONTENIDO DEL PAQUETE Pieza Descripción Cantidad Remate Arandela Pantalla Arpa Ensamblado del portabombilla Cuerpo de la lámpara HAMPTONBAY.COM Para obtener asistencia, llama al 1-877-527-0313.
Page 12
Ensamblaje Cómo conectar el ensamblado del portabombilla al cuerpo de la lámpara. Hala el cable eléctrico sobrante a través de la □ base (F). Fija el ensamblado del portabombilla (E) al cuerpo □ de la lámpara (F). Cómo conectar el arpa al ensamblado del portabombilla.
Page 13
Ensamblaje (continuación) Instalar las bombillas Instala una bombilla Tipo A estándar de hasta 150 □ Vatios (vendida por separado) en el ensamblado del portabombilla (E). NOTA:Puedes usar también una bombilla ahorradora CFL equivalente (vendidas por separado). Instalar la pantalla Monta la pantalla (C) sobre el arpa (D). □...
Page 14
Mantenimiento y Limpieza Usa un paño suave y seco para desempolvar o limpiar con cuidado. □ No uses limpiadores con químicos, solventes, o productos abrasivos. □ Solución de problemas Problema Causa Posible Solución La bombilla no enciende. La bombilla está fundida. □...
Page 15
Esta página se ha dejado en blanco a propósito. HAMPTONBAY.COM Para obtener asistencia, llama al 1-877-527-0313.
Page 16
¿Preguntas, problemas o piezas faltantes? Antes de regresar a la tienda, llama al Servicio al Cliente de Hampton Bay de 8 a.m. a 6 p.m., Hora estándar del Este, de Lunes a Viernes 1-877-527-0313 HAMPTONBAY.COM Conserva este manual para referencias futuras.
Page 17
Article n° 492447 Modèle N° HDP11259 GUIDE D'UTILISATION ET D'ENTRETIEN LAMPE DE TABLE WALLA Questions, problèmes, pièces manquantes? Avant de retourner au magasin, veuillez communiquer avec le service à la clientèle Hampton Bay entre 8 h et 18 h, HNE, du lundi au vendredi 1 877 527-0313 HAMPTONBAY.COM...
Table des matières Contenu de l'emballage ......3 Table des matières ........2 Consignes de sécurité ......2 Assemblage ........... 4 Garantie ..........2 Entretien et nettoyage ......6 Prémontage ...........2 Dépannage ..........6 Pour un assemblage réussi ......2 ...
Prémontage (suite) CONTENU DE L'EMBALLAGE Pièce Description Quantité Faîteau Rondelle Abat-jour Lyre Douille Corps de lampe HAMPTONBAY.COM Veuillez composer le 1 877 527-0313 pour une assistance supplémentaire.
Assemblage Monter la douille sur le corps de lampe Tirez l'excédent de cordon d'alimentation à □ travers le corps de lampe (F). Serrez la douille (E) sur le corps de lampe (F). □ Monter la lyre sur la douille Pressez les extrémités de la lyre (D) l'une vers □...
Page 21
Assemblage (suite) Installer l'ampoule Installez une ampoule standard à trois voies de □ type A de 150 watts maximum (vendue séparément) dans la douille (E). REMARQUE :Vous pouvez également utiliser une ampoule fluocompacte éconergétique équivalente (vendue séparément). Pose de l'abat-jour Installez l'abat-jour (C) sur la lyre (D).
Entretien et nettoyage Utilisez un linge doux et sec pour épousseter ou essuyer avec soin. □ Ne nettoyez pas avec des produits chimiques, des solvants ou des abrasifs corrosifs. □ Dépannage Problème Cause possible Solution L’ampoule ne s’allume pas. L’ampoule est grillée. □...
Page 23
Cette page a été intentionnellement laissée blanche HAMPTONBAY.COM Veuillez composer le 1 877 527-0313 pour une assistance supplémentaire.
Page 24
Questions, problèmes, pièces manquantes? Avant de retourner au magasin, veuillez communiquer avec le service à la clientèle Hampton Bay entre 8 h et 18 h, HNE, du lundi au vendredi 1 877 527-0313 HAMPTONBAY.COM Conservez ce guide pour un usage ultérieur.
