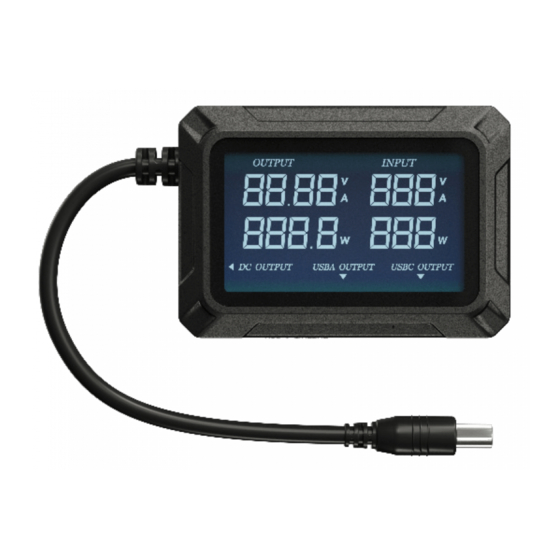

Nitecore SPM10 User Manual

Features

• Multifunctional Solar Power Meter
• Compatible with solar panels with 7.9*5.5mm DC
port or Anderson port
• LCD display to monitor the real-time information
on current, voltage and power of each port
• DC output available to charge power stations with
a max current of 10A
• USB-A and USB-C output ports with a max power
of 18W, compatible with smartphones and low
current devices including wireless headphones,
wearables and more
• Made from durable and fire retardant PC materials

Specifications

Input Ports DC, Anderson
Output Ports DC, USB-A, USB-C
INPUT1 / INPUT2 9~24V 10A
⎓
DC Output 9~24V 10A
⎓
USB-A Output 5V
3A / 9V
USB-C Output 5V
3A / 9V
75mm x 52.5mm x 26mm
Dimensions (2.95" x 2.07" x 1.02")
(DC Output Cable Not Included)
Weight: 97g (3.42oz)
Output Voltage
Output Current
Output Power

Operating Instructions

Connect the product to the solar panel via either
input port, and to the power station or/and other
external devices via the output port(s) to begin the
charging process. The LCD display will show the real-
time information of each port including current,
voltage and power. Press the button to cycle through
the info display of each port.

Warnings

1. Please read the user manual carefully before
using the product.
2. Please connect the applicable external devices
only according to the specifications in this user
manual.
3. The product may reboot or have an unstable
output when the input power is insufficient.
Therefore, it is recommended not to use the
product in the weak sunlight.
4. Ambient Temperature of Usage: -10~40°C
(14~104°F); Temperature of Storage: -20~60°C
(-4~140°F)
5. Stop using the product at any sign of malfunction.
⎓ ⎓
⎓ ⎓
2A / 12V 1.5A
2A / 12V 1.5A
Input Voltage
Input Current
Input Power
Thanks for purchasing NITECORE!
SPM10
6. DO NOT mix solar panels of different brands to
avoid mutual interference.
7. The product is designed for adults. Use of the
product by kids under age must be under
supervision. Operation, using or cleaning of the
product may NOT be done by kids aged 8 years
or younger.
8. Store the device in ventilated areas. DO NOT
expose the device in rain or moist environment.
9. Avoid any shock or impact to the device.
10. DO NOT disassemble or modify the device as
doing so will render the product warranty invalid.

Warranty Details

Our authorized dealers and distributors are
responsible for warranty service. Should any problem
covered under warranty occurs, customers can
contact their dealers or distributors in regards to
their warranty claims, as long as the product was
purchased from an authorized dealer or distributor.
NITECORE's Warranty is provided only for products
purchased from an authorized source. This applies to
all NITECORE products.
Any DOA / defective product can be exchanged
for a replacement through a local distributor/dealer
within the 15 days of purchase. After 15 days, all
defective / malfunctioning NITECORE® products can
be repaired free of charge for a period of 12 months
(1 year) from the date of purchase. Beyond 12
months (1 year), a limited warranty applies, covering
the cost of labor and maintenance, but not the cost
of accessories or replacement parts.
The warranty is nullified if the product(s) is/are:
1. broken down, reconstructed and/or modified by
unauthorized parties
2. damaged from wrong operations
For the latest information on NITECORE® products
and services, please contact a local NITECORE®
distributor or send an email to service@nitecore.com.
※ All images, text and statements specified herein
this user manual are for reference purpose only.
Should any discrepancy occur between this
manual and information specified on www.
nitecore.com, information on our official website
shall prevail. SYSMAX Innovations Co., Ltd. reserves
the rights to interpret and amend the content of
this document at any time without prior notice.
