DR. BENDER
GmbH
Innovative Power Tools
Operating Manual

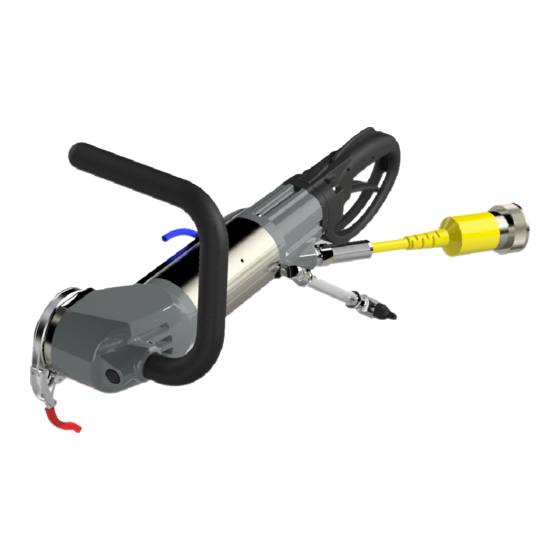

SXM-V
Drive unit
HF III
Art no.:
201185
Issued 05.2017
Subject to change
Alle Rechte vorbehalten / All rights reserved
DR. BENDER
GmbH • D-75382 Althengstett •
Tel 07051-9291-0 • Fax 07051-9291-91
We are on the internet at http://www.dr-bender.de
info@dr-bender.de
• email:
Advertisement
Table of Contents
Summary of Contents for DR. BENDER SXM-V
- Page 1 DR. BENDER GmbH Innovative Power Tools Operating Manual SXM-V Drive unit HF III Art no.: 201185 Issued 05.2017 Subject to change Alle Rechte vorbehalten / All rights reserved DR. BENDER GmbH • D-75382 Althengstett • Tel 07051-9291-0 • Fax 07051-9291-91 We are on the internet at http://www.dr-bender.de...
-
Page 2: Declaration Of Conformity
EN 50144-1 EN 50144-2-1 EN 55014-1 EN 61000-3-2 EN 61000-3-3 EN 55014-2 EN 61029-1 Authorised Person for Documentation: Min Wei c/o Dr. Bender GmbH Industriestrasse 22 75382 Althengstett Deutschland DR.BENDER GmbH Althengstett, 30.07.2018 Industriestraße 22 D-75382 Althengstett Tel. 07051/9291-0, Fax 07051/9291-91 Min Wei, Managing Director This Declaration does not include Assurance of Product Properties. -
Page 3: Table Of Contents
Saw blades and drill bits Safety instructions Repair and maintenance Daily maintenance Quarterly Speed setting depending on cutting speed Warranty 10.0 General Safety Instructions 11.0 Spare parts lists 11.1 Drive unit SXM-V 11.2 Motor complete 11.3 Gear complete 11.4 Handle complete... -
Page 4: Symbol And Pictogram Description
Attention The safety instructions included in this operating manual must be followed! Custom models and design variants may deviate from the basic type in technical details. In the event of any discrepancies, we recommend that you contact DR.BENDER GmbH urgently. Always give the machine type and machine number in any correspondence. Symbol and pictograph description Warning Indicates instructions which may endanger your health or the functionality of the unit if... - Page 5 Safety signs on the machine Wear safety shoes Wear gloves Wear a safety helmet Wear protective goggles Wear ear protection Wear a breathing mask Pull the power plug before work on the device Read the instructions...
-
Page 6: Function Description
Function description Safety gate Lock button for rear handle On /off switch Quick release coupling Lock button for front handle... -
Page 7: General Instructions
General instructions Technical description The BELUGA SXM-V represents a whole new generation of drive units for stone cutting. The exception- ally comprehensive modular system offers the flexibility needed today when performing cutting work in con- crete and stone. To achieve this, newly developed high-frequency motor parts are used in the motor. The frequency range is controlled by the frequency converter from 0 - 1000 Hz integrated into the Powerbox. -
Page 8: Applications
Further to this, the Beluga SXM-V has a completely redeveloped overload- coupling that transfers the supplied torque through a statically sealed wall. Thus there is no need for the contact seal that has previously been required. This drastically increases the service life of the entire machine and the maintenance intervals are significantly longer. -
Page 9: Transport And Storage
Transport and storage Transport Warning The drive units must be inspected for transport damage after receipt. Any damage present must be recorded in writing. Storage The storage location should be dry, clean, and at a constant temperature wherever possible. In order that the lubrication film in the bearings and the seal systems does not separate, the drive shaft should be turned several times manually after a lengthy storage period, e.g. -
Page 10: Main Dimensions And Technical Data
< 2.5 Operating temperatures If the system is sufficiently cooled, the Beluga SXM-V attains to the cooling water temperature. The plastic housing of the hand operated Beluga SXM-V attains temperatures of up to 35°C. Therefore, hold the machine with the handles provided. -
Page 11: Commissioning
Attention: If possible, do not exceed a maximum water pressure of 3 bar. The Beluga SXM-V drive unit is water-cooled. During operation, always supply sufficient cold cooling water (cooling water should not exceed 30 °C). The machine must be operated during full load operation with at least 1/2 litre of water per minute. -
Page 12: Handle Adjustment
Handle adjustment The Beluga SXM-V drive unit is a completely redeveloped unit with many integrated features such as: individual handle adjustment front and rear. As specified by the professional association, do not overstretch. Avoid any abnormal posture. Make sure you have a firm stance and keep your balance at all times”. -
Page 13: Cleaning / Changing The Handle
5.4 Quick release coupling The Beluga SXM-V drive unit is fitted with a quick release coupling that allows the different attachments to be changed very easily and quickly. The red clip must be open. -
Page 14: Saw Blades And Drill Bits
Saw blades and drill bits You can use any saw blade with a connection bore of 1“ ( 25,4 mm) . Only use saw blades that are suitable for the stone type. Using only concentric saw blades that are not deformed prolongs the service life of the drive unit. -
Page 15: Repair And Maintenance
Repair and maintenance Warning Always disconnect from the mains before starting repair or maintenance work. After any repair, the unit must be checked by a qualified electrician (legal requirement pursuant to VBG4 since 1.1.1990). Daily maintenance Check that no water is leaking out of the unit. This may impair the electrical safety of the unit and lead to damage to the gearbox. -
Page 16: Warranty
Warranty Pursuant to our Terms & Conditions of Sale, we offer a warranty of 12 months from the date of purchase. This covers the free repair of material and production defects which are shown to have been caused prior to sale. An original sales receipt must always be produced when asserting a warranty claim. -
Page 17: Spare Parts Lists
11.0 Spare parts lists 11.1 Drive unit SXM-V Item Part no. Description 201185 Drive unit SXM-V 301993 Motor complete 302260 Gear complete 301915 Handle complete Wearing parts **... -
Page 18: Motor Complete
11.2 Motor complete... - Page 19 Item Part no. Description 301993 Motor complete 302025 Motor housing 802022 Stator 301994 Rotor complete 901305 Groove ball bearing 1 ** 901060 Snap ring 1 ** 402014 Ring 802931 O-ring 5 ** 801231 O-ring 2 ** 201116 Bearing cap 800100 O-ring 1 ** 800391...
-
Page 20: Gear Complete
11.3 Gear complete... - Page 21 Item Part no. Description 302260 Gear complete 201134 Gear housing complete 900608 Parallel key 901360 Shim ring 402023 Bushing 901194 Needle bushing 1 ** 301966 Gear shaft 900061 Groove ball bearing 1 ** 901094 Snap ring 1 ** 900125 Shaft key 301965 Clutch wheel 901302...
-
Page 22: Handle Complete
11.4 Handle complete Item Part no. Description 301915 Handle complete 102344 Handle 901325 Dowel pin 102345 Lever 802522 Magnet 802805 Compression spring 900077 Dowel pin 102347 Catch mechanism 901261 Dowel pin 102348 Spring bracket 802722 Compression spring 102346 Lock 802562 Compression spring 102349 Clamping ring...
