DR. BENDER
Innovative Power Tools
Operating Manual
Sawing accessories
HF III
Issued 10.2018
Alle Rechte vorbehalten / All rights reserved
DR. BENDER
We are on the internet at http://www.dr-bender.de
GmbH
Art. No.
Art. No.
Art. No.
Art. No.
GmbH • D-75382 Althengstett • Tel 07051-9291-0 •
SQUATINA
KOGIA
ESPADA
102255 ESPADA
102249 KOGIA
102248 SQUARTINA
102251 SQUARTINA B
info@dr-bender.de
• email:
Subject to change
Fax 07051-9291-91
Advertisement
Table of Contents
Summary of Contents for DR. BENDER SQUATINA
- Page 1 DR. BENDER GmbH Innovative Power Tools Operating Manual SQUATINA Sawing accessories KOGIA HF III ESPADA Issued 10.2018 Art. No. 102255 ESPADA Subject to change Art. No. 102249 KOGIA Art. No. 102248 SQUARTINA Art. No. 102251 SQUARTINA B Alle Rechte vorbehalten / All rights reserved DR.
-
Page 2: Table Of Contents
Applications Transport and storage Transport Storage Main dimensions and technical data Dimensions 4.1.1 Squatina Full blade guard attachment 4.1.2 Squatina Flush cut blade guard attachment 4.1.3 Kogia attachment 4.1.4 Espada attachment Technical data 4.2.1 Squatina full blade guard attachment 4.2.2 Squatina flush cut blade guard attachment 4.2.3... -
Page 3: Symbol And Pictogram Description
Attention The safety instructions included in this operating manual must be followed! Custom models and design variants may deviate from the basic type in technical details. In the event of any discrepancies, we recommend that you contact DR.BENDER GmbH urgently. Always state the machine type and the machine number in any correspondence. - Page 4 Safety signs on the machine Wear safety shoes Wear gloves Wear a safety helmet Wear protective goggles Wear ear protection Wear a breathing mask Pull the power plug before work on the device Read the instructions...
-
Page 5: Function Description
Ring saw KOGIA Friction wheel Chain saw ESPADA adjustment screw Machine socket quick Blade release system Chain Squatina saw full blade guard Chain tension adjustment screw Ring saw blade Squatina saw flush cut blade guard Saw blade for flush cutting... -
Page 6: General Instructions
Applications All attachments can be used with drive units, which are fitted with the DR. BENDER quick release system. If you are using custom-built machines, the details on the quotation and the order confirmation also apply. -
Page 7: Main Dimensions And Technical Data
Main dimensions and technical data Dimensions 4.1.1 Squatina Full blade guard attachment 4.2.1 Squatina flush cut blade guard attachment... -
Page 8: Kogia Attachment
4.1.3 KOGIA attachment 4.1.4 ESPADA attachment... -
Page 9: Technical Data
Air / Water Saw blade holder diameter 1 (25.4 mm) “ Max. depth of cut Weight 4.2.2 SQUATINA flush cut blade guard attachment Maximum saw blade diameter Cooling medium Air / Water Saw blade holder diameter 1 (25.4 mm) “... -
Page 10: Commissioning
SW27 spanner. SQUATINA Flush cut blade guard attachment 5.2.1 Saw blade change Proceed as described above in 5.1.1, but loosen or tighten the 6 hex socket countersunk head screws... -
Page 11: Kogia Attachment
KOGIA attachment 5.3.1 Ring saw blade change / adjustment 1. Remove the ring saw blade from the friction wheel / clamp. Fully release the clamping nut (item 39) by turning anticlockwise in order to remove the ring 301625 Clamping nut saw blade from the friction roller. - Page 12 4. Replace the friction wheel Loosen both Allen head screws with the SW 13 Allen key (item 79). To do so, lock the two-hole spanner (item 95) on the flange to hold it down. If the friction wheel is worn, it must be replaced.
-
Page 13: Fitting The Optional Guide Plate
7. Replace the support and the guide rollers Loosen the support rollers (item 63) and the guide rollers (item 44). The edges of the rollers that engage the ring saw blade must be sharp. If this is not the case, they must be replaced. 301528 Guide roller Item 44 301533 support roller... -
Page 14: Espada Attachment

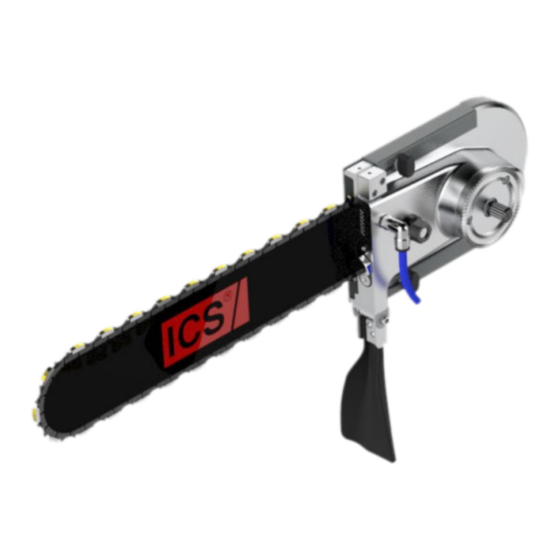

ESPADA attachment 5.4.1 Chain / blade change Remove the side guard by loosening the two wing screws (1) on the console. Loosen the hex nut (2) in the centre of the console until it can be turned by hand. Turn the clamping screw (3) anticlockwise until the blade bears against the drive wheel. -
Page 15: Cutting Speed When Sawing
Cutting speed when sawing The Squatina 400 may operate with a max. saw blade Ø of 400 mm Squatina 400 blade Ø with SXM V 2830 min-1 300 mm 45 m/s 350 mm 52 m/s 400 mm 60 m/s The Kogia 400 may operate with a max. ring saw blade Ø of 400 mm Kogia blade Ø... -
Page 16: Spare Parts Lists
Spare parts lists SQUATINA Full blade guard attachment... - Page 17 Item Part no. Description 102248 Attachment SQUATINA 400 complete 101353 Guard complete 100276 Guard 401452 900302 Allen head screw 901126 Hex socket countersunk head screw 301705 Rotor WSS 102194 Rotor housing 900000 Groove ball bearing 1 ** 801368 Snap ring...
-
Page 18: Squatina Flush Cut Blade Guard Attachment
SQUATINA Flush cut blade guard attachment... - Page 19 Item Part no. Description 102251 Attachment Squatina 400 flush cut complete 101757 Guard complete 102372 Guard 401452 900302 Allen head screw 901126 Hex socket countersunk head screw 301703 Rotor WS BS 102194 Rotor housing 900000 Groove ball bearing 1 **...
-
Page 20: Kogia Attachment
KOGIA attachment... - Page 21 Item Part no. Description 401791 Bushing 102249 Kogia attachment 400 complete 401792 Bushing 102260 Chassis complete 401728 Shaft sleeve 102182 Ring saw blade 1 ** 301753 Worm gear complete 901158 Groove ball bearing 1 ** 301629 Eccentric shaft 900218 Snap ring 301737 301900 Output gear...
-
Page 22: Espada Attachment
ESPADA attachment... - Page 23 Item Part no. Description 102255 Espada console 102254 Console 902085 Groove ball bearing 1 ** 301881 Spindle 900202 Snap ring 801573 Axial bearing washer 2 ** 900800 Axial needle roller and cage assembly 1 ** 900038 Needle bushing 1 ** 301712 Drive shaft 900127...
