About this manual

This manual is a reference guide for operating the Ranger RIDE system. It assumes that all

equipment is installed and configured, and that the system is ready to use. Some functions

are boat configuration dependent and images used in this manual might not exactly

match the screen on your unit.

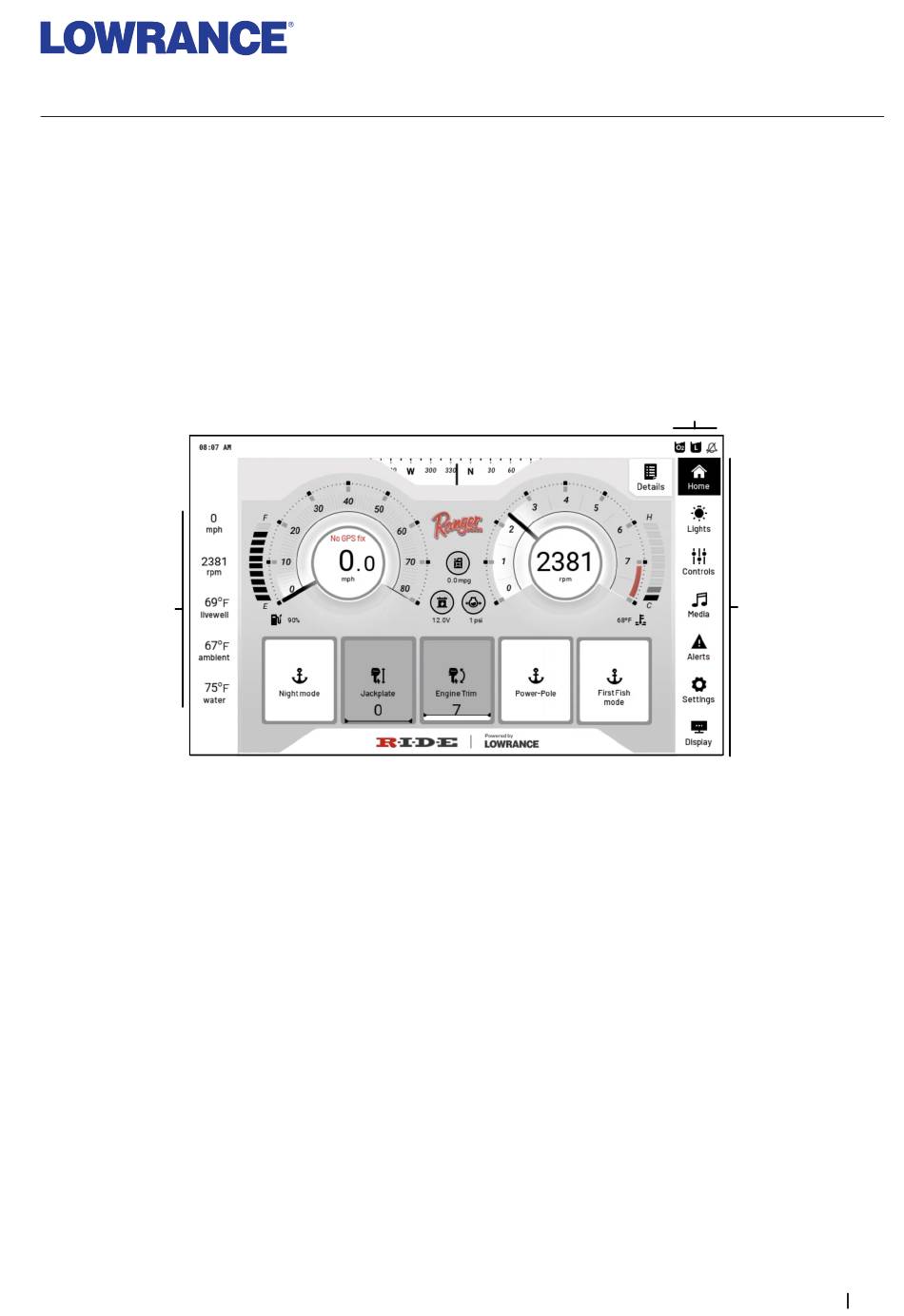

Overview

When the system is started the home screen is displayed.

A. Information bar

B. Status bar - indicates which functions/lights are active.

C. Menu bar – Used to navigate features and system options.

Ranger RIDE

Quick Guide

Ranger RIDE - Quick guide

Table of Contents

Need help?

Do you have a question about the Ranger RIDE and is the answer not in the manual?

Questions and answers

Summary of Contents for Lowrance Ranger RIDE

Page 1 Quick Guide About this manual This manual is a reference guide for operating the Ranger RIDE system. It assumes that all equipment is installed and configured, and that the system is ready to use. Some functions are boat configuration dependent and images used in this manual might not exactly match the screen on your unit.
Page 2 Anchor light remains on and the Courtesy light comes back on. If installed, the option deck LED lights will also turn of with the navigation lights and return to their current setting when the navigation lights turn off. Ranger RIDE - Quick guide...
Page 3 D. Bilge pumps – Turns the Bilge pumps ON or OFF. E. User defined buttons for optional accessories. ¼ Note: If the light icon is selected for a user defined button, the button moves to the light page. Ranger RIDE - Quick guide...
Page 4 B. Current value in % And some functions do have more than 2 modes (ON/OFF), this is indicated by a drop- down arrow to the right of the status text. Press the status text to access all modes. Ranger RIDE - Quick guide...
Page 5 Function is turned ON. Fault (Red) The fuse and/or relay is broken. Bypass (Orange) DDS 1 fuse for the function is in the bypass position. Auto On (Green) Activated by external equipment, e.g. a float switch. Ranger RIDE - Quick guide...
Page 6 B. Active Alarms button – Opens a list with all the active alarms. C. Alarm history button – Opens a list with a history of all alarms. D. RIDE Diagnostic – Opens the diagnostics page, used for fault finding. E. Page specific button(s): Ranger RIDE - Quick guide...
Page 7 A. DDS - If you get a DDS error, the faulty fuse/channel is indicated. B. FOB/Bow Keypad - Any fault condition is indicated. C. Mosfet Trip - Press the Mosfet trip button to open the Mosfet page. From that page you can reset each Mosfet channel individually. Ranger RIDE - Quick guide...
Page 8 RIDE screen and the pairing button on the FOB to be paired. • If you need to replace your FOB, press the FORGET ALL FOBs AND ENTER PARING MODE button on the RIDE screen and the pairing button on the FOB to be paired. Ranger RIDE - Quick guide...
Page 9 C. Night - Changes the display to a night pallet. D. Lock - Locks the screen to make it non responsive to touch except a small area in the top right of the display. E. Brightness – Adjusts the screen brightness *988-12823-001* Ranger RIDE - Quick guide...
