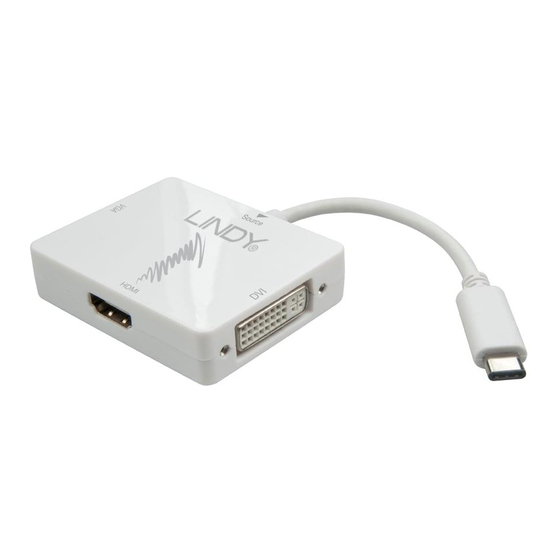

Usb 3.1 type c to hdmi/dvi/vga adapter

Advertisement

Quick Links

USB 3.1 Type C to
HDMI/DVI/VGA Adapter
User Manual
Benutzerhandbuch
Manuel Utilisateur
Manuale d'uso
Hersteller / Manufacturer (EU):
LINDY Electronics Ltd.
LINDY-Elektronik GmbH
Sadler Forster Way
Markircher Str. 20
Teesside Industrial Estate, Thornaby
68229 Mannheim
Stockton-on-Tees, TS17 9JY
GERMANY
United Kingdom
Email: info@lindy.com ,
postmaster@lindy.co.uk
T: 0049 (0)621 470050
T: 0044 (0) 1642 754000
No. 43233
For Home and Office Use
www.LINDY.com
Tested to Comply with FCC Standards
© LINDY Group - FIRST EDITION (FEB 2017)
English Manual

Introduction

Thank you for purchasing the USB 3.1 Type C to
HDMI/DVI/VGA Adapter. This product has been designed to
provide trouble free, reliable operation. It benefits from both a
LINDY 2 year warranty and free lifetime technical support. To
ensure correct use, please read this manual carefully and retain
it for future reference.
This USB 3.1 Type C to HDMI/DVI/VGA Adapter allows you to
English
connect an HDMI, DVI or VGA monitor to your computer with a
Deutsch
USB Type C connector with support for DisplayPort Alternate
Français
Mode.
Italiano

Package Contents

LINDY USB 3.1 Type C to HDMI/DVI/VGA Adapter
This Manual

Features

Compatible with all USB & Thunderbolt Type C equipped
computers with DisplayPort Alternate Mode
Input: USB 3.1 Type C connector - male
Output: HDMI / DVI / VGA female (no simultaneous use)
Max. resolution: 3840 x 2160 30Hz (HDMI), 1920 x 1200
60Hz (DVI), 1920 x 1200 60Hz (VGA)
Chipsets: PS171 & PS8617
Powered via USB port, no external PSU port
Installation & Operation
The DisplayPort Alternate Mode on the USB Type-C connector
standard uses the USB C connector as video output without the
need for additional drivers or software.
Connect the USB 3.1 Type C connector of the adapter to the
USB 3.1 Type C socket of your computer and the HDMI, DVI or
VGA socket of the adapter to the HDMI, DVI or VGA connector
of your monitor using an appropriate male to male cable (not
included).
Deutsches Benutzerhandbuch
Einführung
Wir freuen uns, dass Ihre Wahl auf ein LINDY-Produkt
gefallen ist und danken Ihnen für Ihr Vertrauen. Sie können
sich jederzeit auf unsere Produkte und einen guten Service
verlassen. Dieser USB Typ C an HDMI/DVI/VGA Adapter
unterliegt einer LINDY Herstellergarantie von 2 Jahren und
lebenslangem kostenlosen technischen Support. Bitte lesen
Sie diese Anleitung sorgfältig und bewahren Sie sie auf.
Dieser USB 3.1 Typ C HDMI 4K60 UHD Adapter ermöglicht
den Anschluss eines Monitors an einen Computer mit dem
neuen USB Typ C Anschluss, der den DisplayPort Alternate
Mode unterstützt.
Lieferumfang
LINDY USB 3.1 Typ C an HDMI/DVI/VGA Adapter
Dieses Handbuch
Eigenschaften
Kompatibel mit allen Computern mit USB & Thunderbolt
Typ C Anschluss mit DisplayPort Alternate Mode-
Unterstützung
Eingang: USB 3.1 Typ C Stecker
Ausgang: HDMI / DVI / VGA Buchse (keine simultane
Nutzung der Monitore möglich)
Maximale Auflösung: 3840 x 2160 30Hz (HDMI), 1920 x
1200 60Hz (DVI), 1920 x 1200 60Hz (VGA)
Chipsätze: PS171 / PS8617
Stromversorgung über den USB Port (kein Anschluss für
externes Netzteil)
Installation & Betrieb
Der DisplayPort Alternate Mode verwendet den USB Typ C
Anschluss als Videoausgang, eine Installation von Treibern ist
daher nicht erforderlich.
Stecken Sie den USB 3.1 Typ C Stecker des Adapters in die
USB 3.1 Typ C Buchse Ihres Computers und verbinden Sie
den HDMI-Anschluss des Adapters mit dem Ihres Monitors.
Dazu benötigen Sie ein Monitorkabel (HDMI/DVI oder VGA)
Stecker – Stecker (nicht enthalten), welches im Allgemeinen
Ihrem Monitor beiliegt.
