Summary of Contents for German Light Products Startube 4 HiRes

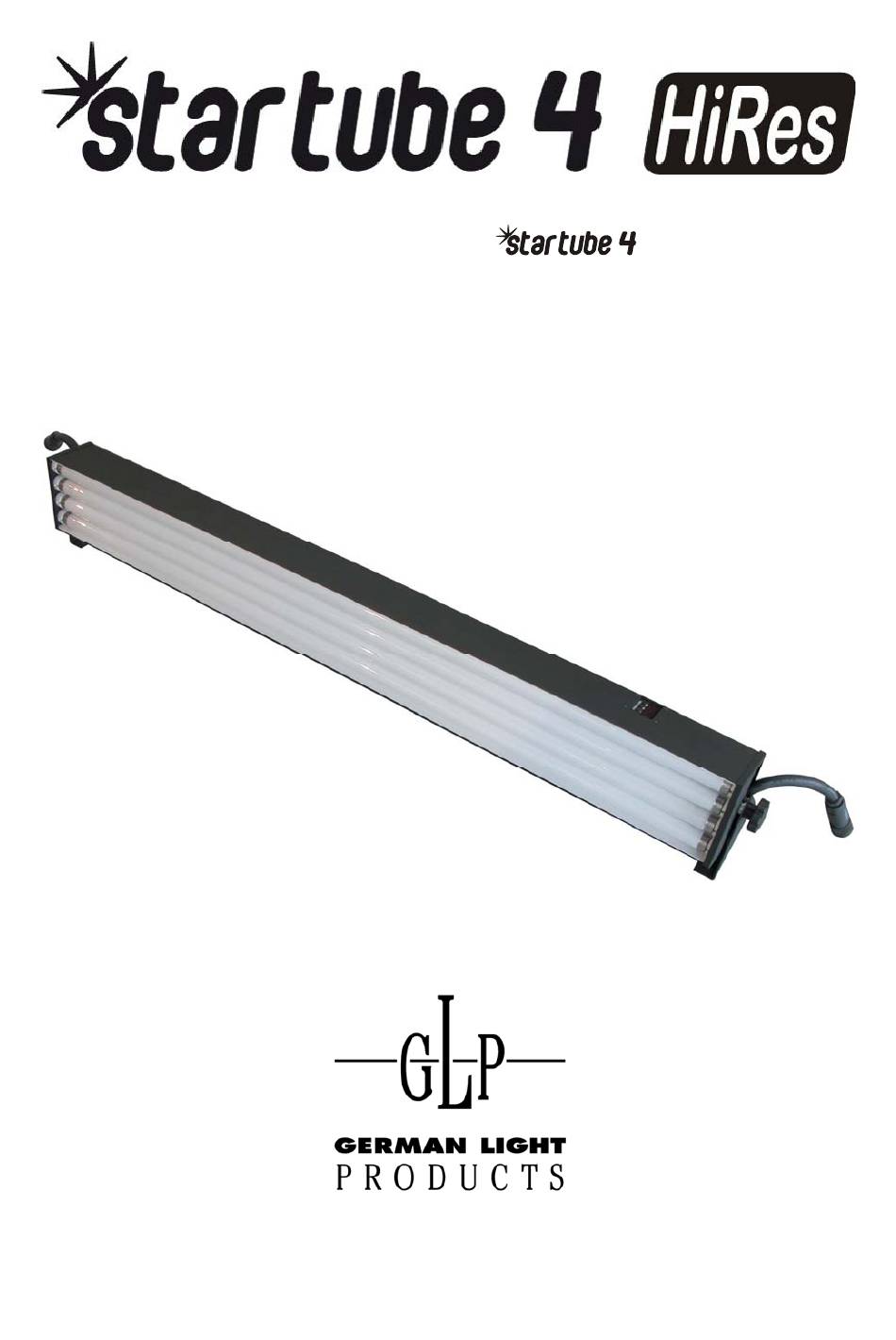

- Page 1 Instruction Manual from software version 4.1 (Instruction version 1.1) Email: service@glp.de Internet: http://www.glp.de...
-
Page 2: Table Of Contents
Operating ................... 7 Maintenance / Tube change ............. 8 Technical Specification ..............8 Startube 4 HiRes ..................8 Assembly and dimensions ................ 9 General view ....................9 Accessory: Splitter .............. -
Page 3: Description Of Device And Functions
16A phase. Integrated threaded bushes M10 for a clamp, a CAMLOC quick-lock-system, a fitting for a safety rope and the removable feet simplifying the handling within the tour exercise. GLP • German Light Products GmbH Version 1.1... -
Page 4: Safety Instructions
7. The installation should be done by qualified staff only. You need to pay attention to the common rules of technology that are not explicit mentioned in this manual. 8. Use only original spare parts. Any structural modification will cancel all warran- ty adjustments. GLP • German Light Products GmbH Version 1.1... -
Page 5: Preparation And Installation
DMX signal, differently manufactured cables are available as accessories. During mounting and dismounting, the system must be disconnected from the mains supply. Otherwise the connectors can by damaged! GLP • German Light Products GmbH Version 1.1... -
Page 6: Adjust The Dmx- Address
Channel 7 = superior dimmer Example: In Four-channel-mode In Seven-channel-mode DMX Channel 001 no. 1 DMX Channel 001 DMX Channel 005 no. 2 DMX Channel 008 DMX Channel 009 no. 3 DMX Channel 015 GLP • German Light Products GmbH Version 1.1... -
Page 7: Channel Configuration And Operation Mode
After this period the system should operate smooth. If you have still those flickering and glowing effects at DMX value 000, please turn around the main plug at the r by 180° (zero-lead and phase exchange). GLP • German Light Products GmbH Version 1.1... -
Page 8: Maintenance / Tube Change
4 DMX channels each 0-100% dimming max. ambient temperature 45°C Dimensions WxLxH 1237mm x 133mm x 104mm (with mounted feet +65mm) Weight 11 kg CAMLOC- quick-lock-systems Connecting system over multi-core cables and Splitter system GLP • German Light Products GmbH Version 1.1... -
Page 9: Assembly And Dimensions
5.2 Assembly and dimensions 4x M10 1237 1302 5.3 General view GLP • German Light Products GmbH Version 1.1... -
Page 10: Accessory: Splitter
5.4 Accessory: Splitter GLP • German Light Products GmbH Version 1.1... - Page 11 GLP • German Light Products GmbH Version 1.1...
