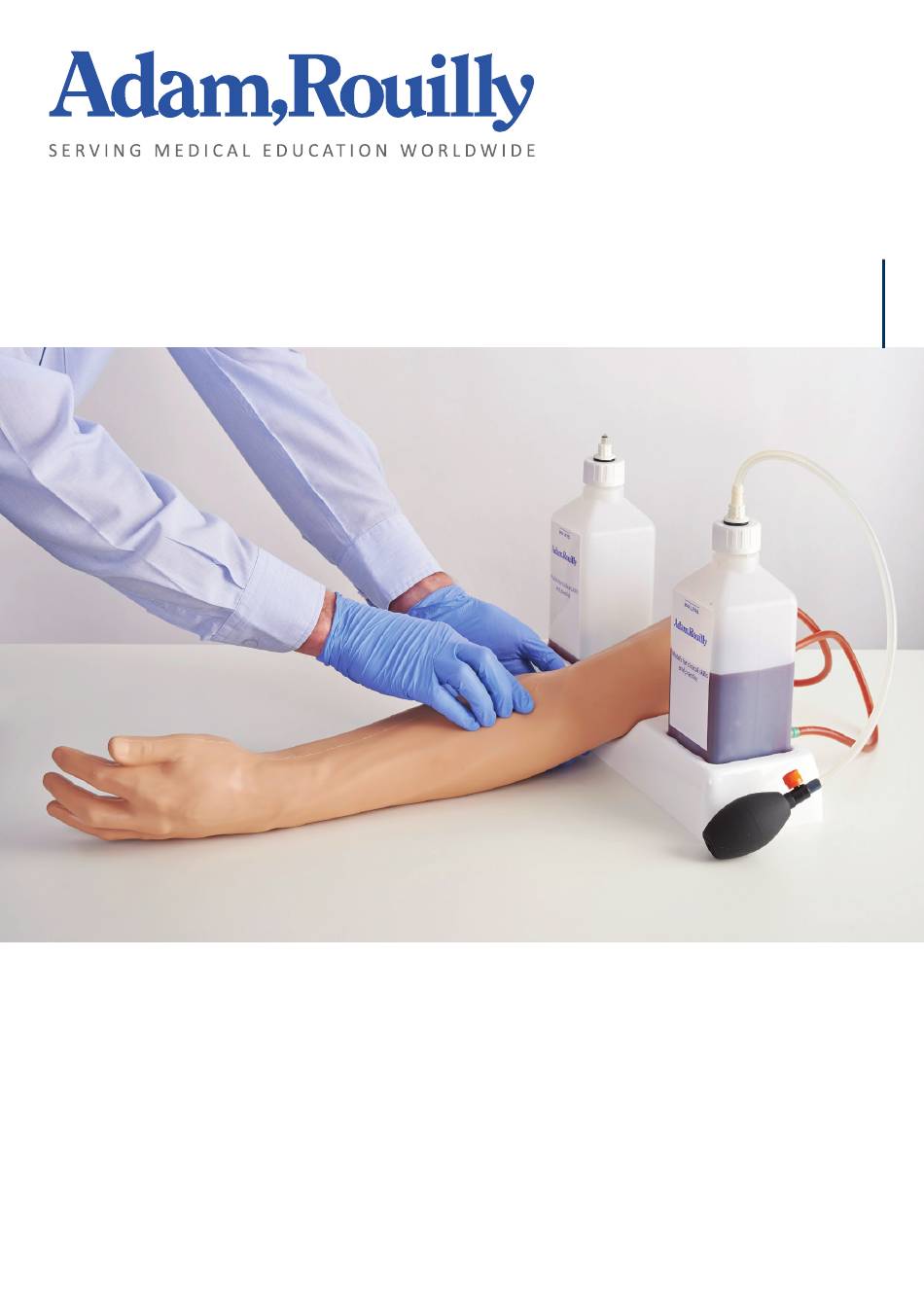

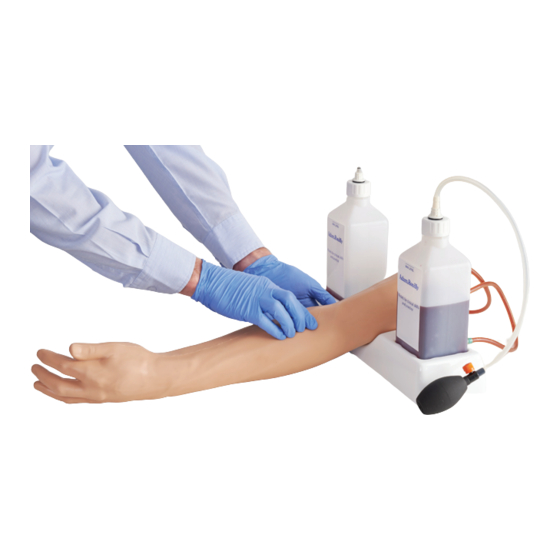

- Page 1 AR253/AR253-B SKIN AND VEIN KIT Instruction Manual...
- Page 2 Thank you for purchasing this AR253/AR253-B Skin and Vein Kit for our AR251/AR251-B Venepuncture and Infusion Arm. Please read this instruction manual carefully and retain it for future reference. Safety and Precautions The veins in this arm contain natural latex which may cause an allergic reaction to some individuals.
- Page 3 Parts Arm skin Lubricant spray Latex vein Scan the QR code to access the product video. https://youtu.be/or1dsIFGunA...
- Page 4 Replacing the Skin and Veins...
- Page 5 Remove the Old Skin The veins in this arm contain natural latex which may cause an allergic reaction to some individuals. If a reaction occurs, discontinue use immediately and seek medical advice. 1. Remove the Old Skin and Vein System Detach the white end cap from the shoulder of the arm and pull off from the two veins completely.
- Page 6 Removing the Fingers (for Arm Cores with Fingers) 3.1a 3.1b...
- Page 7 Remove the Old Vein System and Cut off the Fingers This step is for arm core hands with fingers Remove the old vein system from the core by carefully removing it from the 3.1a channel in the arm core. Using a sharp knife or scissors, cut the fingers off close to the knuckles of the hand.
- Page 8 Inserting the New Vein (for Arm Cores with a Single Vein Loop) 3.2a 3.2b 3.2c...
- Page 9 Install the new Vein System This step is for arm core hands with fingers (now removed) This step is for arm core hands with a single vein loop Remove the old vein system from the core by carefully removing it from the 3.2a channel in the arm core.
- Page 10 Inserting the New Vein (for Arm Cores with Two Vein Loops) 3.3a...
- Page 11 1. Remove the Old Skin and Vein System This step is for arm cores with two vein loops Remove the old vein system from the core by carefully removing it from the 3.3a channels in the arm core. Be sure to remove the veins carefully from tunnels so that the core is not damaged.
- Page 12 Inserting the New Vein (for Arm Cores with Two Vein Loops) 3.3c 3.3d 3.3e 3.3f...
- Page 13 2. Insert the New Vein System (Continued) With the back of the core facing you, loop the first half vein around the right 3.3c channel in the back of the hand and down the arm to tunnel 3.3d Insert the vein through tunnel 3.3e Loop the other half of the vein around the left channel in the back of the hand.
- Page 14 Installing the New Arm Skin (for All Arm Cores)
- Page 15 3. Installing the New Arm Skin This step is for all arm cores. Apply the supplied lubricant liberally down the inside of the new skin and work it down by rubbing sides together. Please observe the warnings on the lubricant label. With the end of the arm core facing you, slide the arm core over the hand end of the core, all the way to the shoulder.
- Page 16 2 Year Guarantee All products manufactured by Adam,Rouilly are covered by our full 2 Year Guarantee. This guarantee applies to models which have been used correctly and covers durability and functionality. As part of our policy of continual product development, the specification of products may alter without prior notice.
