Drive Series

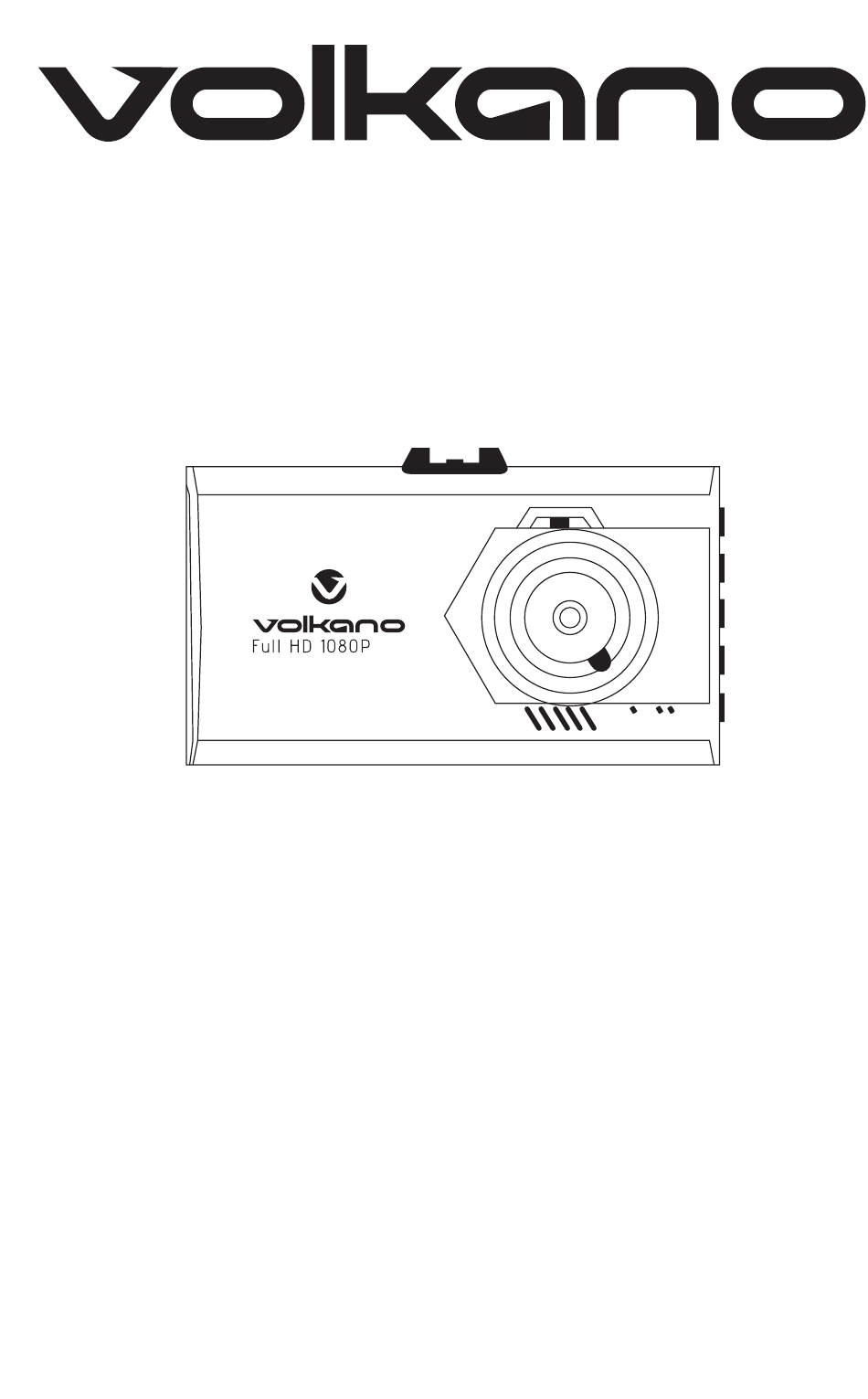

USER MANUAL
Please read and retain these
instructions for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Drive Series and is the answer not in the manual?

Questions and answers

Related Manuals for volkano Drive Series

Summary of Contents for volkano Drive Series

  • Page 1 Drive Series USER MANUAL Please read and retain these instructions for future reference.

  • Page 2: Specifications

    THE HIGHLIGHTS: - Vehicle Windscreen mounted camera for recording video and sound while driving – Full HD 1080 Resolution. - Still Photo camera using the rechargeable battery - Up to 12MegaPixel. - Motion detection. - G-Sensor automatically locks video in the event of a collision.

  • Page 3: Description Of Parts

    DESCRIPTION OF PARTS: 1. Micro SD Card slot 2. Menu UP button 3. MENU / MODE button; Tap button – Enters MENU mode / Hold button – Changes Video/Still/Playback mode 4. Menu DOWN button 5. Microphone 6. RESET – Resets the Dash Cam to default 7.
  • Page 4 We recommend the use of a high speed (Class 6 or higher) Memory Card for best results. Your Volkano Dash Cam will operate with memory cards up to 32GB in size. To insert the memory card, ensure the Dash Cam is...
  • Page 5 FITTING YOUR VOLKANO DASH CAM Attach the windscreen mount to the top of the Dash Cam by sliding it into place and then tightening the locking nut. Do not over-tighten the nut or angle adjusting mechanism. To attach the suction cup to the windscreen, flip the...
  • Page 6 OPERATING YOUR DASH CAM: 1. Charging: A. Using the built-in rechargeable lithium battery: Charging options: 1. Connect it to the vehicle 12V outlet using the supplied charger. 2. Connect it to a 5V USB charger or a computer or power bank. - To indicate the unit is charging, the indicator light on the top right of the Dash Cam will change from blue to red.
  • Page 7 2. Functions This Dash Cam has three Modes: - Video Recording - Still Photo - Playback To switch between modes, simply press and hold the MODE button for 3 seconds. A. Video Recording Mode: After turning on, the Dash Cam enters Video Mode automatically.

  • Page 8: Video Settings Menu

    D. Delete / Protect Function: When in Playback mode press the MENU button to open the menu. Select the file you wish to delete or lock using the menu UP and menu DOWN buttons. Press the MENU button and follow the instructions and confirmation to delete or protect the file.
  • Page 9 Options are: 1080FHD (1920 x 1080) / 1080p (1440 x 1080) / 720p (1280 x 720 HD) / WVGA (848 x 480) / VGA (640 x 480). 2. Loop Recording: This selects the length of time of each video clip. Use the setting most convenient for Playback and storage purposes.
  • Page 10 The higher the setting, the more force is required to activate this feature. Options are: Off / 2G /4G / 8G. 8. LDW: These are additional settings for selection of fine-tuning your Dash Cam. Options are: On / Off ; when Off, the Dash Cam will automatically select the default settings.
  • Page 11 Options are: Off / 1 minute / 3 minutes. 4. Screen Saver: This will select a time period after which the LCD display will switch off to conserve power. Your recording will continue even when the screen is off. Options are: Off / 3 minutes / 5 minutes / 10 minutes.
  • Page 12 STILL PHOTO MENU: When in Still Photo mode, you can press the MENU button briefly to access the Still Photo Menu. 1. Resolution: This selects the size and resolution of the Still Photo the Dash Cam will take. A higher resolution will give a clearer image, but uses more Memory Card space.

  • Page 13: Playback Menu

    8. Anti-Shake: This compensates for movement of the camera when taking a photo, but will reduce resolution slightly. Options are: Off / On 9. Quick Review: This will display the photo on the LCD screen for a few seconds immediately after the photo is taken.

  • Page 14: Additional Notes

    ADDITIONAL NOTES: - The POWER button doubles as the day / night mode button. A short press of the POWER button changes the camera from day to night mode and activates the Dash Cam Nightlight LEDs. - The Menu UP button doubles as the Audio MUTE function.

  • Page 15: Safety Precautions

    - Micro SD cards have a limited lifespan and if your Dash Cam fails to record or is recording intermittently, first try formatting the Memory Card or if not successful, you may need to replace the Memory Card. SAFETY PRECAUTIONS: - The product may only be used with the parts provided by the manufacturer.

  • Page 16: Additional Warnings

    Extreme caution must be exercised. - Children should be supervised to ensure that they do not play with the appliance. Packaging must never be left within reach of children, since it is potentially dangerous. - Store in the original box in a cool, dry place out of the reach of children.

  • Page 17: Environmentally-Friendly Disposal

    ENVIRONMENTALLY FRIENDLY DISPOSAL: Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities. Contact your local government for information regarding the collection systems available. If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and wellbeing.
