Summary of Contents for Matchmaster 34MM-IRKIT-W

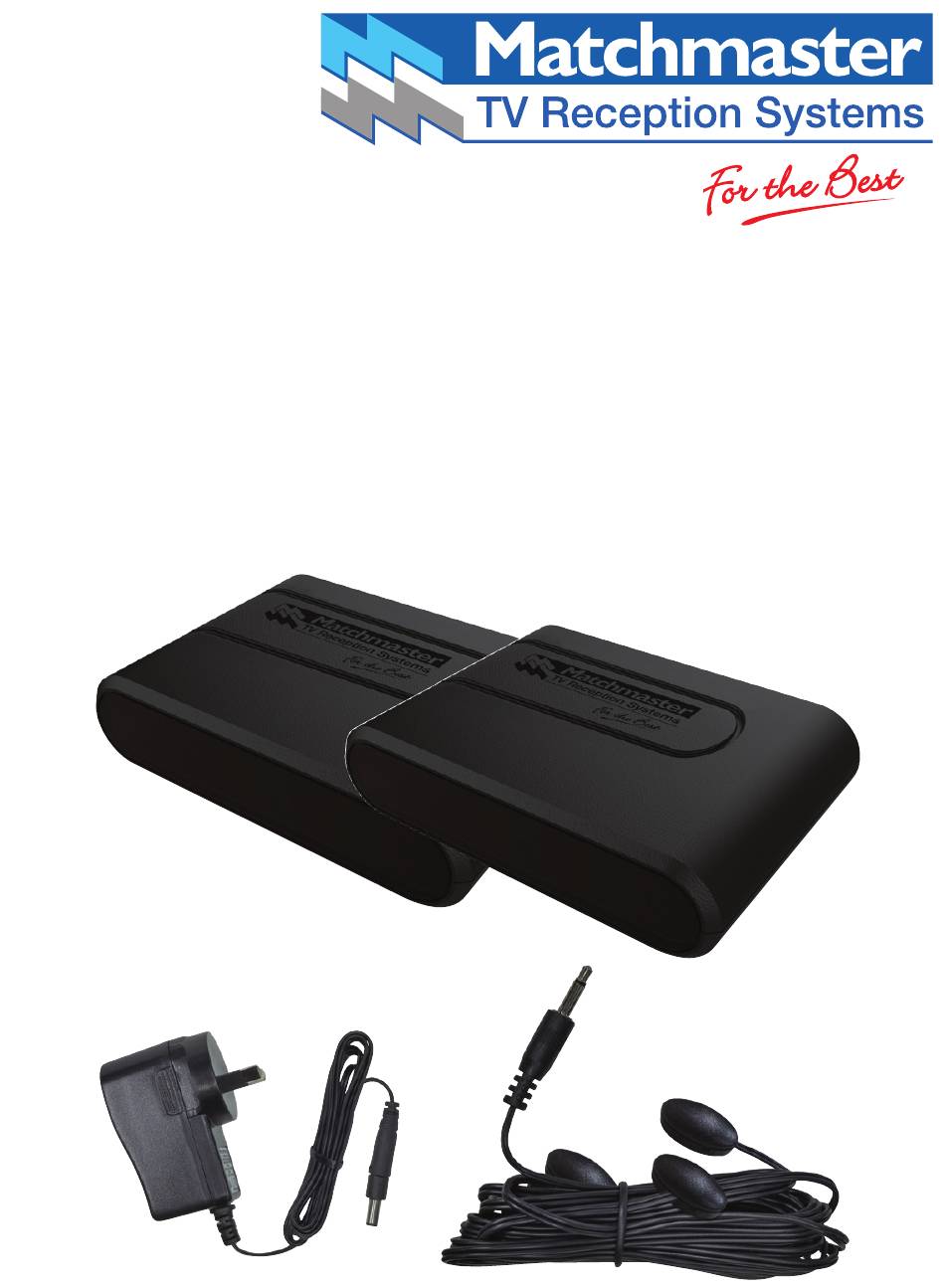

- Page 1 34MM-IRKIT-W Wireless IR Remote Control Extender Kit QUICK GUIDE...
-
Page 2: Important Safety Precautions
Important-Safety Precautions To prevent fire or shock hazard, do not expose this product to rain or moisture. Do not use near water. To avoid electrical shock, do not open this product. The power supply must be of the same voltage as the local area. Do not overload wall outlets and extension cords as this can result in the risk of fire or electrical shock. - Page 3 A. Checking Contents of Box Check to ensure all of the components shown as below are included with your wireless IR remote control extender system. If something is missing, please contact your dealer as soon as possible. 1 x Transmitter 1 x Receiver 1 x IR extender connected to receiver’s rear panel...
-
Page 4: Using The Device
B. Using the Device 1. The supplied power supply or exact equivalent must be used with the device. 2. Be sure the transmitter and the receiver are connected to power supplies. 3. In some situations where two or more devices are being used within 50m of each other at the same time some interference to operation may occur. - Page 5 C. Panel Controls and Features of System The following illustrations show the names of each component on the transmitter and receiver. TRANSMITTER AND RECEIVER FRONT VIEW Remote control window. The infrared passes through this to remotely control the source. REAR VIEW...
- Page 6 D. How to Use the IR Remote Control Extender This IR remote control extender will give you the ability to control the source remotely using your existing remote control. It converts the infrared (IR) signal emitted by your remote control to a radio frequency (RF) signal in the UHF band at the transmitter and sends it back to the receiver where the RF signal is converted back to the original IR signal for the audio/video source.
- Page 7 How To Use The IR Extender Accessory The IR extender accessory connects to the receiver through its own special connector plug. The extender accessory emits an IR signal, blasting your A/V equipment with the remote signal. To use the IR extender accessory, follow the instructions below: 1.
-
Page 8: Troubleshooting, Care And Maintenance
E. Troubleshooting, Care and Maintenance Please read this owner’s manual carefully and follow the steps described in it. If you still have difficulties, consult the following table. It will guide you through the most common problems and their solutions. Problem Possible Solution Remote control Check the path between the receiver and... -
Page 9: Specifications
9VDC / 600mA Dimension 72mm x 50mm x 18mm Weight System: Operation temperature range 0°C~50°C Remote control range Up to 50m All specification subject to change without notice AU Technical Support 1800-AERIAL 237425 www.matchmaster.com.au NZ Technical Support 0800-AERIAL 237425 www.matchmaster.co.nz...
