ASR1200E ASR1200E-D
ASR1200E ASR1200E-D

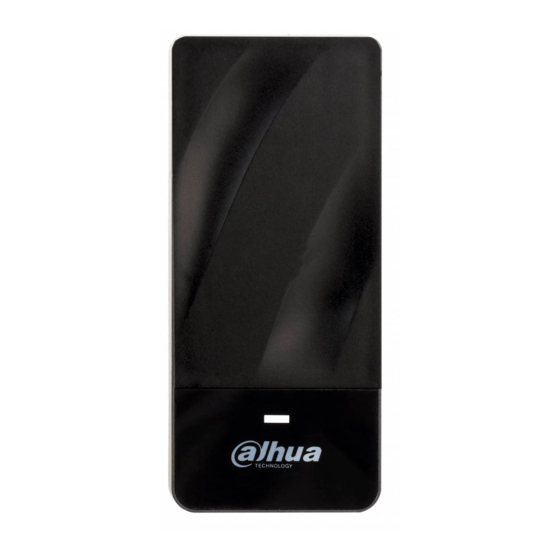

Water-proof RFID Reader
Overview
The reader support wiegand, it means you can integrate it with the third party controllers.
Certainly, any Dahua access controller can connect to the reader by using wiegand or RS485.
For RS485, it support 100m distance when power supply from controller. If power supply
separate, it can extend to 1000m. The slim and water-proof design can make it used in any
environment.
Features
· Wiegand34(26 optional) bits RS-485 protocol
· 13.56MHz(Mifare)
· 125KHz(EM-ID)
· Water-proof design
· Red, blue and green indicator LEDs
· Surface mounted installation
© 2016 Dahua . All rights reserved. Design and specifications are subject to change without notice
Rev 001.001
Wiegand / RS485
IP67
Wiegand / RS485
www.dahuasecurity.com
Connect to third party controller
·
by wiegand protocol;
RS485 support longer distance;
·
IP67
Outdoor use;
·
Advertisement
Table of Contents
Related Manuals for Dahua Technology ASR1200E
Summary of Contents for Dahua Technology ASR1200E
- Page 1 ASR1200E ASR1200E-D ASR1200E ASR1200E-D Water-proof RFID Reader Connect to third party controller · by wiegand protocol; RS485 support longer distance; · IP67 Wiegand / RS485 Outdoor use; · IP67 Wiegand / RS485 Overview The reader support wiegand, it means you can integrate it with the third party controllers.
- Page 2 AWG 24, twisted-pair cable; RS485: 1000m; Wiegand: 40m; Power: 100m; Power: 100m; LED cable control the reader buzzer and LED light; Dimensions Technical Specification Mode ASR1200E ASR1200E-D System Main Processor 8 Bit Read Read Format 13.56MHz 125KHz Read Range 3-6cm (max.) Reading time <0.1s...
