GridBee GF1250PWc
Owner's Manual
©2021 IXOM Watercare Inc. | www.ixomwatercare.com | 866 - 437 - 8076 | watercare@ixom.com
O&M_GF1250PWc_10110_20210922

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GridBee GF1250PWc and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for IXOM GridBee GF1250PWc

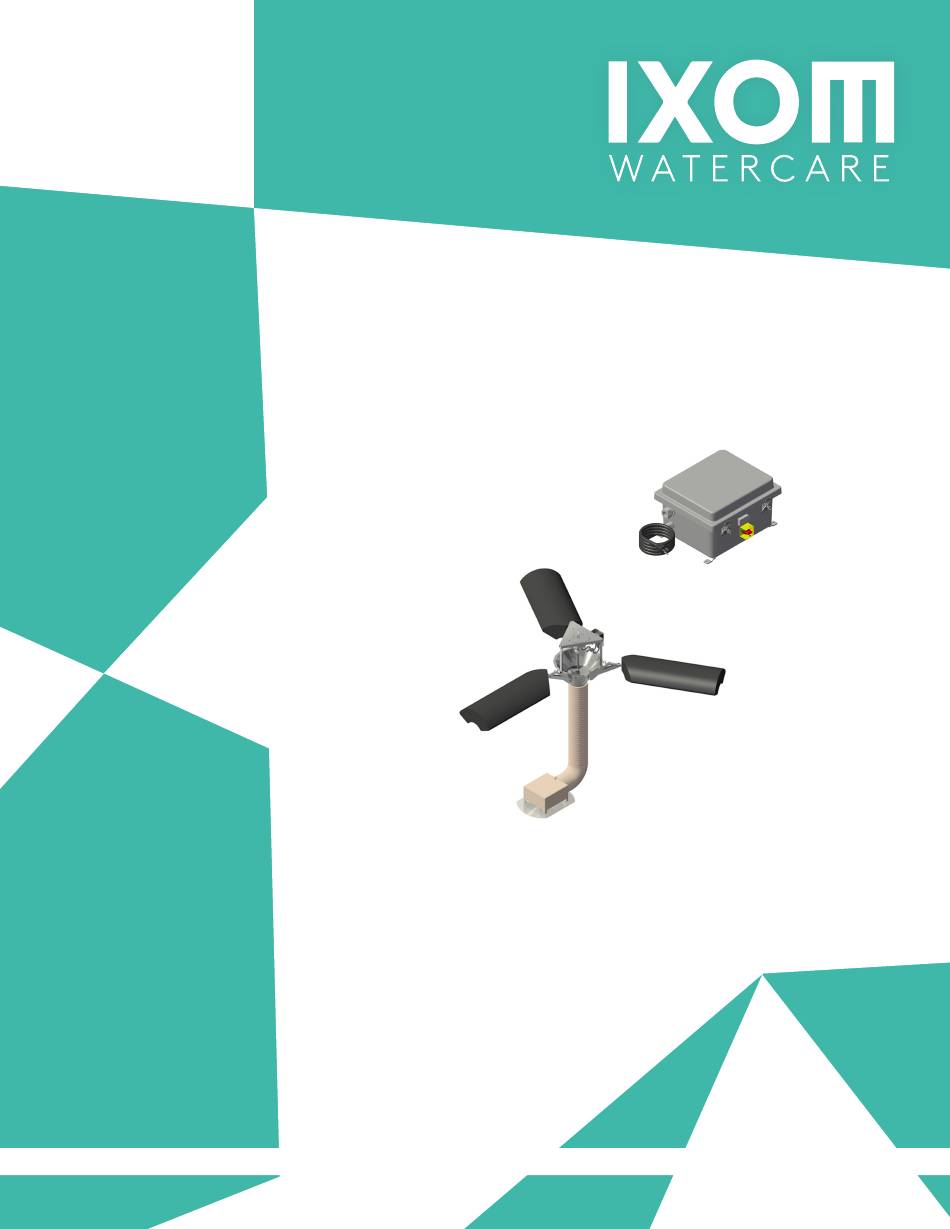

  • Page 1 GridBee GF1250PWc Owner's Manual ©2021 IXOM Watercare Inc. | www.ixomwatercare.com | 866 - 437 - 8076 | watercare@ixom.com O&M_GF1250PWc_10110_20210922...

  • Page 2: Table Of Contents

    Table of Contents GridBee GF1250PWc Owner's Manual Safety Operation Features Maintenance Electrical Troubleshooting Parts Diagram Dimension Drawing Appendix Technical Specifications Warranty Customer Service ©2021 IXOM Watercare Inc. | www.ixomwatercare.com | 866 - 437 - 8076 | watercare@ixom.com 10014_20210413 O&M_GF1250PWc_10110_20210922...

  • Page 3: Safety

    Most accidents can be avoided by using common sense and concentration on the job being done. Carefully read safety information when you see any safety symbols. ©2021 IXOM Watercare Inc. | www.ixomwatercare.com | 866 - 437 - 8076 | watercare@ixom.com 1949_10036_20210428 O&M_GF1250PWc_10110_20210922 - 1...
  • Page 4 CAUTION: EDGES MAY BE SHARP AND CAUSE WARNING: ICE SURROUNDING MACHINE MAY LACERATION IF PROPER CARE IS NOT USED. NOT SUPPORT WEIGHT, KEEP CLEAR OF THIN ICE. ©2021 IXOM Watercare Inc. | www.ixomwatercare.com | 866 - 437 - 8076 | watercare@ixom.com 1949_10036_20210428 O&M_GF1250PWc_10110_20210922 - 2...
  • Page 5 "OFF" position. The On/Off switch is to be their own safety and health programs approved by OSHA. used as the emergency stop. ©2021 IXOM Watercare Inc. | www.ixomwatercare.com | 866 - 437 - 8076 | watercare@ixom.com 1949_10036_20210428 O&M_GF1250PWc_10110_20210922 - 3...

  • Page 6: Operation

    The motor and impeller is designed to operate at the same full speed as the solar-powered SolarBee models. Flow Coming Off Distribution Dish ©2021 IXOM Watercare Inc. | www.ixomwatercare.com | 866 - 437 - 8076 | watercare@ixom.com 10181_20210806 O&M_GF1250PWc_10110_20210922 - 4...
  • Page 7 STEP 2: Attach the Float Arm Assembly to the Dish Assembly with provided bolts and nylock nuts. (See Figure 3 & 4) STEP 3: Repeat STEPS 1 and 2 for the other two floats. ©2021 IXOM Watercare Inc. | www.ixomwatercare.com | 866 - 437 - 8076 | watercare@ixom.com 10312_20210810 O&M_GF1250PWc_10110_20210922 - 5...
  • Page 8 STEP 3: On the other end of the hose place the other hose clamp over the end. Fasten hose to the intake box past the metal rib of the flange and tighten hose clamp to firmly secure hose. (See Figure 7 & 8) ©2021 IXOM Watercare Inc. | www.ixomwatercare.com | 866 - 437 - 8076 | watercare@ixom.com 10312_20210810...
  • Page 9 Small Frame Assembly SB/GF1250PWc SB/GF1250PWc Assembly Assembly Diagram MACHINE FULLY ASSEMBLED ©2021 IXOM Watercare Inc. | www.ixomwatercare.com | 866 - 437 - 8076 | watercare@ixom.com 10312_20210810 O&M_GF1250PWc_10110_20210922 - 7...

  • Page 10: Features

    This is the primary reason for having the motor controller located directly on the GridBee. Motor Control Cord ©2021 IXOM Watercare Inc. | www.ixomwatercare.com | 866 - 437 - 8076 | watercare@ixom.com 10289_20210806 O&M_GF1250PWc_10110_20210922 - 8...
  • Page 11 The rotating assembly (motor, shaft coupling, impeller shaft, impeller) can be removed from the machine without disconnecting the shaft coupling. Brushless Motor With Shaft Coupling Attached ©2021 IXOM Watercare Inc. | www.ixomwatercare.com | 866 - 437 - 8076 | watercare@ixom.com 10289_20210806 O&M_GF1250PWc_10110_20210922 - 9...
  • Page 12 The impeller bushing is a smooth collar that the impeller shaft tip fits into. The impeller bushing aligns and centers the impeller shaft within the Impeller machine Bushing Impeller Hub ©2021 IXOM Watercare Inc. | www.ixomwatercare.com | 866 - 437 - 8076 | watercare@ixom.com 10289_20210806 O&M_GF1250PWc_10110_20210922 - 10...
  • Page 13 Intake of place. The machine naturally has a very small torque due to impeller rotation. Hose With Bend Keeping Intake Stationary ©2021 IXOM Watercare Inc. | www.ixomwatercare.com | 866 - 437 - 8076 | watercare@ixom.com 10289_20210806 O&M_GF1250PWc_10110_20210922 - 11...
  • Page 14 Release Tube - The release tubes are constructed of stainless steel. They directly connect the floats to the central machine structure. Float Release Float Tube Tube Release Channel ©2021 IXOM Watercare Inc. | www.ixomwatercare.com | 866 - 437 - 8076 | watercare@ixom.com 10289_20210806 O&M_GF1250PWc_10110_20210922 - 12...
  • Page 15 RELIEVE THE FORCES ON THE FLOAT ASSEMBLY STRUCTURES PRIOR TO DISASSEMBLY! FAILURE TO FOLLOW THIS WARNING COULD LEAD TO SINKING THE GridBee, SERIOUS INJURY! ©2021 IXOM Watercare Inc. | www.ixomwatercare.com | 866 - 437 - 8076 | watercare@ixom.com 10289_20210806 O&M_GF1250PWc_10110_20210922 - 13...

  • Page 16: Maintenance

    To completely power down the digital controller, remove all power sources in the proper sequence. DIGITAL CONTROLLER ©2021 IXOM Watercare Inc. | www.ixomwatercare.com | 866 - 437 - 8076 | watercare@ixom.com 10237_20210729 O&M_GF1250PWc_10110_20210922 - 14...
  • Page 17 ASSEMBLY STRUCTURES PRIOR TO DISASSEMBLY! FAILURE TO FOLLOW THIS WARNING COULD LEAD TO SINKING THE MACHINE, OR CAUSE SERIOUS INJURY! Large Frame Machines ©2021 IXOM Watercare Inc. | www.ixomwatercare.com | 866 - 437 - 8076 | watercare@ixom.com 10415_20210730 O&M_GF1250PWc_10110_20210922 - 15...
  • Page 18 Water Level Refer to table upper left. ©2021 IXOM Watercare Inc. | www.ixomwatercare.com | 866 - 437 - 8076 | watercare@ixom.com 10414_20210730 O&M_GF1250PWc_10110_20210922 - 16...
  • Page 19 Minute (RPM) # Seconds Expired RPM = (30 revolutions X 60) / (30 seconds) = 60 Impeller Rotational Speed = 60 RPMs ©2021 IXOM Watercare Inc. | www.ixomwatercare.com | 866 - 437 - 8076 | watercare@ixom.com 10413_20210727 O&M_GF1250PWc_10110_20210922 - 17...
  • Page 20 GLOVES AND BE CAUTIOUS OF SHARP LEADING EDGES ON IMPELLER BLADES WHILE CLEANING! FAILURE TO FOLLOW THESE WARNINGS COULD LEAD TO INJURY! ©2021 IXOM Watercare Inc. | www.ixomwatercare.com | 866 - 437 - 8076 | watercare@ixom.com 2089_10245_20210730 O&M_GF1250PWc_10110_20210922 - 18...
  • Page 21 Please follow the proper procedure earlier in this section. Machine resting on floor ready for water. ©2021 IXOM Watercare Inc. | www.ixomwatercare.com | 866 - 437 - 8076 | watercare@ixom.com 2088_10252_20210729 O&M_GF1250PWc_10110_20210922 - 19...
  • Page 22 Please contact Ixom Customer Service: 1-866-437-8076 (customerservice@ixom.com), for a quote for temporary removal of your machine. Hose properly layed out on tank floor. ©2021 IXOM Watercare Inc. | www.ixomwatercare.com | 866 - 437 - 8076 | watercare@ixom.com 2088_10252_20210729 O&M_GF1250PWc_10110_20210922 - 20...

  • Page 23: Electrical

    GRID POWER ONLY 120VAC 60HZ @ 2.0 AMPS ON SHORE / OUTSIDE RESERVOIR ON MIXER / INSIDE RESERVOIR BRUSHLESS DC MOTOR MOTOR CONTROLLER ©2021 IXOM Watercare Inc. | www.ixomwatercare.com | 866 - 437 - 8076 | watercare@ixom.com 1927_10299_20210806 O&M_GF1250PWc_10110_20210922 - 21...
  • Page 24 Please refer to the provided owners manual for normal operation led blink codes. SD Card Slot Blinking LED’s Blue Blue YELLOW YELLOW GREEN GREEN SCADA Serial Connection Brain Board Serial Number Figure 1: Brainboard ©2021 IXOM Watercare Inc. | www.ixomwatercare.com | 866 - 437 - 8076 | watercare@ixom.com 866_10042_20210428 O&M_GF1250PWc_10110_20210922 - 22...

  • Page 25: Troubleshooting

    AC GRID POWER INTO THE ELECTRONIC CONTROL BOX IF THERE BECOMES A NEED TO PERFORM ANY TYPE OF SERVICE INSIDE THE ELECTRONIC CONTROL BOX. ©2021 IXOM Watercare Inc. | www.ixomwatercare.com | 866 - 437 - 8076 | watercare@ixom.com 10300_20210806 O&M_GF1250PWc_10110_20210922 - 23...
  • Page 26 BRAINBOARD TO MOTOR CONTROL COMMUNICATIONS Fuse MOTOR SIGNAL - (Green) AC LINE (Black) AC NEUTRAL (White) AC GRID POWER AC GROUND (Green) ©2021 IXOM Watercare Inc. | www.ixomwatercare.com | 866 - 437 - 8076 | watercare@ixom.com 10300_20210806 O&M_GF1250PWc_10110_20210922 - 24...
  • Page 27 12 VDC OFF SOLID GREEN NOT LIT Source Power Circuit: 120 VAC Control Circuit: 12 VDC Motor Power Circuit: 45 VDC, 5 Amp max ©2021 IXOM Watercare Inc. | www.ixomwatercare.com | 866 - 437 - 8076 | watercare@ixom.com 10300_20210806 O&M_GF1250PWc_10110_20210922 - 25...

  • Page 28: Parts Diagram

    8” x 40’ Hose, NSF, White PN: 18010015 Distributor Dish PN: 26283008 Intake Box Assembly Inside Compartment, Connected to Motor Below Top Plate ©2021 IXOM Watercare Inc. | www.ixomwatercare.com | 866 - 437 - 8076 | watercare@ixom.com 10281_20210806 O&M_GF1250PWc_10110_20210922 - 26...

  • Page 29: Dimension Drawing

    Dimension Drawing 1250PWc Dimension Drawing SB / GF Series Small Frame Mixers ©2021 IXOM Watercare Inc. | www.ixomwatercare.com | 866 - 437 - 8076 | watercare@ixom.com 789_10242_20210730 O&M_GF1250PWc_10110_20210922 - 27...

  • Page 30: Appendix

    Appendices Appendix Additional Component Information Technical Data Sheets ©2021 IXOM Watercare Inc. | www.ixomwatercare.com | 866 - 437 - 8076 | watercare@ixom.com 10576_20210611 O&M_GF1250PWc_10110_20210922 - 28...

  • Page 31: Technical Specifications

    Maintenance / Warranty - Minimal maintenance. Limited 2-year parts and labor warranty. Patent Pending Subject to change without notice. ©2021 IXOM Watercare Inc. | www.ixomwatercare.com | 866 - 437 - 8076 | watercare@ixom.com 1050_10280_20210806 O&M_GF1250PWc_10110_20210922 - 29...
  • Page 32 GridBee Monitoring Setup Information The GridBee is a modbus RTU slave device with a factory programmable slave ID. The ID can be changed in the field with a properly programmed SD card. Contact Ixom Watercare, Inc. Customer Service for assistance. Serial Interface...
  • Page 33 Viewed from behind or above the motor clockwise motion is “forward”. Motor Current The unit for this value is milliamps. ©2021 IXOM Watercare Inc. | www.ixomwatercare.com | 866 - 437 - 8076 | watercare@ixom.com 1657_10362_20210805 O&M_GF1250PWc_10110_20210922 - 31...
  • Page 34 If the Charge Controller has the Auxiliary Output turned off, this error is not displayed. Priority 2 4X Red Normal machine operation. ©2021 IXOM Watercare Inc. | www.ixomwatercare.com | 866 - 437 - 8076 | watercare@ixom.com 2077_10327_20210805 O&M_GF1250PWc_10110_20210922 - 32...
  • Page 35 F, freeze resistant, 100% humidity, splash and condensation resistant 1234XXXX 20014700 PART # Shipping Size/Weight • 14” x 10” x 9”, 30lbs. Maintenance / Warranty - No routine maintenance. Limited 2- year parts and labor warranty. ©2021 IXOM Watercare Inc. | www.ixomwatercare.com | 866 - 437 - 8076 | watercare@ixom.com 1261_10064_20210429 O&M_GF1250PWc_10110_20210922 - 33...

  • Page 36: Warranty

    Parts that are determined by Ixom to be defective in material or workmanship under normal use during the two year warranty period will be repaired or replaced. Any shipping charges that may apply are the responsibility of the customer.

  • Page 37: Customer Service

    © Distribution Treatment, Wastewater Treatment and Lakes & Source Water Reservoirs. IXOM has thousands of installations and is an industry-leader solving water quality problems across the United States, Canada and the world. Contact us today to discuss your water quality and service needs.
