Summary of Contents for Panasonic SC-HT19GS-K

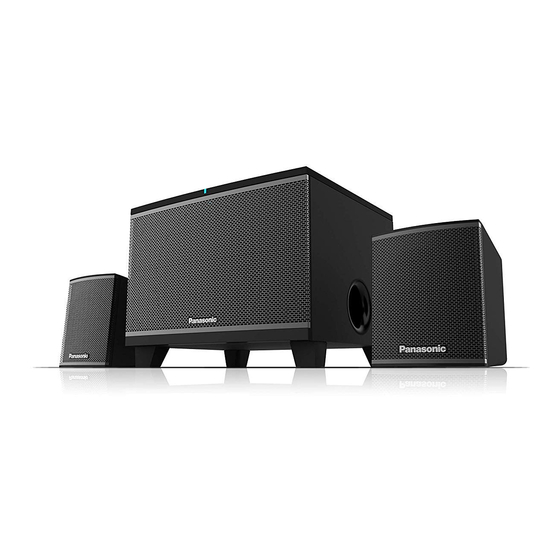

- Page 1 2.1 Channel Speaker System SC-HT19GS-K Thank you for purchasing this Panasonic product. Please read these instructions carefully before operating this product and retain them for future reference. The images shown in this manual are for illustrative purposes only.
- Page 2 Specifications Sound output: 20 W + 12.5 W x 2 (RMS) 3" x 2 satellite + 5" subwoofer Satellite Speaker: 120 Hz - 20 KHz 220-240V~50/60Hz Subwoofer ( L B H ) 245 x 212 x 187 (mm) Satellite ( L x B x H ) : 93 x 103 x 118 (mm) Features: Ÿ...
- Page 3 How to use the remote control NORMAL (10) JAZZ ROCK (11) (13) (15) (14) (12) Part No.: L89-0010U-028 1. ST-BY (Stand-by): Turns ON the unit; When is ST-BY mode, the LED indicator will blink as last selected function, i.e. Red for AUX, Purple for FM and Blue for USB &...
- Page 4 7. BT: BT mode selection. When you enter BT mode, Blue LED display start flashing quickly to search the BT device. Turn on your mobile device and search the BT device name as “SC-HT19”. When you have successfully paired your mobile to the speaker system, the LED flashes slowly.
- Page 5 Instructions for replacing lithium battery NORMAL JAZZ ROCK STEP1 ：Turn the remote control to the back side STEP2： Pull out the plastic sheet STEP3： Pull out the battery box STEP4： Take out the lithium battery out of the battery box STEP5：...
- Page 6 Front Panel Key Operation: 5. VOL- 6. VOL+ USB socket /Source: After power on, press /Source button for input mode selection. Long pressing /Source button will put the unit in “Stand-by” mode. 2. You can change the input modes by pressing /Source button.
- Page 7 AC IN 1. Input: 3. AC IN: Connect to sound sources AC Power cord such as Computer, CD Player, Mp3 Player , etc. 2. Output: 4. Power ON/OFF: Connect the satellite Switch for turning on/off speakers. the power.
- Page 8 System Connection Diagram AC IN 1. Connect both satellite speakers to OUTPUT terminals of back panel. 2. Connect the power cord to the mains and power on the system. 3. To play at AUX Mode, connect the 3.5 mm stereo input jack into the output the audio sources such as Mp3 Player , Computer, etc.
- Page 9 How to place Speaker System Subwoofer...
- Page 10 SAFETY INSTRUCTIONS CAUTION/WARNING Apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus. Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like. The MAINS plug is used as the disconnect device, the disconnect device shall remain readily operable.
- Page 11 OMAN - TRA UAE - TRA REGISTERED No. REGISTERED No. ER62070/18 TRA/TA-R/5859/18 DEALER No. DEALER No. DA0052708/10 D090281 Web Site: http //www.panasonic com...
