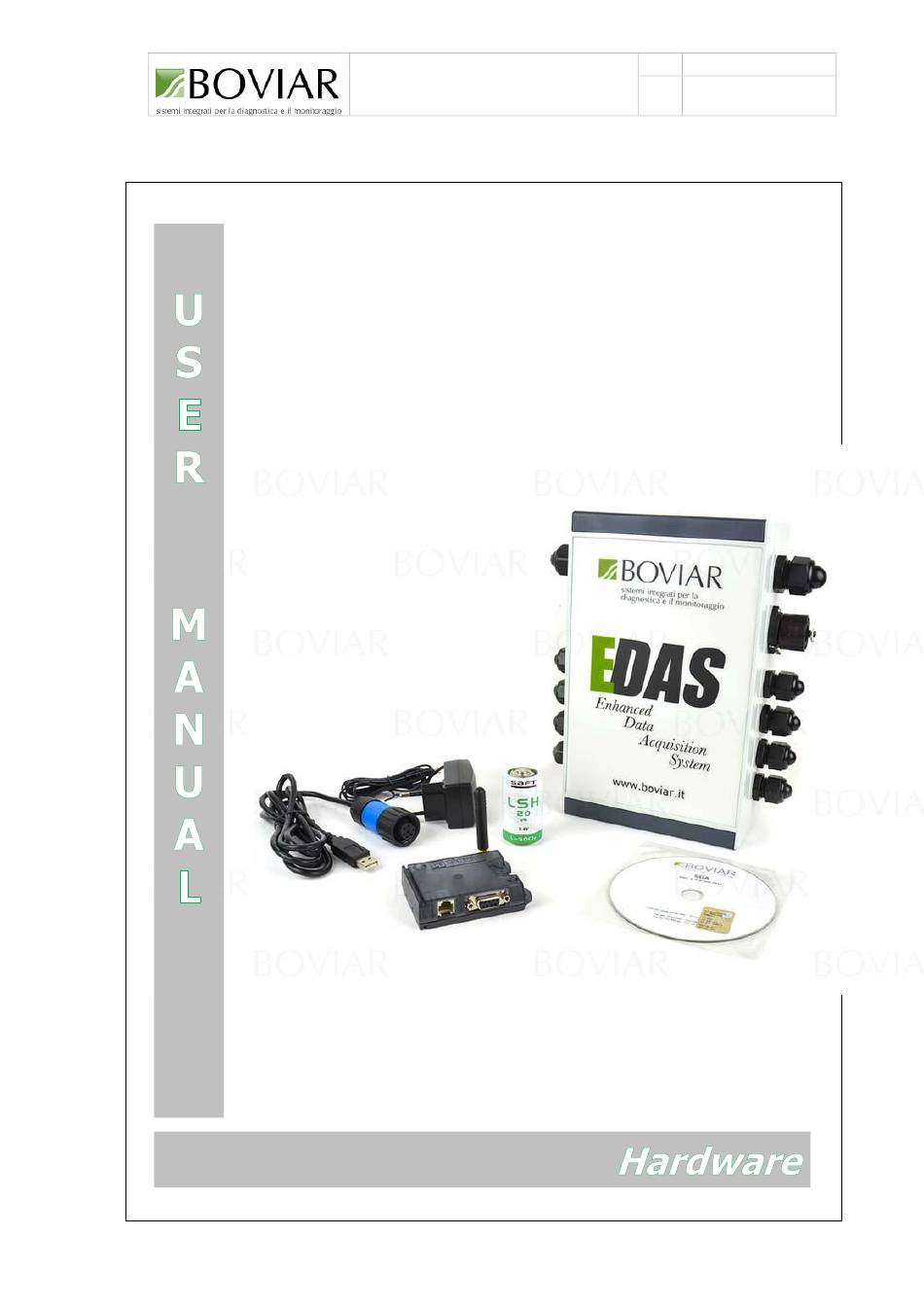

Page 1 User manual EN-02_18 AVC Rev. eDAS Date: (IT 21_03_16 rev. 2 AM) Enhanced Data Acquisition System Hardware - 1 -...
Page 2 Via G. Puccini, 12/A 80026 - Casoria (Naples) ITALY All information in this document are exclusive propriety of BOVIAR s.r.l. No part of the manual can be published, copied, forwarded to third parties or used for applications outside what described in the present document without a prior authorization in writing from BOVIAR S.r.l.
Page 3: Table Of Contents
Description ......................4 Technical Specifications ................6 Batteries and Power supply additional devices ........ 6 Connecting sensors ..................10 eDAS logger fitted with Multiplexers ............ 12 eDAS Networking ....................15 Modem ........................16 Diagrams - Cables and pin configuration ........... 18...
Page 4: Hardware Manual
(IT 21_03_16 rev. 2 AM) Enhanced Data Acquisition System Hardware Manual Description “eDAS” is a 16-bit, fully programmable data logger designed to offer a comprehensive solution to structural and environmental monitoring needs wherever signals to be recorded are expected to be slowly changing.
Page 5 Date: (IT 21_03_16 rev. 2 AM) Enhanced Data Acquisition System Inlet / Outlet for Bus 485 Cable (Additional power supply) Communication socket (TTL232) Inlets for sensors cables Fig. 1 - EDAS logger in the newly-designed standard case - 5 -...
Page 6: Technical Specifications
Batteries and Power supply additional devices In order to prevent power waste when not in use, EDAS loggers are normally delivered with separate battery. Users have to fit the battery (or any compatible power supply source) in place before starting any operating procedure.
Page 7 (IT 21_03_16 rev. 2 AM) Enhanced Data Acquisition System WARNING! The battery of EDAS logger IS NOT RECHARGEABLE. We recommend that only original batteries of the type, model and brand stated before are used. To fit the battery in its compartment proceed as follows: ...
Page 8 Date: (IT 21_03_16 rev. 2 AM) Enhanced Data Acquisition System Fig. 2 – eDAS PCB Optional additional power supply systems Sometimes - as in the case of a modem or a special-features type of sensors being used - it may be requested to resort to some additional power supply system.
Page 9 User manual EN-02_18 AVC Rev. eDAS Date: (IT 21_03_16 rev. 2 AM) Enhanced Data Acquisition System WARNING! When using batteries:  Recharge them exclusively with the charger supplied with the standard equipment. NEVER USE CHARGERS OF OTHER MAKES.  Do not heat or throw batteries into fire or put them close to heat sources.
Page 10: Connecting Sensors
User manual EN-02_18 AVC Rev. eDAS Date: (IT 21_03_16 rev. 2 AM) Enhanced Data Acquisition System Connecting sensors Connect sensors to the input channels routing them through the box cable glands. Screw tightly the glands so that no dust or water can enter to get IP65 tightness conditions.
Page 11 User manual EN-02_18 AVC Rev. eDAS Date: (IT 21_03_16 rev. 2 AM) Enhanced Data Acquisition System 1 to 8 Channel Configuration Terminal board Jumper Inputs Supply Jumpers (Fig. 2) Sensor S7 – S8 – S9 – S3 – S4 – S5 – S6 –...
Page 12: Edas Logger Fitted With Multiplexers
The following example shows how a 16-channel eDAS is expanded to 32 channels (in groups of 4) keeping it in the same standard box. Adding a multiplexer to any eDAS logger entails that at least one of the basic channels available has to be dedicated to the new device, by configuring it according to the technical and electrical features of the new sensors to be implemented into the system (see fig.
Page 13 Channel 6 connected to eDAS Channel 7 configured for potentiometers configured for 4..20 mA sensors For the correct matching of multiplexer to eDAS channels you need to use the “SGA” software, supplied with the standard equipment. - 13 -...
Page 14 (load cells, strain gauges, etc.)  PowerBox (Power supply from 220V mains or photovoltaic panels  Additional and / or Special boxes for heavy-duty installations  Pole and fixing kit for supporting eDAS and accessories  Customized solutions - 14 -...
Page 15: Edas Networking
(NODES) networked on a 485 BUS connection. If needed, this BUS can serve as well to carry the power supply from the additional Powerbox. The maximum number of eDAS units in a network is 255 and the distance from the first to the furthest node, provided that a suitable supply source is available, can reach as far as 1 km.
Page 16: Modem
Before opting for one particular telephone company, we recommend that you previously check that the GSM / GPRS signal in the area where eDAS with modem has to be installed is sufficiently covered by the operator of your choice. Due to compatibility and efficiency matters, we suggest to include also the modems in your order of a data logging system to BOVIAR s.r.l.
Page 17 = phone connection on eDAS pole In this case, the modem unit is generally pre-mounted and pre-cabled inside the Powerbox (or eDAS box) and it is already connected to power supply. Follow instruction as above or the ensuing operations. - 17 -...
Page 18: Diagrams - Cables And Pin Configuration
Diagrams - Cables and pin configuration eDAS Networking CONNECTIONS DIAGRAM 485 BUS cable + 12V from Power supply Box to eDAS “n” 485 BUS cable + 12V eDAS “0” – “1” Fig. 7 - eDAS Node 0 - 1 - 18 -...
