- Page 1 CTVADX004 Instruction Manual...
- Page 2 Contents: Contents ........................2 Safety Instructions ......................3 Service ..........................4 Shipment ........................4 Product description ...................... 5 Installation ........................6 Function and Controls ....................7 Technical Data ......................8...
- Page 3 Safety Instructions: 1. Read through mounting guidelines: Please read through all safety instructions and handling directions intently be- fore installation and start up of the device. 2. Keep mounting guidelines: Keep the instruction manual and safety instructions for potential further refer- ence.
- Page 4 Date of purchase, your name and address, item number and the type of your vehicle. Shipment: Interface CTVADX004 Mounting guidelines MOST® is a registered trademark of OASIS Silicon Systems AG, the usage of this short cut is only a evidence of sup-...

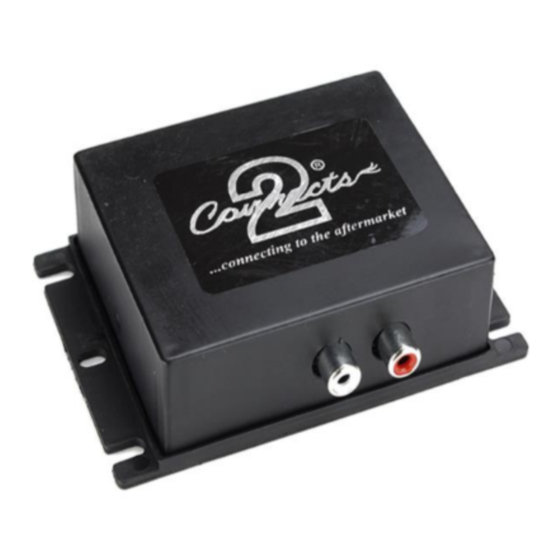

- Page 5 Product description: Article CTVADX004 Function AUX IN interface for Audi MMI A5, A6, A8, Q7. This interface allows for the connection of an external stereo audio source to an Audi MMI2G System. CD7 (second CD changer) is used for audio input, which can easily be installed in addition to the first CD changer.
- Page 6 Installation Warning: Do not install interface while ignition is turned on. 1. Disconnect the optical fiber cable from the Audi CD Audi CD changer changer and integrate the interface into the circuit as depicted in the schematic on the right. Please pay close attention to both the direction (directional arrows on the connectors) and the sequence of the components ( 1.Audi CD changer >...
- Page 7 Function and Controls: The interface simulates an original CD changer and is displayed on the MMI as such. In case a CD changer is already present, the interface identifies itself as second CD changer. The original CD changer remains unaffected by the installation and can be controlled as before.
- Page 8 Technical data: Voltage supply: 12V DC Voltage-operating capacity: 10,5 – 14,8 V Standby current: Operating current: 120mA Power input: 1,8W Temperature range: - 30°C up to + 80°C Weight: Measurements W x H x D: 90 x 35 x 65 mm The product is designed for automotive use and therefore has a life span of at most 10 years.
