Summary of Contents for SonoSite SiteStand

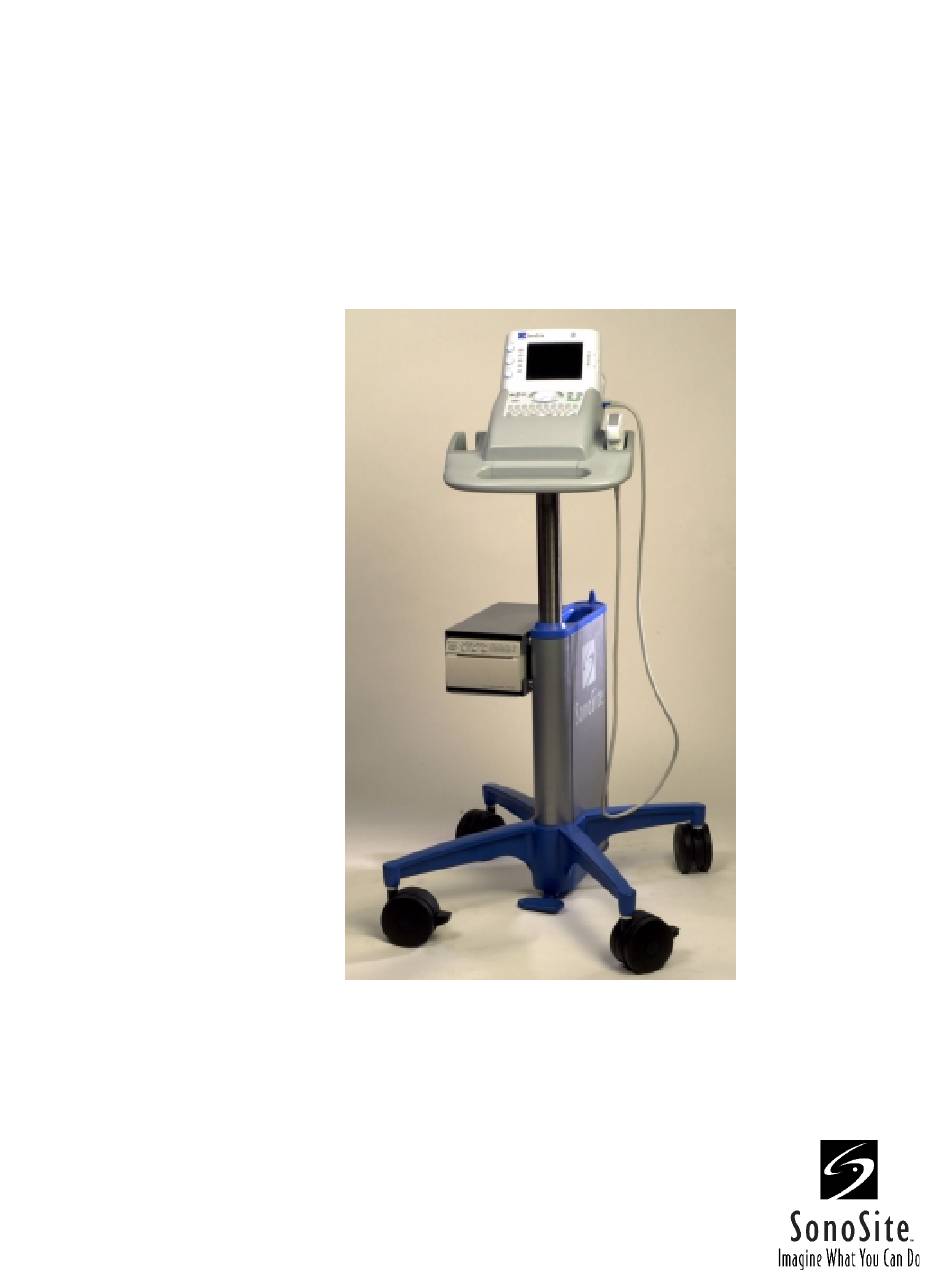

- Page 1 SonoSite ™ SiteStand™ Mobile Docking Station Service Manual...
- Page 2 P01117-01 Rev B 10/00 Copyright © 2000 by SonoSite, Inc. All rights reserved. Printed in the USA.
- Page 3 Non-SonoSite product names may be trademarks or registered trademarks of their respective owners. SonoSite products may be covered by one or more of the following U.S. patents: 4214269, 4387365, 4387597, 4432371, 4435614, 4454884, 4534357, 4542653, 4552607, 4581636, 4603702, 4607642, 4644795, 4670339, 4773140, 4817618,...
-
Page 5: Table Of Contents
Replacing the Sleeve Assembly and the Docking PCBA ..9 3.3.3 Replacing the Power Supply ..........9 3.3.4 Replacing the Foot Pedal............9 3.3.5 Repairing/Replacing the Front Panel Connectors ....10 3.3.6 Replacing the SiteStand Fuse ...........10 SiteStand Performance Tests ..........11 3.4.1 Setup.................11 3.4.2 AC Power Verification .............11 3.4.3 Docking Video ..............11 3.4.4... - Page 6 Replacement Parts List ............13 Ordering Replacement Parts ...........13 SiteStand Wiring Diagram............14 Schematic Diagram, Docking Stand PCB ......15 SiteStand Assembly ..............16 SiteStand Sleeve Assembly ............17 Service Event Report PPENDIX SiteStand Service Manual...
-
Page 7: Hapter 1 Introduction
(Figure 1.1) provides power, video, print, and image transfer capabilities for the system. The SiteStand has storage for two transducers and a tray for a recommended black-and-white printer. It provides the following connections: three video ports, an RS-232C port, a printer control port, and two AC mains IEC power receptacles. - Page 8 Chapter 1: Introduction SiteStand display SonoSite system Sleeve Printer tray SiteStand Height adjustment pedal Locking levers Figure 1.1 SiteStand with Display SiteStand Service Manual...
-
Page 9: Specifications
1.3.1.1 Electrical SiteStand input: 100-120/220-240 VAC, 50/60 Hz, 1.0-0.50 A. SiteStand outputs: + 16Vdc, 2.8 A. and 100-120/220-240 VAC, 50/60 Hz, 2.0 A. (2x) AC power adapter input: 100-120/220-240 VAC, 50/60 Hz, 1.0-0.50 A. AC power adapter output: + 16Vdc, 2.8 A. - Page 10 Chapter 1: Introduction SiteStand Service Manual...
-
Page 11: Hapter
SonoSite. To avoid the risk of electrical shock, use commercial grade peripherals recommended by SonoSite on battery power only. Do not connect these product to AC mains power when using the system to scan or diagnose a patient/subject. Call SonoSite technical support or your local representative for a list of the commercial grade peripherals available from or recommended by SonoSite. -
Page 12: Equipment Protection
ESD: anti-static spray on carpets, anti-static spray on linoleum, and anti-static mats. For labeling symbols used with the SiteStand, please refer to the SonoSite 180 or SonoHeart User Guide. For information about the flat panel display, please refer to the Operating Instructions for the Series DV-3000 Colour LCD Rugged Monitor. -
Page 13: Hapter 3 Servicing The Sitestand
Servicing the SiteStand HAPTER Introduction Before servicing the SiteStand, read and be familiar with the information in this manual. The SiteStand assembly drawings and part lists are located in Appendix A, Schematic and Parts List on page 13. 3.1.1 Contacting SonoSite Technical Support For technical support or to order spare parts, do one of the following: •... -
Page 14: Disassembling The Sitestand
Disassembling the SiteStand Disassembly of the SiteStand is dependent on the repairs required. The following order of disassembly is recommended in order to prevent damage to the SiteStand and facilitate efficient repairs. The service provider should use good judgement in altering this order to provide repairs to various parts of the SiteStand. -
Page 15: Required Tools
7. To reassemble the SiteStand follow steps 1 through 6 in reverse order. 3.3.4 Replacing the Foot Pedal Earlier versions of the SiteStand use a pin to hold the foot pedal in place. If the pin has become loose, you should replace the foot pedal with foot pedal repair kit (P01321). -
Page 16: Repairing/Replacing The Front Panel Connectors
5. Left the blade cap and subplate to the top of the shaft and secure it in place. 6. Gently pull the connector assembly out the top of the blade assembly. 7. The connector can now be repaired or replaced. 8. Reassemble the SiteStand by performing steps 1 through 8 (in this section) in reverse order. 3.3.6... -
Page 17: Sitestand Performance Tests
To replace the electrical fuse: 1. Disconnect the AC line cord from the hospital-grade electrical outlet. 2. Disconnect the AC line cord from the bottom of the SiteStand mobile docking station. 3. Use a small, slotted screwdriver to remove the fuse drawer (located directly below the input AC receptacle on the SiteStand mobile docking station). - Page 18 Chapter 3: Servicing the SiteStand 3. Repeat steps 1 and 2 (above) at least one more time to verify that the status line is connected. SiteStand Service Manual...
-
Page 19: Appendix
PPENDIX This section contains a list of field-replaceable parts. Schematic and Wiring Diagram A schematic and a wiring diagram are provided for the SiteStand and the docking stand PCB. Replacement Parts List The following tables contain all the replaceable parts for the SiteStand. All quantities are one unless otherwise noted. -
Page 20: Sitestand Wiring Diagram
IEC Input AC Receptacle (male) 100-240VAC INPUT SonoSite 180 NOTE: Docking Stand is disabled with no voltages at 14 output contacts until SonoSite 180 is placed in Stand connecting V- to Ground. 1: V+ Universal AC Input (100-240V 50-60Hz) Power Docking Stand PCB 16VDC 2: V- Adapter. -
Page 21: Schematic Diagram, Docking Stand Pcb
Schematic Diagram, Docking Stand PCB Schematic Diagram, Docking Stand PCB SiteStand Service Manual... -
Page 22: Sitestand Assembly
Appendix A: Schematic and Parts List SiteStand Assembly SiteStand Service Manual... -
Page 23: Sitestand Sleeve Assembly
SiteStand Sleeve Assembly SiteStand Sleeve Assembly SiteStand Service Manual... - Page 24 Appendix A: Schematic and Parts List Table A.1 SiteStand Assembly Parts List FIND PART DESCRIPTION NUMBER NUMBER P00981 weldment, body P00997 subplate, body, top P00998 subplate, body, bottom P01500 nut, sleeve, non-locking P01499 nut, weld P00985 spacer, printer housing P00993...
- Page 25 SiteStand Sleeve Assembly Table A.1 SiteStand Assembly Parts List, Continued FIND PART DESCRIPTION NUMBER NUMBER P00657 assembly, sleeve, stand P00976 bumper, elastomeric P01055 .25 dia x .500 roll pin P00787 screw, K35 x 1.57 x 8 type 1, recess panhead, tf...
- Page 26 Appendix A: Schematic and Parts List Table A.2 SiteStand Sleeve Assembly Parts List FIND ITEM PART DESCRIPTION NUMBER NUMBER P00586 base, sleeve P00587 lid, sleeve P00662 latch pivot rod P00588 latch, sleeve P00663 e-ring, stand P00650 cover, latch mechanism P00766...
-
Page 27: Service Event Report
The Service Event Report provides information about product failures to the manufacturer and to authorized service facilities, which provide approved warranty services for SonoSite products. For all repairs completed, complete the form and return a copy of it to the following address: SonoSite, Inc. - Page 28 Service Event Report Service Provider Name: Date: Company: Address: Phone Number: Fax Number: E-mail address: Device Description Name: Serial Number: Part Number: Lot Number: Revision: Software Version: Other Identifiers: Event Description Diagnosis Service Performed Performed By: Date: Actions: Parts Removed Part Name Part Number Serial Number...
- Page 29 5 equipment protection 6 wiring diagram 13 fuse replacing 11 introduction 1–3 parts list 13–20 SiteStand assembly 18 SiteStand sleeve assembly 20 product failures reporting 21 replacement parts list 13 ordering 13 safety 5–?? electrical 5 equipment protection 6...
