Bryan exhaust heads offer long term,

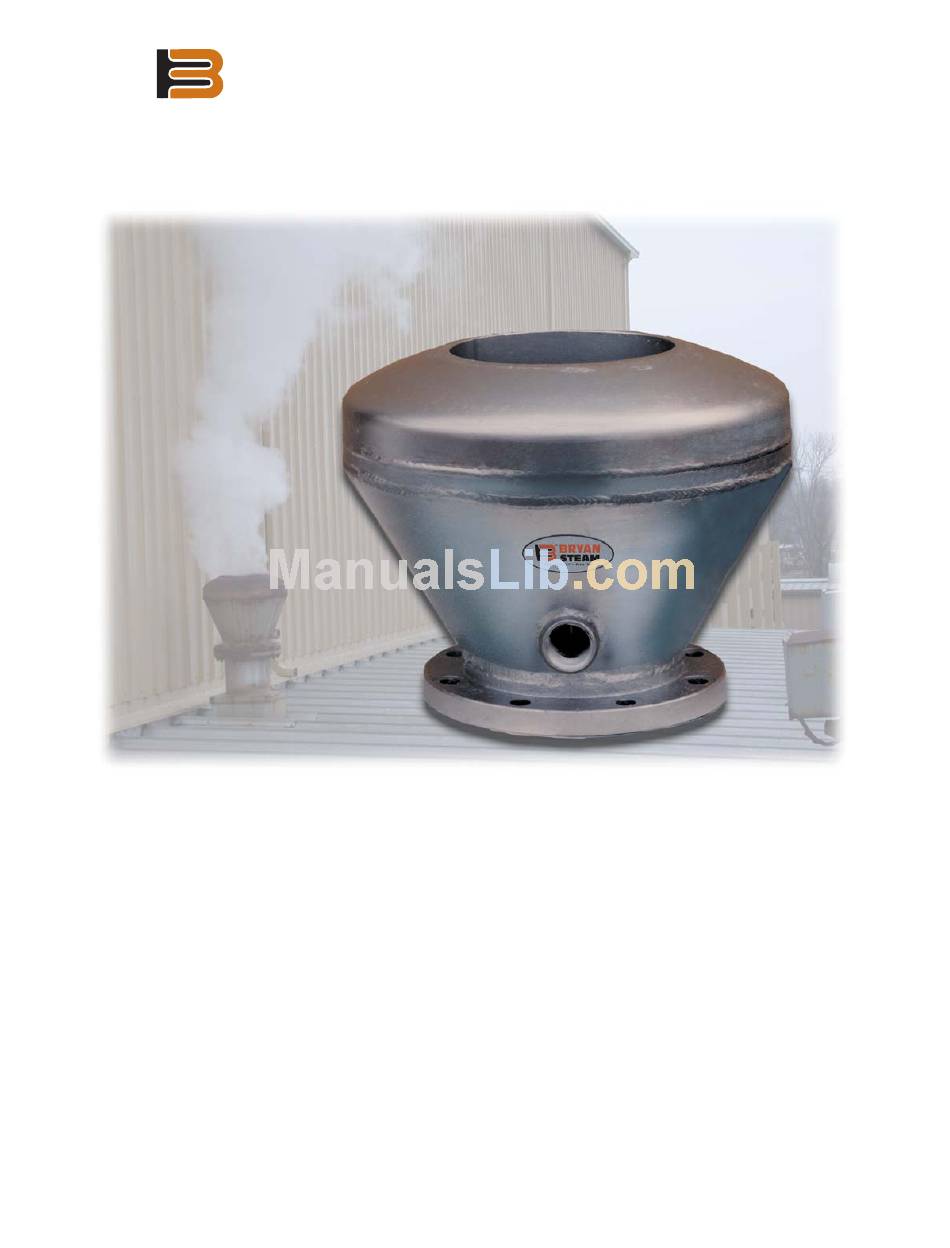

The Exhaust Head

Over 100 years ago, John J. Hoppes created his first
exhaust head. Today, Bryan builds units based on this
original design concept which has proven very efficient
in thousands of installations through the years.

The Best Materials

Bryan exhaust heads are constructed of the finest
materials. The fabricated carbon steel results in an
exhaust head that lasts longer and works harder for you.

Three Levels of Protection

The Bryan exhaust head gives three levels of protection
against oil and water pollution: first, an expansion
chamber; second, an impingement cone; and third, a
catch trough and drain. What one misses, another gets,
resulting in oil-free, water-free exhaust steam.
BRYAN STEAM
Steam Exhaust Heads
Size ranges from 1"-24"
maintenance-free service.

The Right Size

You have a wide range of sizes to choose from. In fact,
our sizes range from 1" to 24". We have many sizes in
stock and will quote on larger sizes upon request.

How Our Exhaust Head Works

Steam enters the exhaust head and gradually expands
into a chamber several times the area of the pipe. The
particles of oil and water in the center of the current are
separated by impinging on the cone, while those on the
outer edges strike against and adhere to the side of the
separating chamber. The flow of the entrainment is
checked by the trough partly filled with water surround-
ing the outlet, and the separated water is carried off
through the drain pipes.
