Owasys OWA450 Quick Start Manual

This equipment conforms to the Radio Equipment Directive (RED) 2014/53/EU, covering requirements included in EMC directive 2014/30/UE,
and Low Voltage Directive 2014/35/UE as well as other requirements as those from ROHS Directive 2011/65/UE. Complete Declaration of
Conformity
http://owasys.com/bundles/owasysweb/docs/products/owa450/owa450.DoC.en.pdf
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause undesired operation.
DISPOSAL OF OLD ELECTRICAL & ELECTRONIC EQUIPMENT (APPLICABLE IN THE EUROPEAN UNION AND OTHER EUROPEAN
COUNTRIES WITH SEPARATE COLLECTION SYSTEMS).
This product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of
electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help preventing potential negative consequences
for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of
materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local
council, your waste disposal service or the distributor where you purchased the product.
Dispose of used batteries according to the instructions in section 3.10
1. owa450 kit content
▪

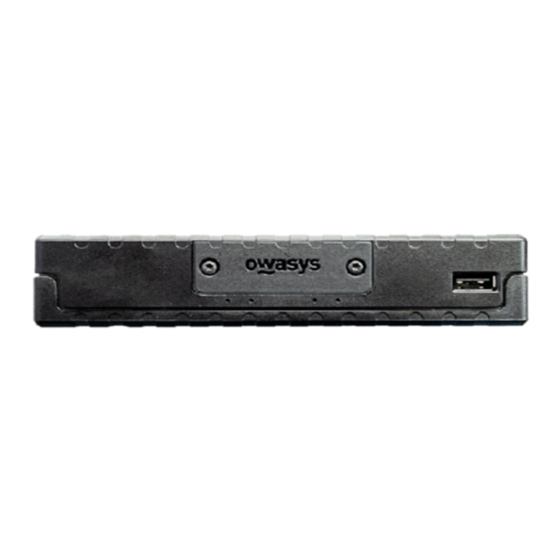

owa450 unit
2. Technical specifications summary
Item
Power Supply
Operating Temperature range
Safety Purposes Temperature range without Li-ion battery
Safety Purposes Temperature range with Li-ion battery
Storage Temperature
3. Safety and other precautions
3.1. General
IMPORTANT: FOR THE EFFICIENCY AND SAFE OPERATION OF YOUR owa450 MODULE READ THIS INFORMATION BEFORE
USE!
Care must be taken when handling the unit. Only staff authorized by Owasys can dismantle the product. If the product is dismantled by
non-authorized people and/or ESD precautions are not taken the warranty is not valid.
Do not push objects into connectors of your device. Doing so can cause fire or electric shock by short-circuiting.
If the product is subject to severe conditions beyond the limits specified in the Technical Specifications, the product could be damaged.
Keep the device away from radiators and heat sources. The device may become hot during normal operation, so switch it off and wait for
a while before handling it.
Do not clean the device when powered up. Clean it with a soft cloth. Do not use liquid or aerosol cleaners, which may contain flammable
substances.
Use only approved batteries to avoid the risk of explosion. The use of an incorrect type of battery may cause an explosion.
3.2. owa450 connections
An external fuse should be included in the positive Vin supply with a rating of 2A (to protect the cables and input circuitry in case of a
faulty condition if the external power supply has not short circuit protection below 3A).
at Owasys
Specification
9 to 48 Vdc (minimum 1.5A)
-40 ºC to +85 ºC
-40 ºC to +70ºC
-40 ºC to +60 ºC
Discharge internally limited from -20 ºC to +60ºC
Charge internally limited from 0ºC to 45ºC
-40ºC to +85 ºC
DESI-BOK100_9103-en-C.doc
