JCHR35H6E1 Remote control User manual

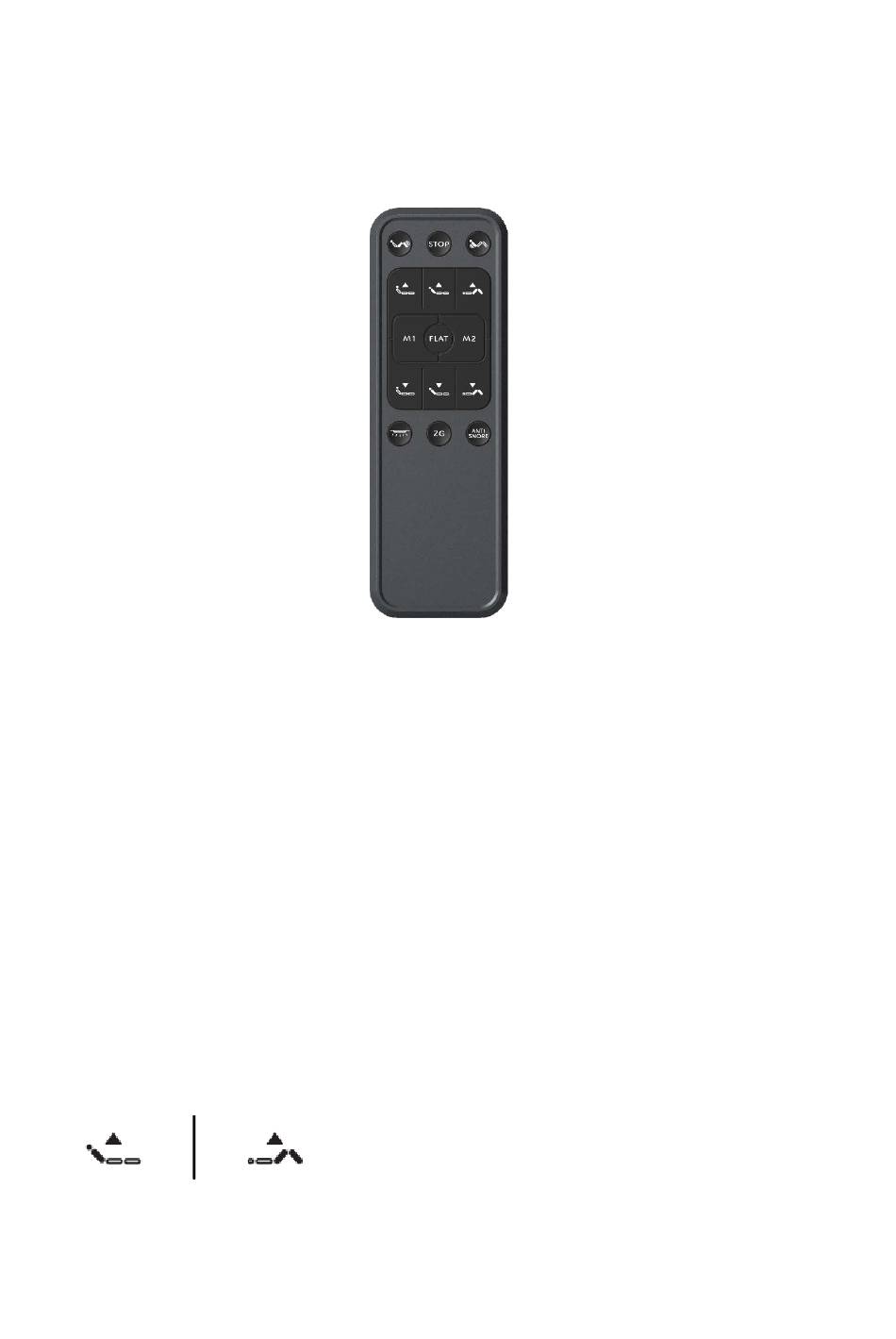

1、Remote control Effect Picture

2、Remote control function description

2.1 Pairing:

Remote control pair code:

1) put the battery into the remote control.

2) power the control box (supporting our control box).

3) at the same time, hold down the head up button on the remote control and the foot up button.

When the LED on the control box to be matched stops flashing and the buzzer makes a sound, the

pairing operation is completed. To test whether or not the pairing is successful, head up/down, foot

up and down keys, buttons and so on related to drive, if you can hear the "tick" sound emitted by

the relay, specification matching success. Otherwise, repeat all the above steps.

Note: after successful code alignment, operate any two buttons at the same time during use, and

the remote control will not send signals.

Table of Contents

Need help?

Do you have a question about the JCHR35H6E1 and is the answer not in the manual?

Page 1 JCHR35H6E1 Remote control User manual 1、Remote control Effect Picture 2、Remote control function description 2.1 Pairing: Remote control pair code: 1) put the battery into the remote control. 2) power the control box (supporting our control box). 3) at the same time, hold down the head up button on the remote control and the foot up button.
Page 2 3、Function description 3.1 Learning function: After the controller is powered on or long press the learning button, it enters the learning state. The green light of the controller keeps flashing. In the learning state, press the "head up" and "foot up"...
Page 3 corresponding position. During this process, press any button that related to the actuator, the moving action will be stopped. If press any button that not related to the actuator (such as Under-bed lighting, massage), actuator will stop moving and begin to perform the button’s function.
Page 4 4、Key value to code table Remote control Button icon key definitions key value Remarks pictures 0X01 push rod up 0X04 push rod down 0X02 push rod up 0X05 push rod down 0X14 push rod up 0X15 push rod down 0X08 FLAT location 0X07 ZG location...
Page 5 0X0D Head massage 0X0E Massage stop 5、Others 5.1. The operating frequency range： 2404MHZ~2479MHZ; 5.2. Maximum RF output power of the product: The overall power of the remote control is 83.88 dBμV/m. 5.3. Number of working channels of remote control is 5：2404,2419,2454,2469,2479. And 2479 is the code channel.
