The USR4524 Gigabit Ethernet Aggregation TAP (Test Access Point) with USB monitoring will tap a single network link or
segment. Network segments may be monitored using a network analyzer, security devices or any monitoring appliance or tool
via a USB cable. Capture full-duplex traffic without dropping any packets. This USB TAP can be powered via USB 3 as well as
the included optional power supply.

Package Contents:

USR4524 Gigabit Ethernet Aggregation TAP (USB) with mounting tabs for use with URS4522-RMK (4 unit 1U rackmount)
1 USB 3.0 cable
1 AC power supply with clips for US, UK, EU, AU
2 mounting screws
Information Card

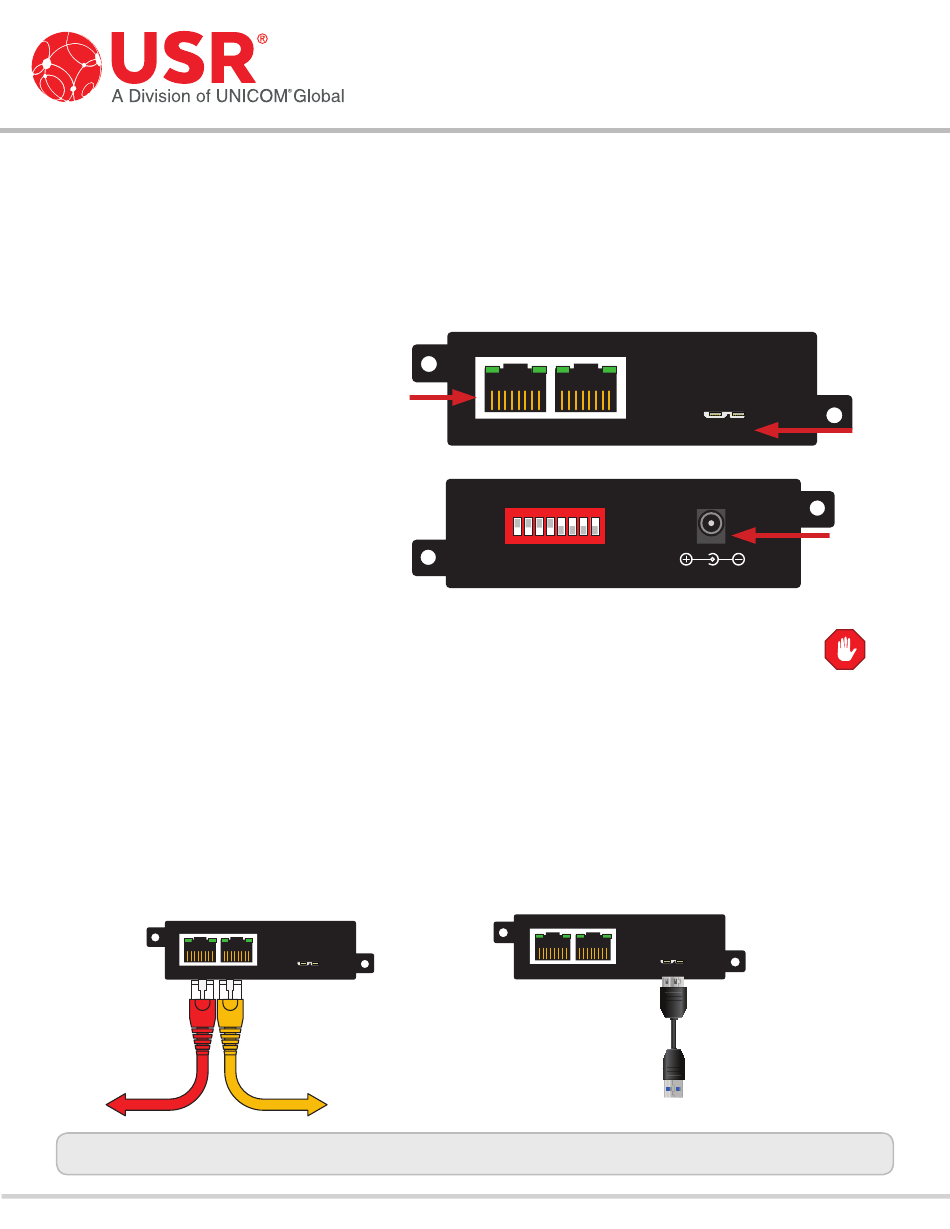

Front View
LFP: Link Failure Propagation
LNK: Link Activity
A/B: RJ45 Ethernet Ports
USB 3.0 Port
Rear View
DIP switches shown in default
configuration

Installation Steps

1.
This product is dependent on OS drivers. If you have a Windows 10, 8, 8.1, or 7 computer this TAP will not
require you to install device drivers if the OS is up-to-date. Check www.usr.com/support/4524 for latest driver
information. Download drivers if needed.
2.
Unpack the TAP and, if desired attach to the optional rack mount. Instructions are provided on page 4.
DO NOT CONNECT THE POWER/USB at this point.
3.
Configure the DIP switches (located on the back side of the unit) for the operating mode of your choice.
4.
Install the network TAP into the live network.
standard Ethernet cables, connect ports A and B between two live network devices where monitoring is desired.
5.
Verify network traffic is flowing, confirming that network cabling is correct.
6.
If your USB host is not 3.2 Gen 1 or higher, connect the power supply to the USR4524 and plug it in to an available power
source.
7.
Attach the TAP to your computer/server with the provided USB 3.0 cable. Windows should immediately detect a high
speed USB hub device connected. Use the USB port to connect with monitoring tools for traditional traffic monitoring.
LFP
LNK LFP
Live
Network
Device 1
Note:
Anytime the configuration switches are changed, remove and then re-apply power for the changes to take effect.
Gigabit Ethernet Aggregation TAP (USB)
RJ45
Ethernet
Ports
This step needs to be done with no power connected to the TAP.
LNK
USB 3.0
Live
Network
Device 2
©2021 USRobotics, a Division of UNICOM Global | www.usr.com
USR4524 - Installation Guide
LFP
LNK LFP
LNK
A
B
ON
1
2
3
4
5
6
7
8
LFP
LNK LFP
LNK
Monitor Port
USB 3.0
USB Port
Connector
Using
USB 3.0
Power

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the USR4524 and is the answer not in the manual?

Questions and answers

Summary of Contents for UNICOM USR4524

  • Page 1 Ethernet cables, connect ports A and B between two live network devices where monitoring is desired. Verify network traffic is flowing, confirming that network cabling is correct. If your USB host is not 3.2 Gen 1 or higher, connect the power supply to the USR4524 and plug it in to an available power source.
  • Page 2 * Synchronization Mode provides a plug-n-play zero configuration design. Synchronization Mode will determine the highest supported speed of network ports [A] and [B]. Ports [A] and [B] will link, then advertise and connect at the highest supported common network speed. ©2021 USRobotics, a Division of UNICOM Global | www.usr.com...
  • Page 3 USB monitor Switch port. LNK LFP USB 3.0 Network Ports Monitor Tool LEDs The USR4524 has 4 LED indicators - 2 for each port as LNK LFP shown to the right. Status Meaning USB 3.0 Link is active FLASHING...
  • Page 4 • At the default settings, the network ports on the USR4524 are set to 1G speed. If these ports are connected to networking devices with manual speed settings, confirm that the devices on either side of the TAP are at the same speed. For optimal results set all connected networking devices to AUTO speed negotiation.
