Summary of Contents for DFRobot FIT0515

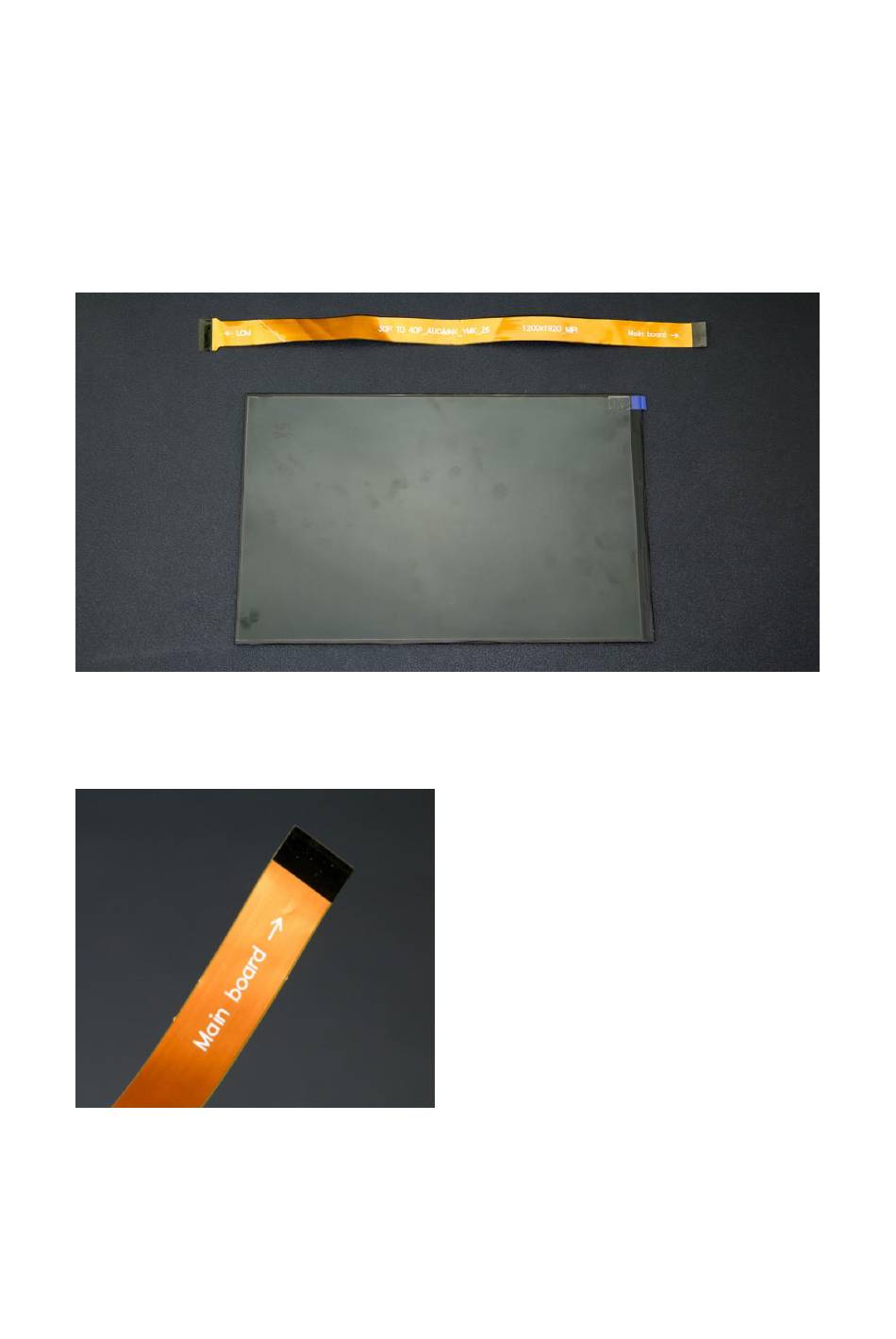

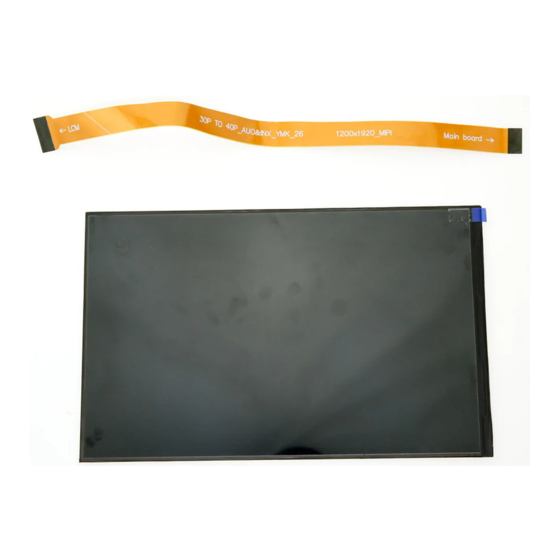

- Page 1 Items 10“display x1 FPC cable x1 LattePanda v1.2 x1 U-disk x1 5V@3A adapter x1 (you can find the recommend list at the bottom of this article) 1. Plug in the FPC cable...
- Page 2 Note: Please connect it with LattePanda BEFORE power-on. And make sure the Golden Finger face the right side. The contacts on FPC are so compact and in order. Please be careful that any dislocation connection may cause the LattePanda short circuit and the IPS display abnormal like ghosting or flicker. Lift up the actuator.
- Page 3 Note: The FPC must be fully inserted in the connector. If not fully inserted, the actuator will not close properly. Should this be the case, lift up the actuator and repeat the process (starting with Step 1 above) Rotate down the actuator until firmly closed. Insert the FPC of display part.
- Page 4 2. Flash bios file on the LattePanda So far, the 10 inch display can only work with LattePanda v1.2 (S70CR200) version. How to Figure out the verison of your lattePanda You can distinguishing between those by the stick on the side of the board. S70CR200 Z8350 ->...
- Page 5 5. Wait the refreshing the BIOS automatically like 5 minutes (or if you connect with the monitor it will returning "fs1:>" (Check the “ ”)) 6. Unplug the U-disk! 7. Restart the system via pressing the reset button or "Ctrl+Alt+Del". Then finish refreshing.
- Page 6 Recommend List 5V 3A adapter https://www.amazon.com/NorthPada-Raspberry-Supply-Charger- Adapter/dp/B01L8DVOFM/ref=sr_1_3?ie=UTF8&qid=1511766081&sr=8-3&keywords=5v+3A https://www.amazon.com/LAP-POW-Android-Charger- Adapter/dp/B075WP8W37/ref=sr_1_2_sspa?ie=UTF8&qid=1511766081&sr=8-2- spons&keywords=5v+3A&psc=1 https://www.amazon.com/Raspberry-Micro-USB-Charger-Raspberry-Pi- Adapter/dp/B00L88M8TE/ref=sr_1_6?ie=UTF8&qid=1511766081&sr=8-6&keywords=5v+3A...
