PRODUCT INSTRUCTIONS
UMS Overview
Precision Acoustics Ltd is pleased to be able to offer our Ultrasonic Measurement System
(UMS).
UMS is a custom built test tank system for making a variety of ultrasound measurements. This
document describes the configuration and connection of the hardware part of the system.
Advertisement
Table of Contents
Summary of Contents for Precision Acoustics UMS
- Page 1 Precision Acoustics Ltd is pleased to be able to offer our Ultrasonic Measurement System (UMS). UMS is a custom built test tank system for making a variety of ultrasound measurements. This document describes the configuration and connection of the hardware part of the system.
- Page 2 Emergency Stop System ..........................5 Filling The Tank ..............................5 Refilling The Tank ..............................5 Digital Storage Oscilloscope ........................6 Host PC ............................... 6 UMS Software ............................6 System setup ..............................6 Parts List ................................. 7 VERSION HISTORY Version Date...
- Page 3 For information relating to the use of the control and post processing software, please refer to the appropriate user manual. Items relevant to the safe operation of the UMS system will be highlighted as per this entry. PRINCIPAL SYSTEM COMPONENTS IMPORTANT NOTE: For user convenience, the components of the UMS are fully assembled and wired together.

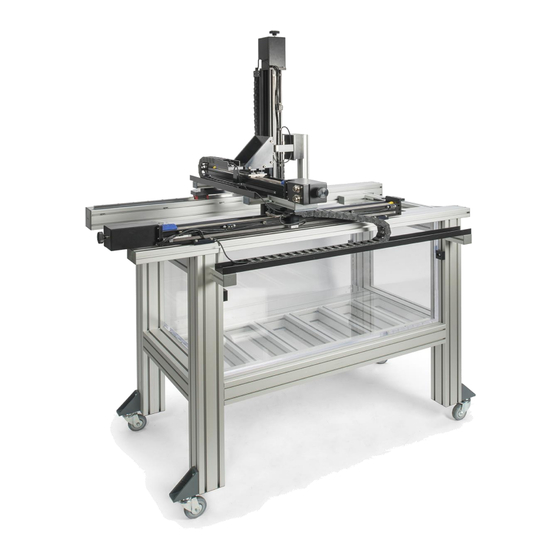

- Page 4 4 of 8 Motion Control Actuators and Frame Description This component is principally concerned with the movement of the hydrophone within the measurement tank. There are four linear motion stages (3 powered, 1 slave). Each linear actuator is based upon a 2mm pitch ball screw that is driven by a stepping motor.
- Page 5 (note the drive controllers remain active via a 24 V dc “logic” supply). This is clearly undesirable if the UMS is in the middle of a measurement, and the cabinet door should therefore be kept shut at all times. A black plastic handle for the cabinet is included with the UMS.
- Page 6 NOTE: the host PC login password is set to ACOUSTICS or Measurement. This PC runs the UMS Software that is at the heart of the UMS. If you have purchased a PC for this purpose from PAL, all the necessary software will have been pre-installed. If however you are using your own PC then further set up will be required.
- Page 7 7 of 8 Motion Host PC Motion Control Stepper Motor Control Drive Control Software Unit Drive Acquisitio Signal Function n Control Trigger Generator Oscilloscope (Not Supplied) Z Axis Motion Control Actuators and X Axis Frame Y Axis Hydrophon e Signal Hydrophone Measureme Ultrasonic...
- Page 8 8 of 8 Linear magnetic encoder Renishaw LM10 Precision read head Acoustics Reference markers Renishaw LM10 Precision Linear magnetic encoder Acoustics scales UMSUMS - USER GUIDE...
