Dover Hydro systems CCS 9900 Series Quick Start Manual

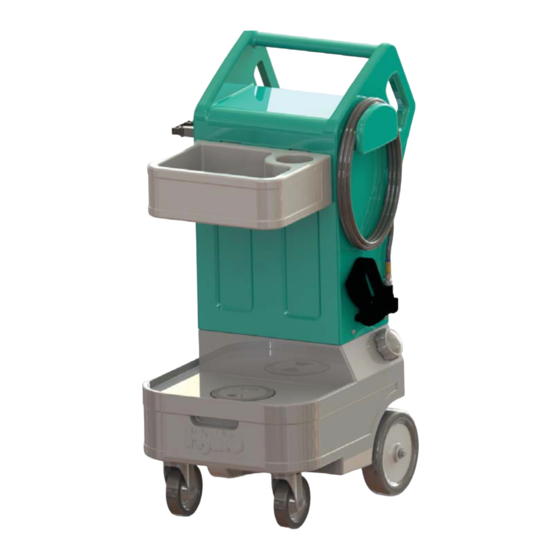

Compact cleaning system
Hide thumbs

Advertisement

Table of Contents

Series 9900
Compact Cleaning System

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Hydro systems CCS 9900 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dover Hydro systems CCS 9900 Series

Summary of Contents for Dover Hydro systems CCS 9900 Series

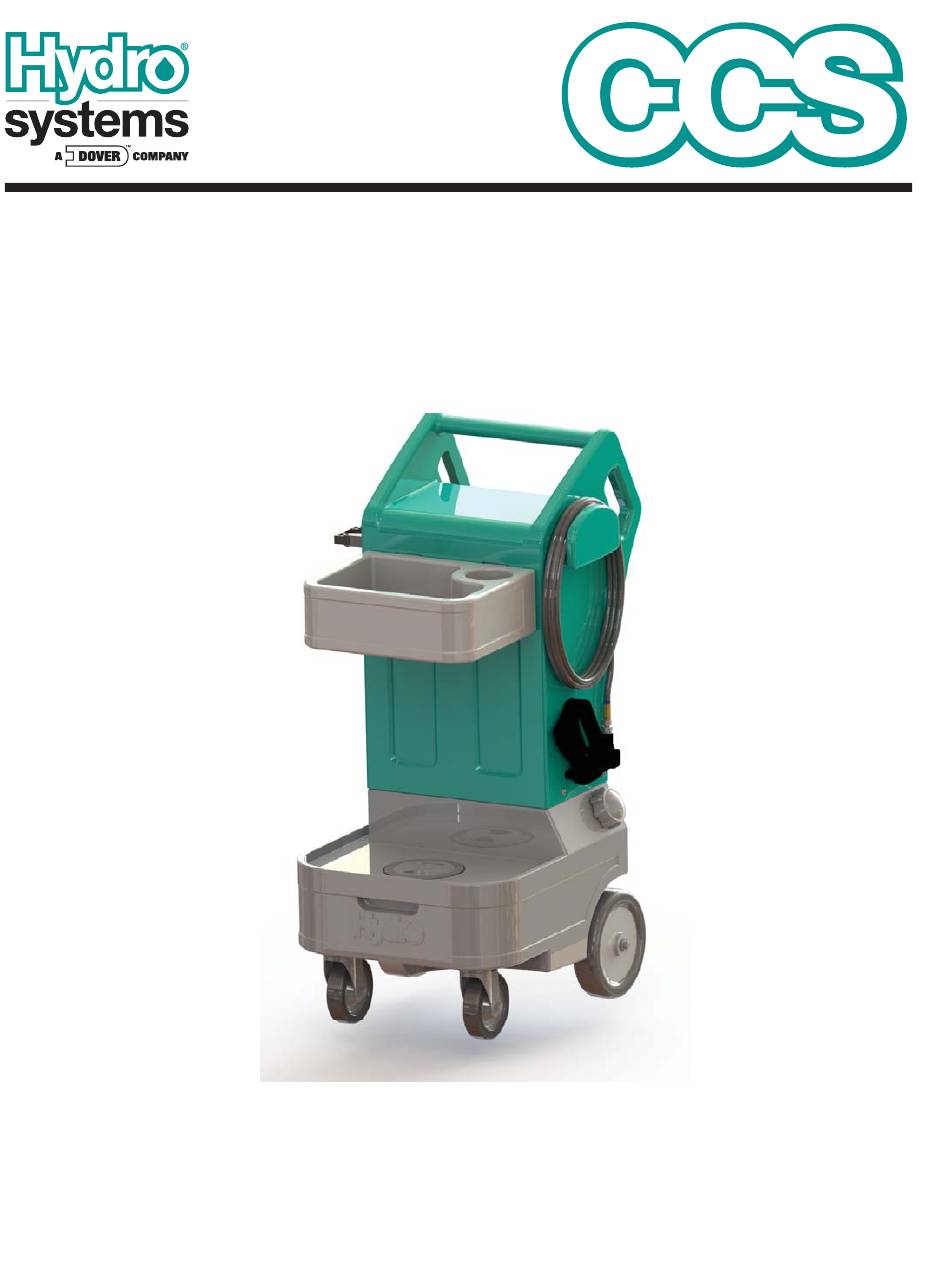

  • Page 1 Series 9900 Compact Cleaning System...
  • Page 2 THANK YOU FOR CHOOSING OUR PRODUCTS Please use this equipment carefully and observe all warnings and cautions. protective clothing and eyewear when working in the vicinity of chemicals or WEAR other materials, when filling or emptying equipment or changing metering tips. re-assemble equipment according to instruction procedures.
  • Page 3 Initial Set-up 1. Remove tubing from checkvalve/ metering tip holder. 2. Push the selected metering tip into metering tip holder. Chemical “A” Chemical “B” 3. Replace tubing. metering tip check valve/metering tip holder Orifice Average Metering Tip Selection Size Color Dilution Ratio The final concentration of the dis-...
  • Page 4 Initial Setup (cont.) 4. The spray attachment is in the accessory box. Attach it to the discharge hose. 5. Remove the black cap from the water fill water port (it rotates COUNTER CLOCKWISE to open). Fill the tank with cool, clear tap fill cap water.
  • Page 5 Normal Operation 1. The power switch is lighted when it is in the “ON” position. 2. The pump will run when the trigger on the spray attachment is pulled and stop when it is released. 3. Run the unit approximately 10 seconds to flush prior chemical from hose. Out of water/chemical indication: When the system runs out of either water or chemical, air will enter the water stream and it will become “rough.”...
  • Page 6 Troubleshooting 1. The spray is weak or there is no spray. The pump does not operate at full flow if there is air in the system. Air can enter the system from several sources: a. Out of water - fill the water reservoir and prime the system. b.
  • Page 7 Parts List Part Number Description 10092250 Pump replacement kit 10097721 Spray nozzle 10092253 Battery 10097041 Battery charger 10092262 Chemical selector valve 10091864 Discharge hose replacement, black 10092252 On/off switch replacement kit 10097039 Caster replacement 10097043 Locking caster replacement 10097042 Wheel replacement 10097038 Inspection port cap (some models) 10092258...
