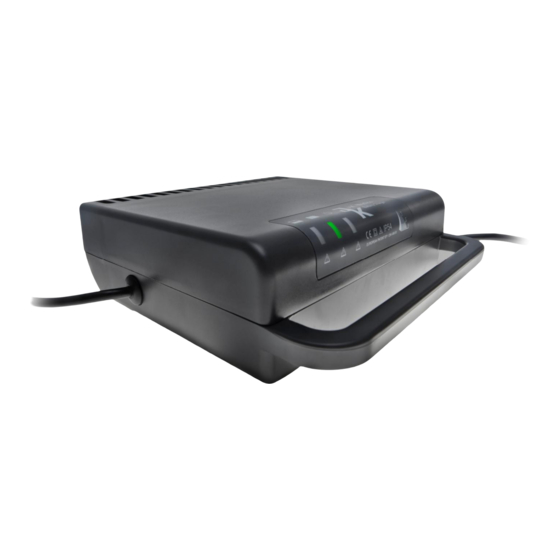

Summary of Contents for Medico ELECTRONICS CCC220

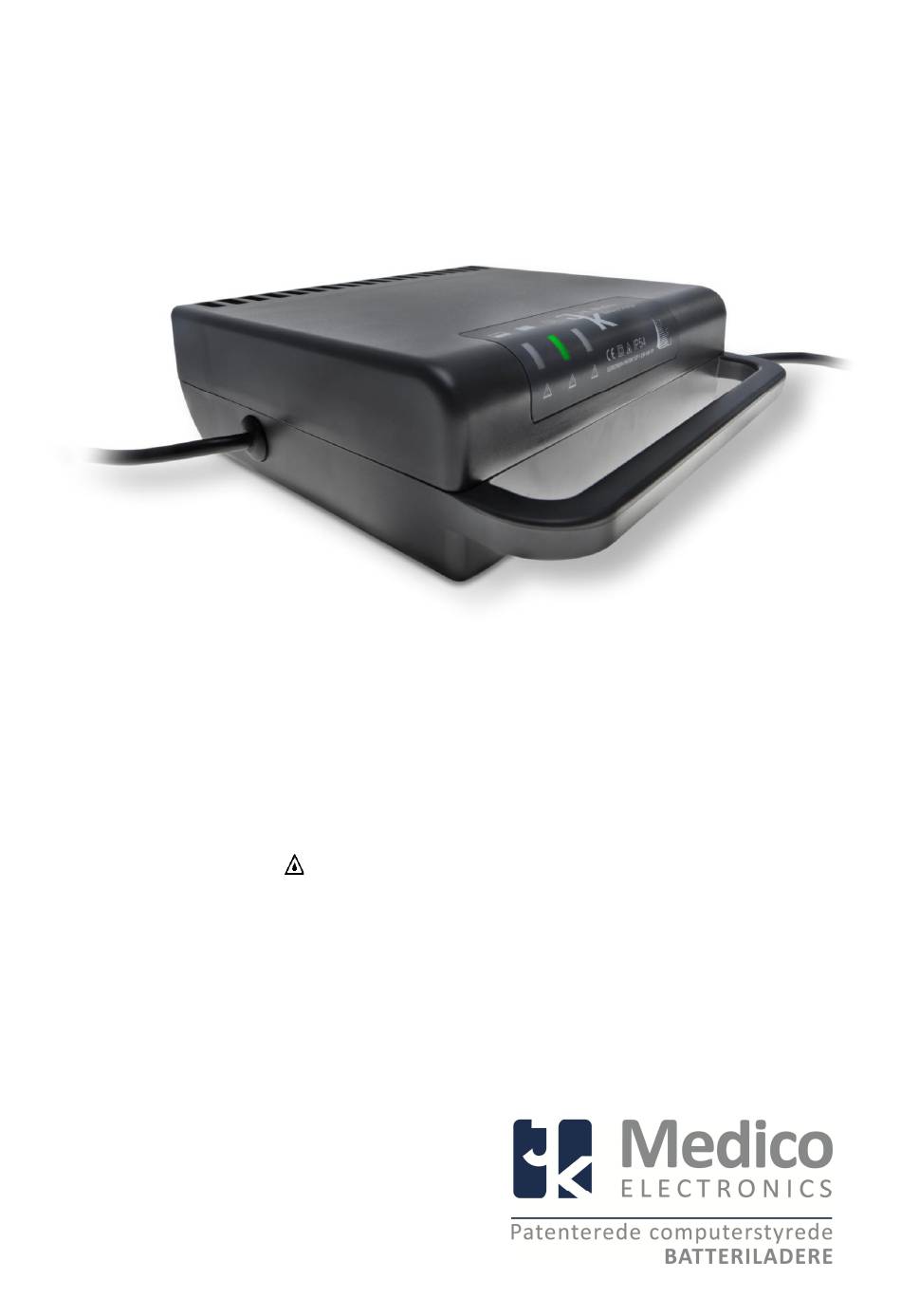

- Page 1 Instructions for battery charger 12V/20A Splash proof, dustproof and water proof IP54, IP65 and IP67 Manufacturer: Tel: +45 4717 1900 E-mail: JK-Medico@JK-Medico.DK J.K.Medico ApS Dam Enge 30 DK-3660 Stenloese WWW.JK-Medico.DK Denmark...
- Page 2 Instructions for chargers CCC Important: Read the instructions before charging NOTE: With regard to the name of the lights: see figure 1 Turn on the charger by connecting the charger's power plug to the outlet. Wait for ERROR to light up (red) and remain on. Connect the charger to the battery The ERROR light goes out and both the CHARGING and COMPLETED lights will be lit for around 1 second while the charger inspects the battery.
-
Page 3: Battery Care
Safety information regarding daily use Important: Safe use means observing the instructions regarding measures prior to use, as well as the charger's location, dismantling, repairs, maintenance and cleaning on page 7. In addition, pay attention to the following: Important: During charging, lead batteries may give off small quantities of explosive gases. Wheelchairs should, therefore, be charged in well-ventilated rooms. - Page 4 Meaning of the flash codes Stage on start-up All lights lit for around 1 second during start-up test From 1 to 15 short flashes on CHARGING depending on charging characteristics (set before delivery) 4 flashes that signal the charger's properties (set before delivery): 1st flash: TCS additional charging (patented).
- Page 5 Fault type Designation Light status 6) CHARGING COMPLETED ERROR Charger Prolonged flash Mains voltage too low Contact electrician fault: ERROR Prolonged flash Fault in charger Contact charger supplier flashes continuously Battery 2 flashes Battery fault: Contact battery supplier fault: Group Charging when flash with significantly depleted...
- Page 6 Ampere-hour meter (measurement of charged capacity) Number Number Charged capacity (ampere-hours) yellow green flashes flashes 32 ampere-hours yellow green (Ah) flashes flashes Figure 2: Display showing charged capacity when the charger are disconnected from the battery once charging has ended.
- Page 7 Technical specifications for CCC Charging current (ripple-free): 20 A Compatible batteries: 12 V, 40 Ah .. 300 Ah – Type Gel, AGM Dimensions, B x H x D (incl. handle): 220 mm x 75 mm x 205 mm Weight: 2.6 kg Efficiency: not less than 90% Short-circuit and faulty polarization safe...
-
Page 8: Prior To Use
Prior to use Important: Check that there are no signs of damage to the casing, cables and plugs before starting to use the charger. Contact your charger supplier in the event of mechanical damage. Important: connect the charger to a mains outlet with easy accessible on/off switch Warning: Chargers with physical damage to their casing, cables or plugs are at risk of short-circuiting and/or are a potential shock hazard and must, therefore, not be connected to mains power or...
