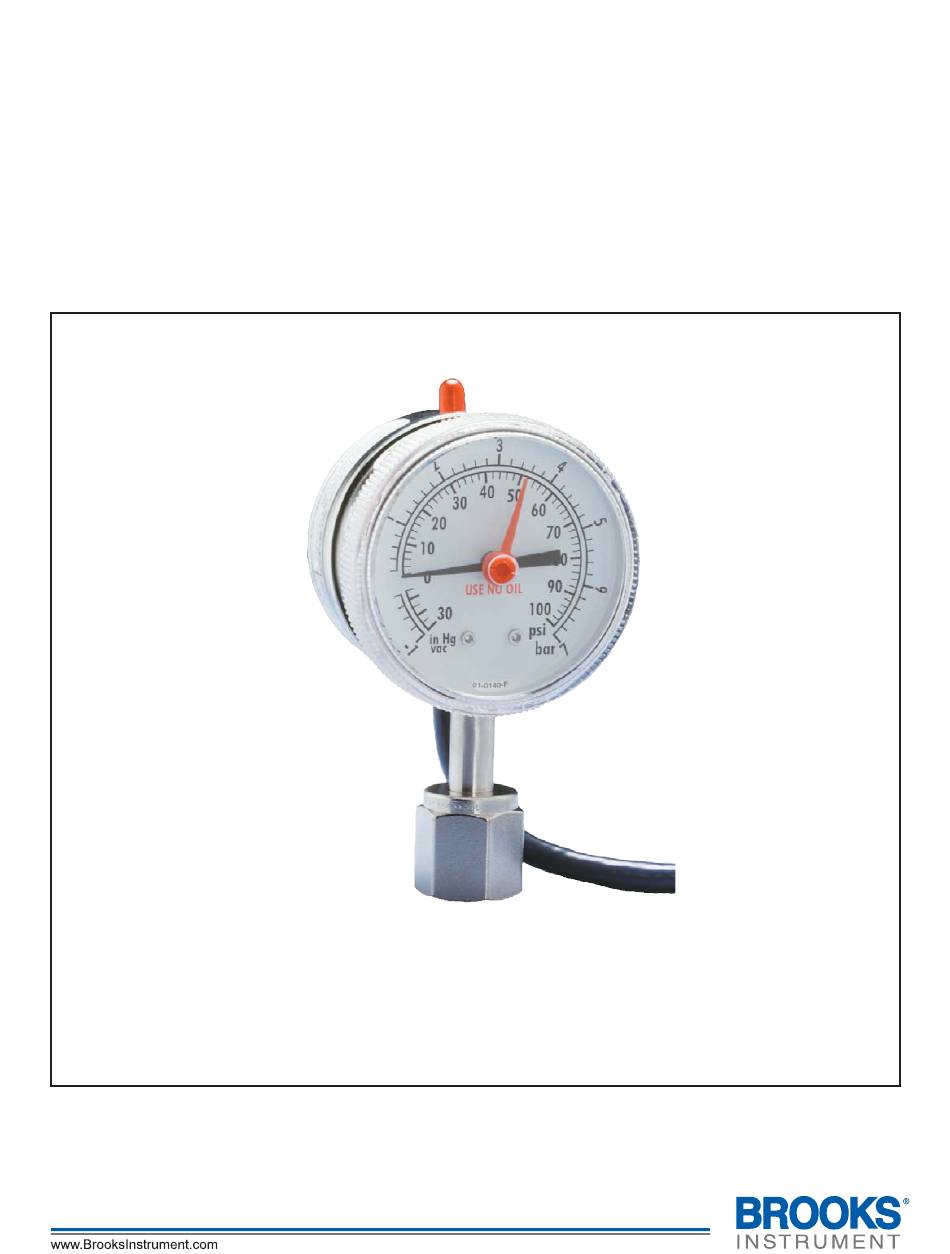

- Page 1 Installation and Operation Manual X-PR-IPS122-eng Part Number: 541B150AAG IPS122 Series January, 2011 ® Brooks IPS122 2 Inch Stainless Steel Indicating Pressure Switches IPS122 2 Inch Stainless Steel Indicating Pressure Switch...
- Page 2 Essential Instructions Read this page before proceeding! Brooks Instrument designs, manufactures and tests its products to meet many national and international standards. Because these instruments are sophisticated technical products, you must properly install, use and maintain them to ensure they continue to operate within their normal specifications.
- Page 3 We appreciate this opportunity to service your pressure measurement and control requirements with a Brooks Instrument device. Every day, customers all over the world turn to Brooks Instrument for solutions to their gas and liquid control applications. Brooks provides an array of flow, pressure and level measurement and control products for various industries from biopharmaceuticals, oil and gas, fuel cell research and chemicals, to medical devices, analytical instrumentation, semiconductor manufacturing, and more.
- Page 4 Installation and Operation Manual X-PR-IPS122-eng Part Number: 541B150AAG IPS122 Series January, 2011 THIS PAGE WAS INTENTIONALLY LEFT BLANK...
-
Page 5: Table Of Contents
Number Number Section 1 General Information Product Description ........................1-1 Specifications ..........................1-2 IPS122 Series Pressure Switch Dimensional Drawings ..............1-3 Section 2 Product Description General ............................2-1 Receipt of Equipment ........................2-1 Recommended Storage Practice ....................2-1 Return Shipment ........................... 2-2 Transit Precautions ........................ - Page 6 Contents Installation and Operation Manual X-PR-IPS122-eng Part Number: 541B150AAG IPS122 Series January, 2011 THIS PAGE WAS INTENTIONALLY LEFT BLANK...
-
Page 7: Product Description
IPS122 Series January, 2011 1-1 Product Description The Brooks IPS122 Series Stainless Steel Indicating Pressure Switch provides a high-purity, precision pressure gauge and electronic switch with an adjustable pressure switch setpoint. This compact 2 inch unit has the ability to operate lights or relays up to a maximum of 12 watts. -
Page 8: Specifications
Section 1 Introduction Installation and Operation Manual X-PR-IPS122-eng Part Number 541B150AAG IPS122 Series January, 2011 1-2 Specifications OFF-ON SWITCH LOGIC OUTPUT LOGIC OUTPUT Type 1 8-30 Vdc 5 Vdc Type 2 Type 3 Case Material 300 Series stainless steel, electropolished... -
Page 9: Ips122 Series Pressure Switch Dimensional Drawings
Section 1 Introduction Installation and Operation Manual X-PR-IPS122-eng Part Number 541B150AAG IPS122 Series January, 2011 1-3 IPS122 Series Pressure Switch Dimensional Drawings 2.28" [57.9 mm] 1.88" [47.8 mm] 2.20" [55.9 mm] Cable Diameter: 0.23" 1.18" [30.1 mm] FRONT VIEW SIDE VIEW 1.32"... - Page 10 Section 1 Introduction Installation and Operation Manual X-PR-IPS122-eng Part Number 541B150AAG IPS122 Series January, 2011 THIS PAGE WAS INTENTIONALLY LEFT BLANK...
-
Page 11: General
Part Number 541B150AAG IPS122 Series January, 2011 2-1 General ® This section provides installation instructions for the Brooks IPS122 Series Indicating Pressure Switch devices . Refer to Section 1 of this manual for dimensions and process connections. 2-2 Receipt of Equipment When the instrument is received, the outside packing case should be checked for damage incurred during shipment. -
Page 12: Return Shipment
IPS122 Series January, 2011 2-4 Return Shipment Prior to returning any device to the factory, visit the Brooks web site (www.BrooksInstrument.com) for a Return Materials Authorization Number (RMA#), or contact one of the locations provided on p. 2-1. Prior to returning the device, it must be purged in accordance with the... -
Page 13: Installation
Failure to follow these procedures may adversely affect the product’s perfor- mance and could void the product warranty. Inspect but DO NOT unwrap any parts until installation. Contact your Brooks representative with any problems. In most cases, physical mounting, wiring to the power supply and control circuit, and setting setpoint is all that is required to complete installation of the IPS pressure switch as received from the factory. -
Page 14: Electrical Connections
IPS122 Series January, 2011 BOTTOM BACK Setpoint Adjust Screw Removable Remove Standoffs ONLY these3 screws Figure 2-1 IPS122 Internal Jumper Settings 2-11 Electrical Connections Refer to the appropriate wiring diagram for wiring connections to the IPS pressure switch. (Figure 2-2) - Page 15 *Logic Out: Black (Logic Out) + 5 VDC setpoint exceeded, Green (-Common) 0 VDC normal Green (-Common) Pigtail *Note: Operates logic devices to Leads a maximum sink of 60 mA Braided IPS-122 Shield and Drain Wire Figure 2-2 IPS122 Wiring Diagrams...
-
Page 16: Setpoint Adjustment
Section 2 Installation Installation and Operation Manual X-PR-IPS122-eng Part Number 541B150AAG IPS122 Series January, 2011 2-12 Setpoint Adjustment NOTICE Note: Moving the red-pointer does not change the setpoint. It is merely a visual reminder of where setpoint was previously set. - Page 17 Section 2 Installation Installation and Operation Manual X-PR-IPS122-eng Part Number 541B150AAG IPS122 Series January, 2011 No routine maintenance is required on this device. If it becomes necessary to remove the device from the system after exposure to toxic, pyrophoric, flammable or corrosive gas, purge the device thoroughly with a dry inert gas such as Nitrogen before disconnecting gas connections.
- Page 18 BROOKS SERVICE AND SUPPORT Brooks is committed to assuring all of our customers receive the ideal flow solution for their application, along with outstanding service and support to back it up. We operate first class repair facilities located around the world to provide rapid response and support.
