Summary of Contents for TitanTec TT-BC620T
- Page 1 TT-BC620T...
- Page 2 ORIGINAL INSTRUCTION Symbols and warning labels on the machine.
- Page 3 这 1. Air filter cover 2. Primer bulb 11. Shaft 3. Choker lever 12. Guard 4. Fuel tank 13. 3 Teeth blade 5. Pull start 14. Gear case 6. Handle 15. Nylon spool 7. Throttle control 8. ON/OFF switch 9. Throttle trigger GB02...
- Page 4 Model TT-BC620T Engine Displacement 62cm3(air-cooled,2-stroke) Max. Engine power 2.6 KW/8500/min Max. Engine speed 9000/min Recommend idling speed 3000/min Type of carburetor Diaphragm type Fuel tank capacity 900 ml Fuel mixture Ratio Petrol 25 : Oil 1 Weight without fuel, harness, cutting attachment and guard 7.8 kg...
- Page 5 SYMBOLS AND WARRNING LABELS ON THE MACHINE...
- Page 8 2. Cleaning and maintenance machine before storage. 3. Use of a transport cover for metal blades during transport and storage.
-
Page 9: For Safe Operation
5. FOR SAFE OPERATION AVOID KICKBACK GENERAL WORKING INSTRUCTION The best protection is to avoid situations that lead to setback s. 1.Keep the position of the upper guide rail always in mind. QUICK RELEASE 2.Be especially careful when cutting in affected areas. There is an easily accessible, quic release fitted 3.Cut only one branch at a time. - Page 10 Beware of blade thrust!
- Page 11 ２５...
Need help?
Do you have a question about the TT-BC620T and is the answer not in the manual?
Questions and answers

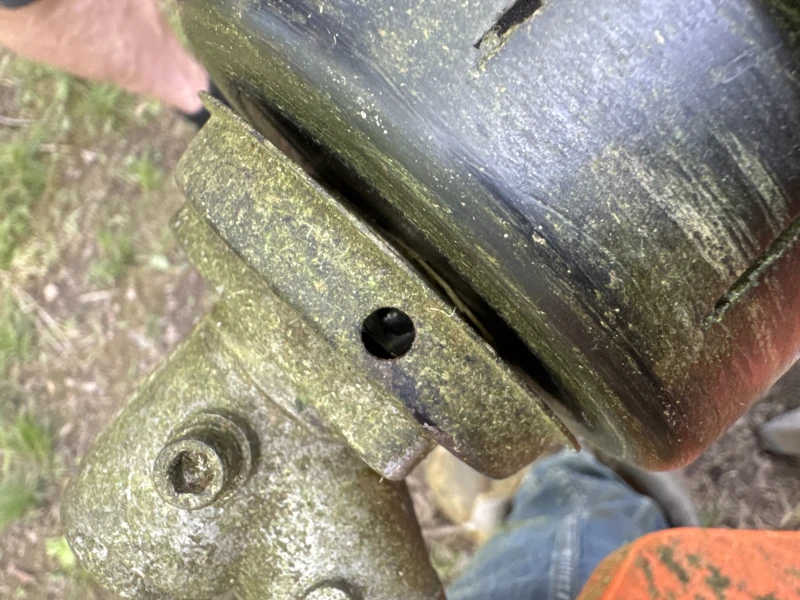

What size Allen wrench to remove stringer head
