Summary of Contents for BRAND HL858A1-Z

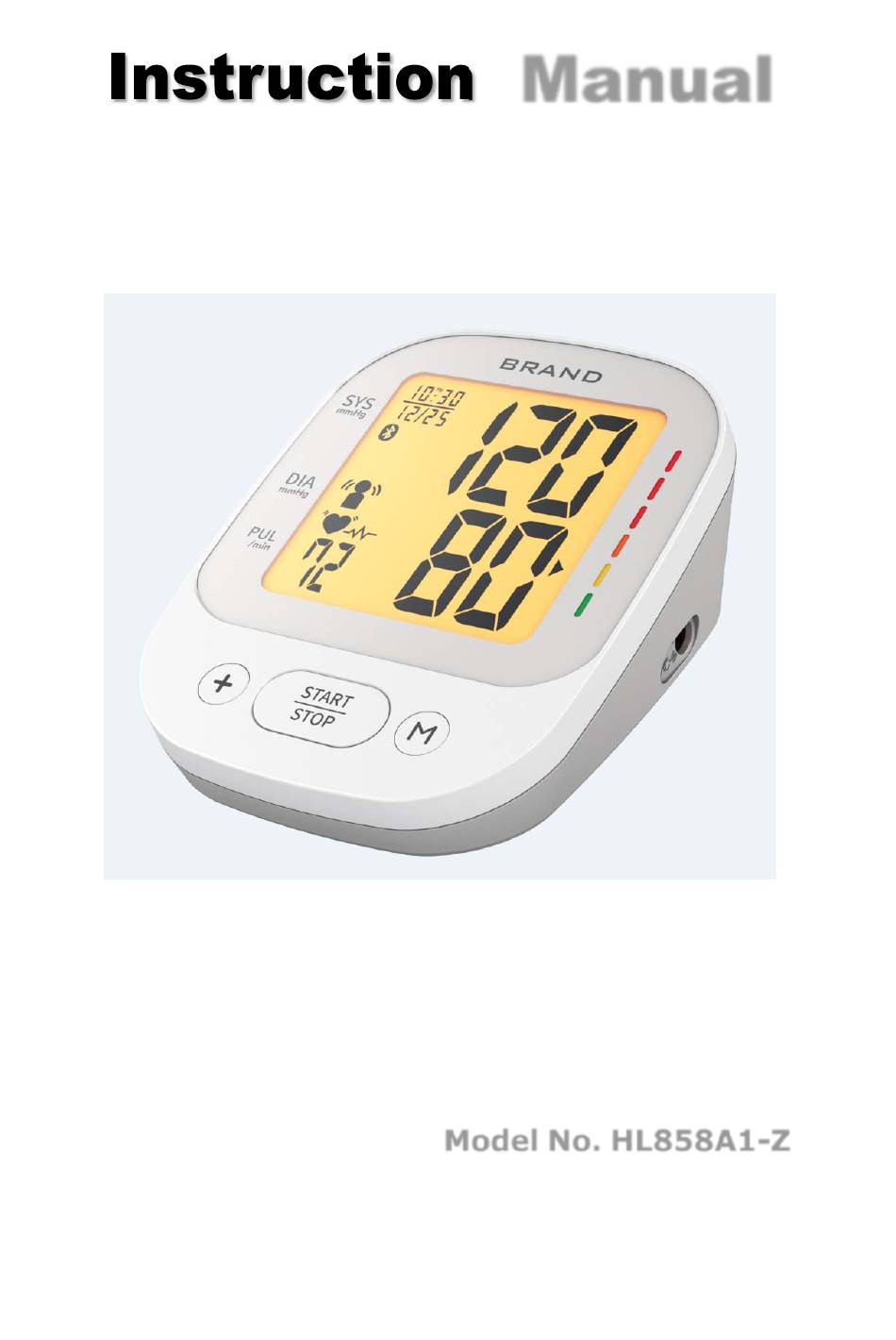

- Page 1 Manual Automatic Upper Arm Blood Pressure Monitor Model No. HL858A1-Z ...
-
Page 2: Table Of Contents
Table of Contents Medical Disclaimer Medical Disclaimer……………………………………………………………………………03 Intended Use………………………………………………………………………………..…03 About Blood Pressure………………………………………………………………………04 Precautions…………………….…………………………………………………………………06 Device Overview……………………………………………………………………………….08 Symbol Definitions………………………………………………………………………….09 Features……………………………………………………………………………………………11 Bluetooth Transmission………………………………………………………………….14 Installing Batteries………………………………………………………………………….16 U s i n g t h e a d a p t e r… … … … … … . … … … … … … … … … … … … … … … … … … … 1 7 Applying the Cuff…………………………………………………………………………….18 Measurement Procedure………….…………………………………………………….19 Memory Function…………………………………………………………………………….22... -
Page 3: Medical Disclaimer
Intended Use HL858A1-Z automatically measures human’s Systolic, Diastolic blood pressure and heart rate by using the oscillometric method during inflation. All values can be read out in one LCD panel. Measurement position is at human being’s upper arm. -
Page 4: About Blood Pressure
About Blood Pressure What is blood pressure? Blood pressure is the measurement of the force of blood pushing against the walls of the arteries. Arterial blood pressure is constantly fluctuating during the course of the cardiac cycle. The highest pressure in the cycle is called the systolic blood pressure, and represents the pressure in the artery when the heart is beating. - Page 5 About Blood Pressure WHO blood pressure classifications: Standards for assessment of high or low blood pressure without regard to age, have been established by the World Health Organization (WHO), as shown in the chart. However this chart is not exact for classification of blood pressure and it's intended to be used as a guide in understanding non-invasive blood pressure measurements.
-
Page 6: Precautions
Precautions Read the Instruction Manual thoroughly before measuring and keep it at hand for your reference at any time. The device is designed for home use and not suitable for clinical use. The patient is an intended operator, who can operate the device by himself or herself, not necessarily by a physician or operator. - Page 7 Precautions For those who have had mastectomy surgery (especially whose’ lymph nodes removed), it’s recommend take a measurement on the unaffected side. When used among medical electronic equipment on the same limb, pressurization of the cuff may cause temporarily malfunction to other devices.
-
Page 8: Device Overview

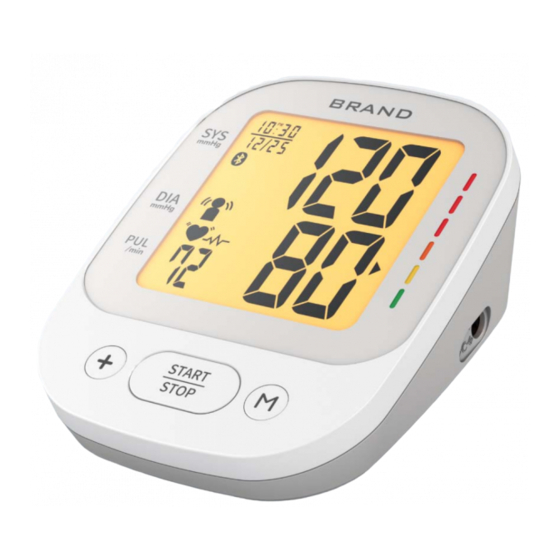

Device Overview Device Overview Part Names and Product Components LCD Display BP Category Indicator Arm Cuff Hole 5V 1A adapter jack Set Button Memory Button START/STOP Button ARM CUFF WITH TUBE 4 AAA “LR03”... -
Page 9: Symbol Definitions
Symbol Definitions Device Overview Unit Display Hour: Minute (Also represents YEAR in Setting Mode) Systolic Rate Month/Date Bluetooth Symbol Average of Last 3 Measurements Blood Pressure Unit Low Battery Symbol BP Category Indicator Pulse Symbol Diastolic Rate Irregular Heartbeat ... - Page 10 Symbol Definitions SYMBOLS Definitions This symbol appears when the battery power is excessively low or the polarity reverses. We suggest you replace all batteries with new ones, and Low Battery Symbol make sure the +/- polarities are properly positioned. Once pulse is detected, the symbol flashes with each pulse beat.
-
Page 11: Features
Features BP Category Indicator This device is equipped with BP Category Indicator which classifies your blood pressure measurements into six stages (Optimal to Severe hypertension) as shown in below chart: Stages of Blood Systolic Diastolic Recommendations by Color Pressure Levels (mmHg) (mmHg) - Page 12 Features Irregular Heartbeat Detector The symbol will appear on screen indicating a certain heartbeat irregularity was detected during measurement. The heartbeat rhythm that is more than or less than 25% from the average rhythm is usually defined as an irregular heartbeat rhythm. Talking, moving, shaking or an irregular pulse during the measurement can result in the appearance of this symbol.
- Page 13 Features Talking Function The device features a Talking Function, for you to hear your measurement results. This function default setting is on. Under standby mode, user can switch the “ ” function ON or OFF. By pressing button for 3 seconds, the device will enter to setting year, date and time first.
-
Page 14: Bluetooth Transmission
Under standby mode, user can press the “M” button for 3 seconds to activate Bluetooth function, and Bluetooth symbol will flash on the screen. 2. If HL858A1-Z is connected successfully to your smart device, Bluetooth symbol will appear on the screen. ... - Page 15 □ Bluetooth 4.2 for Android 6.0 or above □ Bluetooth 4.2 for iOS 7.0 or above NOTE: HL858A1-Z is subject to and complies with electromagnetic compatibility (EMC) standard of IEC 60601-1-2, EN 301 489-1, EN 301 489-17, EN 300 328 and U.S.
-
Page 16: Installing Batteries
Installing Batteries When LOW BATTERY SYMBOL appears on the display, or no reaction toward operation, please change batteries. Replace all worn-out batteries with new ones and do not mix new and used batteries. Do not mix alkaline, standard (carbon-zinc) or rechargeable (cadmium) batteries either. -
Page 17: U S I N G T H E A D A P T E
Using the adapter This device is designed for operation with batteries or an adapter. According to different adapter jack of the device designed (AC/DC or micro USB or Type-C jack), Please use only a compatible adapter with required voltage and current as indicated in this manual. *Note ！... -
Page 18: Applying The Cuff
Applying the Cuff Wrap the cuff on a bare arm or over thin clothing. Thick clothing or a rolled up sleeve will cause inaccurate blood pressure measurements. Press your brachial artery approximately 1 inch (2 ~ 3 cm) above the elbow on ... -
Page 19: Measurement Procedure
Measurement Procedure Switching on the monitor A. Press START/STOP button to switch on the monitor, All segments appear on the screen for 3 seconds. The monitor will automatically turn to standby mode. ALL SEGMENTS STANDBY MODE Setting year, date and time ... - Page 20 Measurement Procedure 2. Using your Bluetooth smart device. The date and time on your monitor can be automatically updated, when you connect it with your smart device. Once the date and time have been successfully synced, future readings will automatically have the correct date and time.
- Page 21 Measurement Procedure After the monitor has determined your blood pressure and heart rate, the cuff automatically deflates. Your systolic rate, diastolic rate, heart rate and corresponding BP Category Indicator, irregular heartbeat detector and excessive body motion detector (if any) are displayed with date and time for 1 minute and save results to memory automatically.
-
Page 22: Memory Function
Memory Function Storing data After each measurement, the systolic and diastolic pressure, heart rate and BP Category Indicator, irregular heartbeat detector and excessive body motion detector (if any) with the time and date will be automatically stored. The monitor features 2 user memory capabilities. Each user holds the last 120 measurements, and automatically replacing the oldest data with a new one. -
Page 23: Storage And Maintenance
Storage and Maintenance General Use Do not in any way twist the cuff. Do not press START/STOP button if the cuff is not wrapped around your upper arm. Do not drop the product and avoid any strong impacts. ... -
Page 24: Troubleshooting
Troubleshooting INDICATION/ SYMBOLS/SYMPTOMS CONDITIONS/CAUSES CORRECTION Unit does not turn on Worn-out batteries. Replace them with 4 new AA (LR6) alkaline when START/STOP batteries. button is pushed. Battery polarities have been Re-insert the batteries in the correct positioned incorrectly. positions. Measuring Error Symbol Wrap the cuff properly so that it is appears when blood... - Page 25 Please re-pairing the BPM and Bluetooth - Paring has not been completed. enabled device with each other. See the “the Bluetooth Transmission” Bluetooth function is not turn on. section to turn on Bluetooth function. The distance between BPM and Please make sure the acceptable distance Bluetooth-enabled device is out of (≦10 meters) with each other.
-
Page 26: Limited Warranty
Limited Warranty Warranty For Two Year from the manufacturing date Please note that this warranty does not cover damage caused by misuse or abuse; accident; the attachment of any unauthorized accessory; alteration to the product; improper installation; unauthorized repairs or modifications; improper use of electrical/power supply;... -
Page 27: Specifications
Specifications Model Number HL858A1-Z Measurement Method Oscillometric (inflation) Rated Range of Cuff 0 ~ 300 mmHg Pressure Rated Range of 40 ~ 280 mmHg Determination Measurement Range 40~199 beats/minute of Heart Rate Pressure: ± 3 mmHg Accuracy Pulse: ± 5 % Max. - Page 28 Specifications RF Type Bluetooth 4.2 BLE RF Modulation GFSK Equivalent Isotropic 3.91dBm Radiated Power Data Throughput 1Mbps Expected Delay (Latency The latency time is less than 0.3ms from Range) in Wireless (RF) sender to receiver. Communication Channel Quality-Driven Data Rate (CQDDR) Integrity technology increases the effective data rate and integrity in noisy environments.
-
Page 29: Note
Note Explanation of symbols : Symbol Explanation Health & Life Information Refer to instruction manual/booklet TYPE BF Applied Part Warning: Portable RF communications equipment (including To avoid inaccurate results peripherals such as antenna cables and external antennas) should be used no closer than 30cm (12 caused by electromagnetic inches) to any part of the device, Otherwise, interference... - Page 30 ！ “Changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment”. HL858A1-Z essential performance per IEC 80601-2-30 additional essential performance requirements: 201.12.1.102 Limits of the error of the manometer from environmental ...
-
Page 31: Appendix
Appendix Guidance and manufacturer’s declaration – electromagnetic emissions The device is intended for use in the electromagnetic environments listed below, and should only be used in such environments: Emissions test Compliance Electromagnetic environment – guidance RF emissions RF energy is used only to maintain device’s operation. - Page 32 Appendix Recommended separation distances between portable and mobile RF communication equipment and the device. The device is intended for use in an electromagnetic environment where radiated RF disturbances are under control. User can help prevent electromagnetic interference by keeping the device at a minimum distance from portable and mobile RF communications equipment (transmitters).
- Page 33 Appendix Test specifications for enclosure port immunity to RF wireless communications equipment. IMMUNITY Test frequency Modulation TEST LEVEL (MHz) (V/m) Pulse modulation 18 Hz FM ± 5 kHz deviation 1kHz sine Pulse modulation 217 Hz Pulse modulation 18 Hz 1720 1845 Pulse modulation 217 Hz...
-
Page 34: Blood Pressure Diary
Blood Pressure Diary □ Before Date： Time： Meal □ After Systolic / Diastolic： Pulse： □ Before Date： Time： Meal □ After Systolic / Diastolic： Pulse： □ Before Date： Time： Meal □...
