PRODUCT BULLETIN
MGS-402 24V
Connection to External Power Supply

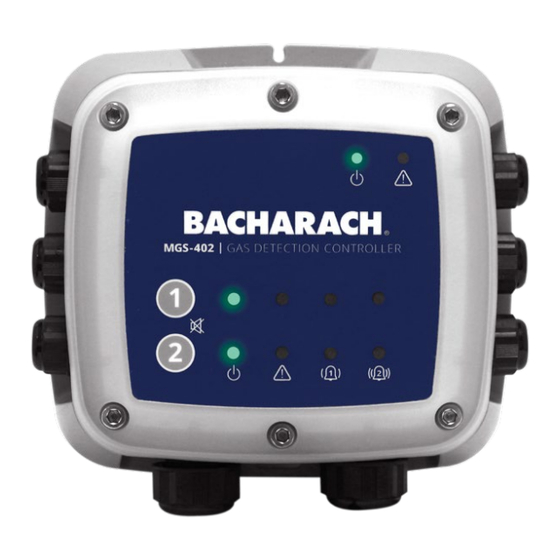

Congratulations on the purchase of your new MGS-402 24V DC
Gas Detection Controller.
Your MGS-402 24V DC does not have an internal mounted 120V-
240VAC 50/60Hz power source as a result the power line input
connector was removed. It is necessary to supply this controller
with 24V DC power. We recommend using the Bacharach Switch-
Mode Power Supply Module (PN #1100-1089) to supply the unit
with power.
Always read all provided instructions prior to installation and operation of the equipment. Always follow
any and all applicable local laws, codes, and standards when wiring and installing your equipment.
The following information varies from the MGS-402 User manual (PN #1100-2578) provided with your
controller.
2.5 Components (MGS-402 User Manual
#9: 100-240VAC 50/60Hz Power Line Input & #10: Power Supply have been removed.
1100-1092tttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttt
, Page 6)
PN #1100-2578
Bacharach
|
myBacharach.com
|
1
Advertisement
Table of Contents
Summary of Contents for Bacharach MGS-402 24V
- Page 1 Congratulations on the purchase of your new MGS-402 24V DC Gas Detection Controller. Your MGS-402 24V DC does not have an internal mounted 120V- 240VAC 50/60Hz power source as a result the power line input connector was removed. It is necessary to supply this controller with 24V DC power.
- Page 2 The MGS-402 Controller 24V DC will ONLY work if powered via 24V DC derived from an external power source. Bacharach Switch-Mode Power Supply Module (PN #1100-1089) is recommended to supply the unit with power. Please use the below wiring diagram when wiring the Switch-Mode Power Supply Module (PN #1100-1089) to an MGS-402 Controller.
