BRYAN STEAM
Compact Boiler Feed Systems
Capacities from 20 to 80 boiler HP for 15 through 150 PSI boilers

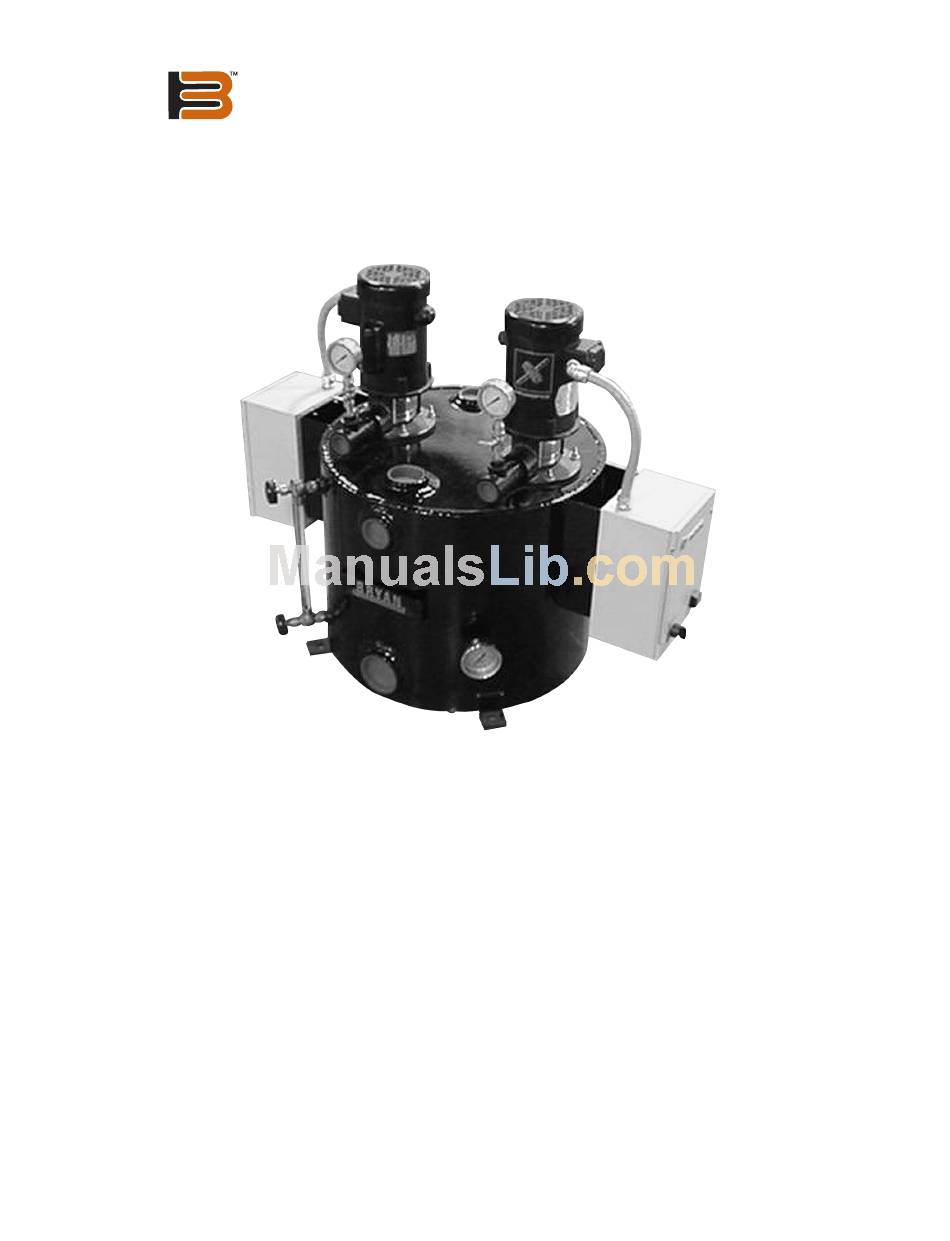

Duplex model
CFS-15-20-20D
The Bryan compact boiler feed system requires a minimal
amount of boiler room space while providing many of the same
rugged features as competitive stand-mounted feed systems.
Performance Features
• Designed to feed 15 through 150
PSI design boilers
• Atmospheric tank built from heavy
1/4" minimum steel thickness
• Tank sizes from 20 to 80 gallons
• Designed to feed 20 through 80
HP boilers
• Easily maintained
• Factory packaged unit for ease
of installation
shown
Construction Features
• Available with simplex or duplex pumps
• Top mounted pumps for ease of
maintenance and replacement
• TEFC pump motors are standard
• Pump discharge pressure gauges
and tank thermometer are standard
• All units designed to fit through
standard 36" doorway
• Optional electrical accessories
are available
Form No. 5510
(1/01)
Advertisement
Table of Contents
Related Manuals for Bryan Boilers CFS-15-20-20D
Summary of Contents for Bryan Boilers CFS-15-20-20D
- Page 1 BRYAN STEAM Compact Boiler Feed Systems Capacities from 20 to 80 boiler HP for 15 through 150 PSI boilers Duplex model CFS-15-20-20D shown The Bryan compact boiler feed system requires a minimal amount of boiler room space while providing many of the same rugged features as competitive stand-mounted feed systems.
-
Page 2: Specifications
Drain and clean-out connection Temperature gauge connection Make-up control float assembly Gauge glass 10. Boiler feed pump 11. Pump discharge connection Dimensions are for reference only and may change without notice. Consult factory for certified dimensions. Model Simplex Duplex CFS-✶-20-20S CFS-✶-20-20D CFS-✶-40-40S CFS-✶-40-40D...
