ON
Push 1x, display will show ON. During first start-up display will also flash the current
frequency (50H=50Hz)
after INIT; finally the room temperature will appear. Air-blower (CPAC) or
evaporator water-pump (Chiller) will start.
Depending on controller setting unit will start in cooling or heating mode. When unit
won't start, error codes
will appear. See Troubleshooting.
OFF
Push 1x, unit and display will automatically shut-off when running.
MEMO
Push 1x, to memorize new settings during programming.
RETURN
Push 1x, display will return to room temperature during FUNCTION mode
programming.
FUNCTION
Push 1x, shows b... for blower setting.
Push 2x, shows E** or H** for evaporator temp.
Push 3x, shows CODE, entering code will give access to programming mode level
2. (Default=64)
Change b... or enter CODE by pushing up or down key, after 5 seconds new
settings will be auto memorized.
UP
Push 1x will show actual set point, further pushing will raise the set point and
memorize automatically.
BLOWER
Shows actual blower setting, bA automatic or b1-b5 for manual, adjustable by up or
SPEED
down key.
DOWN
Push 1x will show actual set point, further pushing will lower the set point and auto
memorized.
Advertisement
Summary of Contents for Webasto Azimut 43 Fly

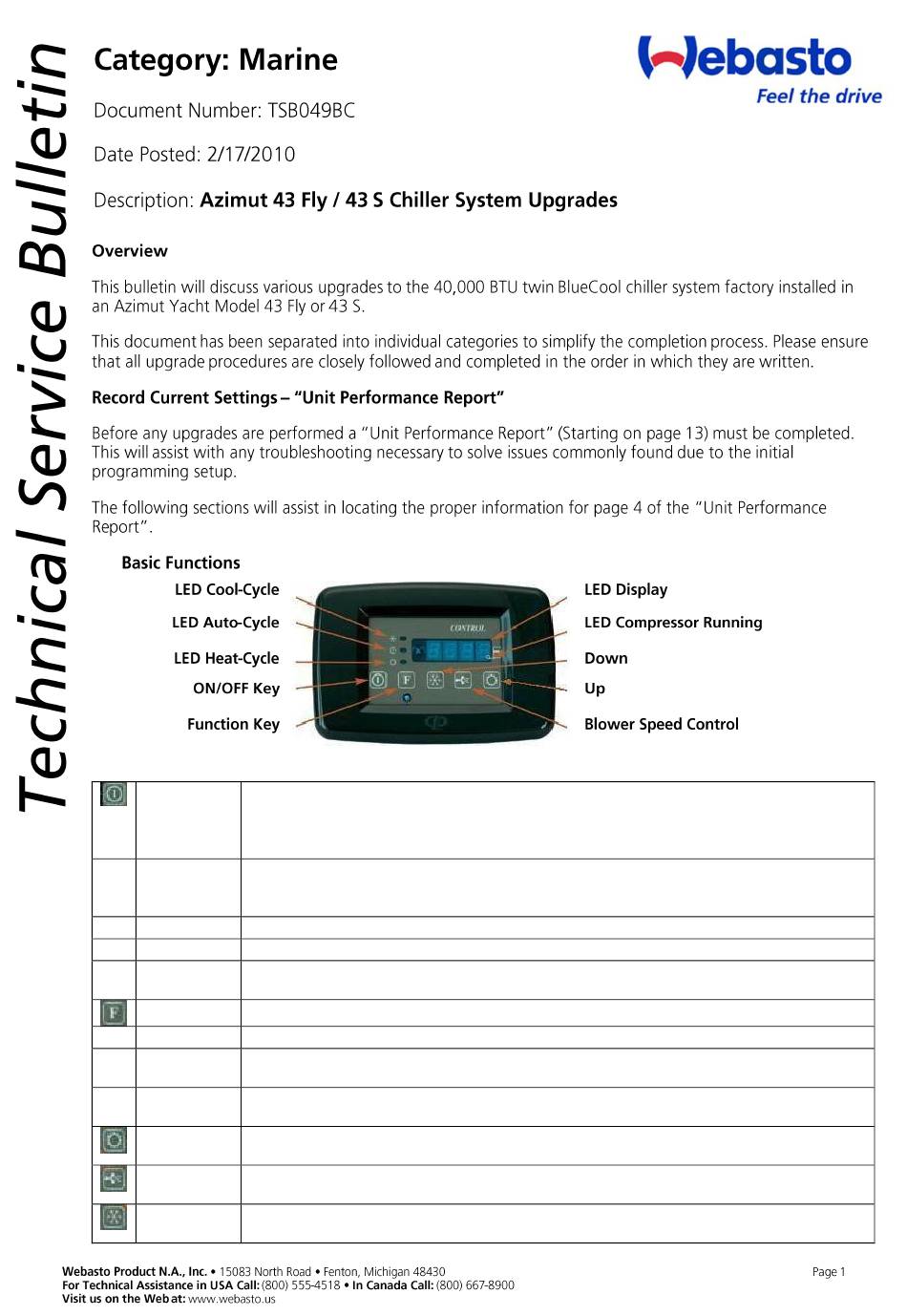

- Page 1 Push 1x, display will show ON. During first start-up display will also flash the current frequency (50H=50Hz) after INIT; finally the room temperature will appear. Air-blower (CPAC) or evaporator water-pump (Chiller) will start. Depending on controller setting unit will start in cooling or heating mode. When unit won't start, error codes will appear.
- Page 2 When security CODE is activated, push 3x FUNCTION when unit is running till CODE appears in the display. Set security CODE by pushing UP or DOWN and confirm with FUNCTION. (Default = 64) When security CODE is not activated, entering the security CODE will not be demanded. Scroll through settings by pushing FUNCTION, values can be set by UP or DOWN key confirmed with FUNCTION.
- Page 3 Default Function Description Setting Chiller CPAC AirH. Recommended ● Compresso P123 = starting sequence P123 r starting 1,2,3,4 sequence P341 = starting sequence 3,4,1,2 >>> etc. P A = Automatic random starting sequence. Only set PA, P3** or P4** for 3 or 4 compressor units.
- Page 4 Default Code Description Possible Chiller CPAC AirH. Recommended Min. 35/ Max.55 ˚C ● ● T cut-out in heat cycle. 40 Chiller With external heater 45 CPAC (e.g. Thermo90S/ST) (00 Air set 55˚C. handler) On Reversed cycle set 42˚C max. or less. Be aware of right settings for each component.
-
Page 5: Warranty
15˚C Menu Default Code Description Possible Chiller CPAC AirH. Recommended ● ● Low AC voltage cut-out Min.160 / Max.210 Volt Chiller/CPAC Starting surge voltage drops are not taken into account. After 90 seconds a restart will be attempted. Settings below 195 V will void WARRANTY! ●... - Page 6 Default Code Description Possible Chiller CPAC AirH. Recommended ● ● ● Set security CODE. 00 = No access code 64 Chiller / required. Possible to CPAC set at 01 - 99. 00 Air handler If security code is set active, only the temperature set point and blower speed settings can be...
- Page 7 All contacts from both compressor relays and capacitors...
- Page 8 Bleed Valve...
- Page 10 Cut old mount Carefully apply upward pressure to compressor...
- Page 11 New Compressor Spacer (PPC301010A) ” ½” ½” Anti-Vibration Plate...
