Summary of Contents for RC Electronics Finch RF
- Page 1 Finch RF Ground unit for Sparrow / Raven onboard telemetry. Manual version: 1.0 RC Electronics support@rc-electronics. eu www.rc-electronics.eu...
- Page 2 Contents Introduction..............................3 Key features.............................3 Specifications............................3 Using the Finch RF module........................5 Powering the module..........................5 Update and configuration via SD card....................5 Revision history............................6 - Ground unit for Sparrow / Raven onboard telemetry. Page 2...
- Page 3 Introduction The Finch RF unit is designed as ground unit for Sparrow / Raven onboard module. It represents a bridge between RF link and USB data transfer to an Android tablet or phone running Albatross App to display data. Key features ...

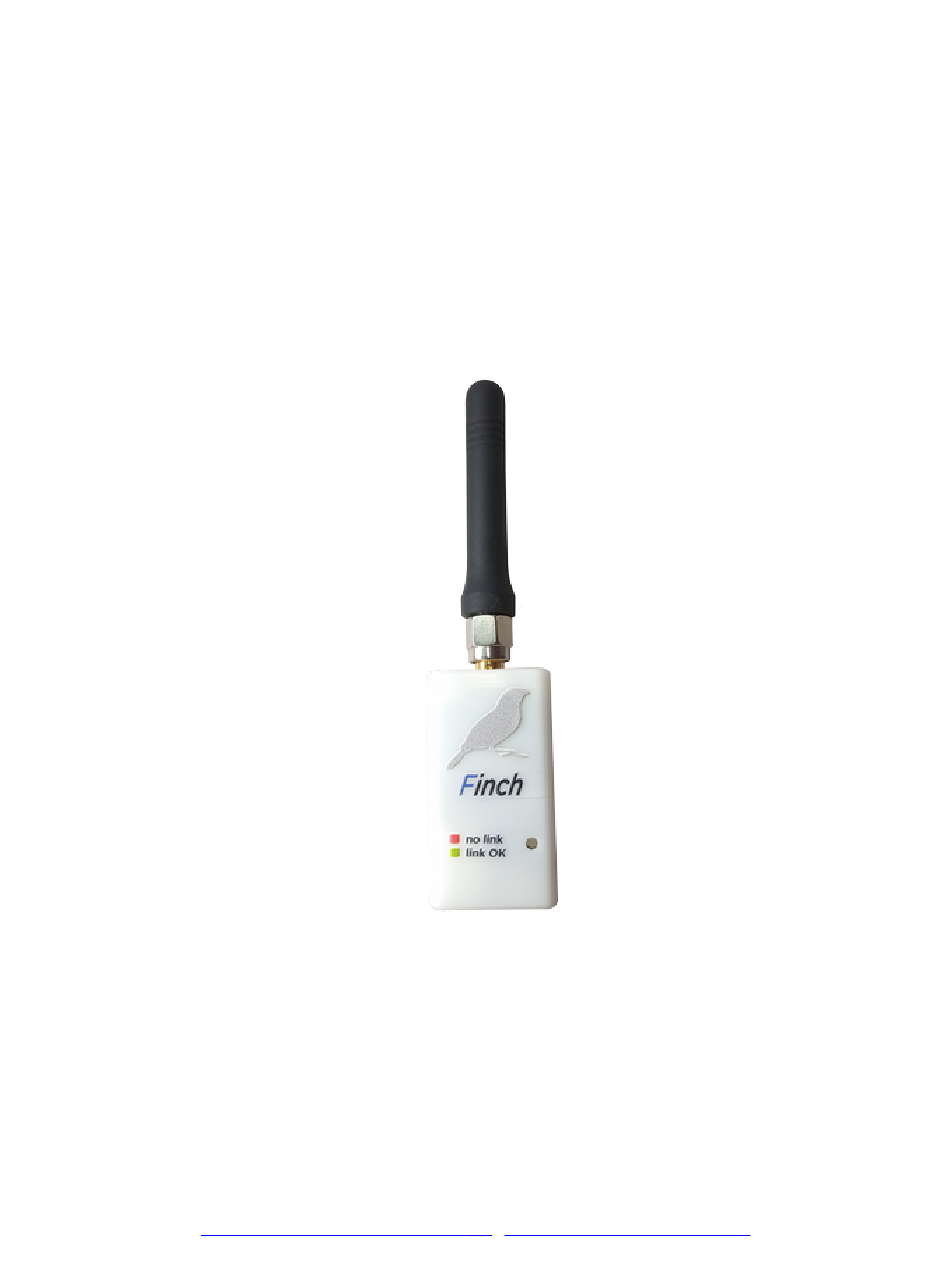

- Page 4 Physical overview Figure 1 shows the Finch RF module. Main connectors are: - SMA connector for RF antenna. - Onboard multi-color LED shows different status of operation: At power on all LEDs are toggled (red, green, blue and white) to confirm its operation, during operation LED status are: red –...
- Page 5 Update and configuration via SD card To set Finch RF to Listen mode user must save Settings.ini file (found in Update zip file) to the root of SD card. In this settings.ini file Listen pair key must be set to serial device which wishes to be simulated as RF device.
- Page 6 Revision history 20.12.2019 v1.0 - initial release - Ground unit for Sparrow / Raven onboard telemetry. Page 6...
