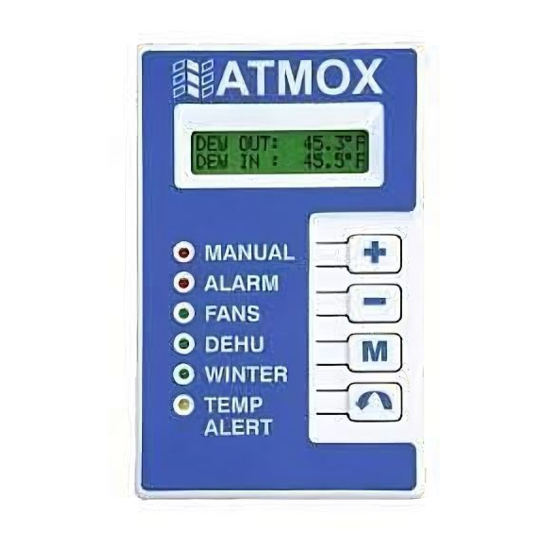

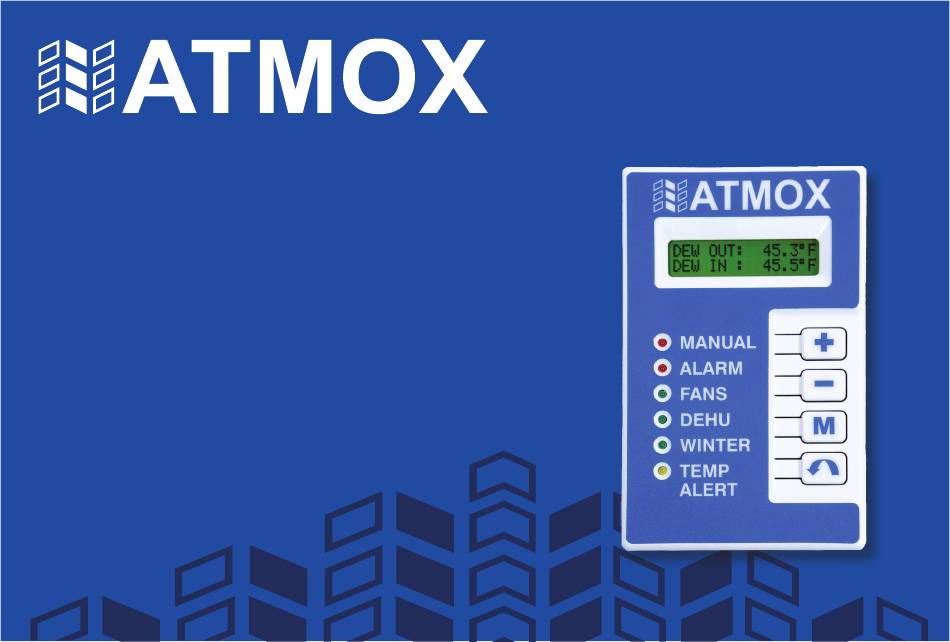

- Page 1 ATMOX MAXX System THE Complete Moisture Control System for Crawlspaces User’s Guide...
-
Page 2: Key Benefits
Welcome to ATMOX This User’s Guide will cover the basic operation of the ATMOX System. KEY BENEFITS For instructions on installation, setup and software adjustments, please refer WHY ATMOX? to an ATMOX Installation Manual. Uses powerful, yet quiet fans Creates cross circulation of air flow... - Page 3 Operating Principle Crawlspaces need dry and proper ventilation. The goal of ATMOX is simple – reduce the moisture and humidity level in your crawlspace. The basic principle of how it works is also simple. Ventilate with “good” air from the outside only when it will improve the conditions in the crawlspace.
- Page 4 ATMOX Settings The ATMOX System is a fully automatic and software- controlled moisture management system. The system continually measures conditions inside and outside to determine the best course of action for your home and crawlspace. The system is preset to the proper settings. It is very rare for adjustments to be necessary.
- Page 5 Output Voltage: 12-13V DC Output Current Range: 0-12.5A Data Input: 2 Temperature/RH, 1 Wood Moisture, 1 Water Power Output: 3 Switched, 1 Constant, 2 Optional Inside Temperature and Use only approved ATMOX Fans and Accessories with the ATMOX Humidity Sensor MAXX System...
-
Page 6: Basic System Configuration
Basic System Configuration Sensors measure provide data to the Controller. RED OUTPUT ORANGE OUTPUT YELLOW OUTPUT PURPLE OUTPUT Fans will run Fans will run when the Fans or dehumidifiers A constant power when the outside outside air is beneficial will run when the source for accessories. - Page 7 The ATMOX Controller will automatically rotate through its standard informational screens about every fifteen seconds. System Screen This screen displays the name of the ATMOX model and the installed software version. To view all screens, you can wait and watch as it scrolls automatically.
- Page 8 The ATMOX system evaluates the outside and inside temperature Dew point is the key to the ATMOX system. Dew point is calculated to determine whether or not to ventilate the crawlspace. If the from the temperature and humidity measurements and gives you the temperatures are too cold or too hot based on several calculations, best indicator of moisture in the air.
- Page 9 10 wood moisture content is a healthy range for a temperature. In general, the ATMOX system is not looking to target an vented crawlspace. The ATMOX system has an alert to notify you if exact humidity level but instead is looking to have variations mirroring the wood moisture reading is too high.
- Page 10 When both lights are off, the outside air is not beneficial and no fans are TEMP ALERT running. Crawlspace humidity is not elevated, and ATMOX system is “waiting” for any change in conditions. This light indicates the crawlspace temperature is very low.
- Page 11 The Display A-Box is connected to the B-Box via telephone wire and jacks. The ATMOX System sends signal and power to the fans, relays and other accessories via low voltage 12v DC power. Each color represents an output for a different function of the system.
-
Page 12: System Notifications
B-Box and the sensor to see if anything is unplugged or damaged. If sensor is There is a data connection still not reading, contact your installer or ATMOX for more problem with the wire between the A-Box and B-Box. information. -
Page 13: Frequently Asked Questions
What happens if we have a blackout or power outage? The ATMOX System obviously runs on electricity, so there will be no operation when the system does not have electrical power. When the power comes back on, the ATMOX system will automatically restart and continue normal operation. -
Page 14: Maintenance
Water Management changing. Please be aware of the following during other times of year: It is important to note that the ATMOX system is a moisture Power Connection management system and not a water management system. If the ATMOX display screen is not showing any readings, it Dry air or a dehumidifier cannot get rid of standing water most likely has no electrical power and is not operating. - Page 15 When installed, operated, used and maintained as intended in residential applications and according to the instructions supplied with ATMOX products, ATMOX warrants its products for a period of 3-years from the date of purchase against any defects in material and workmanship.
- Page 16 ATMOX INC 10612-D Providence Road #229 Charlotte, NC 28277 Phone: 704-248-2858 Fax: 704-675-9858 Email: info@atmox.com Website: www.atmox.com...
