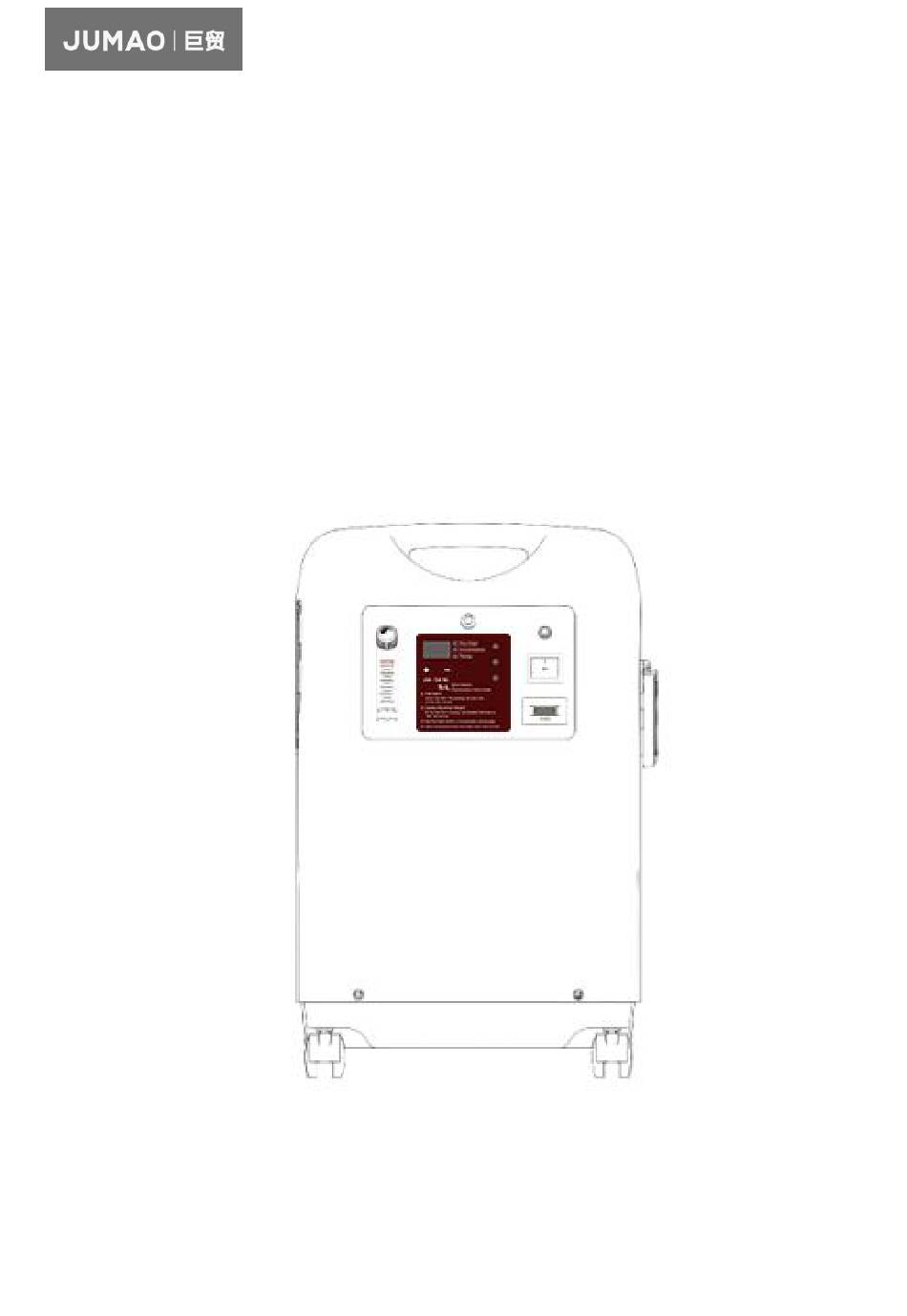

- Page 1 Document No.: JM/JMC5A（A/0） OXYGEN CONCENTRATOR JMC5A Ni USER’S MANUAL (Part No.:0209175 Rev. E Date: Sep.16.2019 ) DO NOT OPERATE THIS UNIT WITHOUT FIRST READING AND UNDERSTANDING THIS MANUAL! SAVE THIS MANUAL FOR FUTURE USE.
-
Page 2: Table Of Contents
TABLE OF CONTENTS …………………………………..4-9 1、SAFETY NOTES 1.1 important informance ……………………..4 1.2 before installation ………………………………..4 1.3 placement …………………………………...…5 1.4 fire warning and explosion …………………..…6 1.5 maintenance ………………………………………7 1.6 radio frequency interference ……………………...7 1.7 reduce the risk of burns to persons …………..8 ………………………………………10-13 2、FEATURES 2.1 summary …………………………………………10... - Page 3 TABLE OF CONTENTS 4.3 turning on………………… ……………………19 4.4 alarm signal ……………………………..…...20 4.5 alarm signal cue …………………………..…21 4.6 turning off ………………………………………22 4.7 symbols and descriptions …………………….…23 ………………………………….24-27 5、MAINTENANCE 5.1 cleaning the cabinet ……………………………..24 5.2 cleaning the replacing the filter ……………...24 5.3 cleaning the optional humidifier bottle ……...26 5.4 oxygen nasal cannula …………………….…..….26 5.5 Tube maintenance……………………………..…26 5.6 Note：for each new patient……………………….26...
-
Page 4: 1、Safety Notes
1、SAFETY NOTES WARNING: Users who require continuous oxygenation must plan for alternate reserve sources of power and oxygen in the event of a failure or loss of power and oxygen. This device is to be used as an oxygen supplement and is NOT considered life-supporting or life-sustaining！... -
Page 5: Placement
1、SAFETY NOTES 1.3 Placement You may select a room in your house where using your oxygen concentrator would be most convenient. Your concentrator can be easily roll from room to room on its casters. Do not place the oxygen concentrator in surroundings where its airflow is obstructed. -
Page 6: Fire Warning And Explosion
1、SAFETY NOTES 1.4 Fire Warning and Explosion Keep the concentrator away from flammable and explosive areas. Users MUST NOT SMOKE while using this device. Keep all matches, lighted cigarettes or other sources of ignition out of the room in which this product is located. NO SMOKING signs should be prominently displayed. -
Page 7: Maintenance
1、SAFETY NOTES 1.5 Maintenance Oxygen concentrator shall be maintained once a year at least. Only the professional healthcare person familiar with the operation of this device (e.g. personnel trained or approved by manufacturer), can the maintenance or debugging of oxygen concentrator. DO NOT service or maintain while patient in use. -
Page 8: Reduce The Risk Of Burns To Persons
1、SAFETY NOTES 1.7 To Reduce the Risk of Burns, Electrocution, Fire or Injury to Persons. Avoid using while bathing. If continuous usage is required by the physician’s prescription: The concentrator must be located in another room at least 2.5 meters (8.2 feet) from the bath. DO NOT come in contact with the concentrator while wet. - Page 9 1、SAFETY NOTES concentrator may impair the performance. If replacement parts used for the periodic servicing by an approved technician do not comply with the manufacturer’s specifications, the manufacturer is not responsible in the event of an accident. DO NOT connect the concentrator in parallel or series with other oxygen concentrators or oxygen therapy devices.
-
Page 10: 2、Features
2、FEATURES 2.1 Summary JMC5A Ni oxygen concentrator is intended for individual use as an oxygen supplement device in a home or care facility. The patient is an intended operator. It is an electronically operated device that separates oxygen from ambient air. It provides high concentration of oxygen directly to you through a nasal cannula or other methods. -
Page 11: Specifications
2、FEATURES 2.3 Specifications 1、Power supply: AC220V, 50Hz;Power: 360VA 2、Sound level: ≤ 46dB (A) 3、Maximum recommended flow：5L/min 4、Flow Range at Outlet Pressure of zero: 0.5～5L/min Flow Range at Outlet Pressure of 7 kPa: 0.5～5L/min Change in maximum recommended flow when back pressure of 7 kPa is applied: ＜... - Page 12 2、FEATURES ④Low pressure alarm shutdown. ⑤Low Oxygen Concentration alarm. 12、 Minimum Operating Time: 30 minutes 13、 Electric Classification: Class Ⅱ equipment , Type BF applied part(Nasal oxygen cannula); 14、 Mode of operation: Continuous duty 15、 Normal Operating Ambient: overvoltage category: II pollution degree :2 altitude：≤2000 1.
- Page 13 2、FEATURES prolonged tube not longer than 15.2 meters (no flatting). 18、The Storage and transport Ambient: 1. Temperature Range: 0℃～+55℃(32℉～+131℉) 2. Relative Humidity Range: 10%～90% 3. Atmospheric pressure: 70kPa～106kPa (10.2psi～15.37psi) NOTE: The oxygen concentrator should be stored in area without erode gas; be avoided shaking and inversion in transportation.
-
Page 14: 3、Handling
3、HANDLING 3.1 Unpacking NOTE: Unless the oxygen concentrator is to be used immediately, retain containers and packing materials for storage until concentrator use is required. Check for any obvious damage to the carton or its contents. If damage is evident, please notify the carrier or local dealer. ... -
Page 15: 4、Installation And Operation
4、INSTALLATION AND OPERATION 4.1 FEATURE VIEW 1---Flow meter Setting oxygen flow rate by adjust the knob. 2---Status indicator light (Alarm/Normal Low) Oxygen tube 3--- Outlet connector 4--- Breaker 5--- To protect the machine and user, breaker will cut off power automatically when current ≥... - Page 16 4、INSTALLATION AND OPERATION Connecting pipe of humidifier bottle 7---Humidifier bottle For some users, dry oxygen inhalation may cause respiratory discomfort, use humidifier bottle to humidify oxygen. --Power switch 9---Elapsed Time Meter Record total operation time, guide user use device scientifically. 10---Power cord 11---Atomization connector Unscrew atomization plug and connect with atomizer when atomization is...
- Page 17 4、INSTALLATION AND OPERATION Figure 2: Humidifier Features DO NOT add water over the maximum water level. Pure water shall be added in humidifier to between maximum and minimum water level in use. ● Power switch——I indicate the power is on, O indicate the power is off. When the switch locates on “ON”, if the power cutting occurs, the oxygen concentrator will not run, there will be alarm noise.
-
Page 18: Prepare Work
4、INSTALLATION AND OPERATION 4.2 PREPARE WORK Unscrew the cover of the humidifier, fill the purify water (or distil water) into the humidifier bottle between the maximum and minimum water level lines, and then screw the humidifier bottle. (If needed, add other medicine into the water, please according to the doctor’s suggestion.) ... -
Page 19: Turning On
4、INSTALLATION AND OPERATION 4.3 Turning the Concentrator ON Press power switch to the“|”position. The display will show “HELLO”. At that time green, yellow, red light all will be on which means the function of machine is normal. After about 1 second, only green light on. -
Page 20: Alarm Signal
4、INSTALLATION AND OPERATION 4.4 Alarm Signal Initial startup of the concentrator NOTE: Concentrator may be used during the initial start warm-up time (approximately 30 minutes) while waiting for the O concentration to reach maximum. When the unit is turned on, the green light will come on (O concentration greater than 82%±3%). -
Page 21: Alarm Signal Cue
4、INSTALLATION AND OPERATION 4.5 Alarm Signal cue 1、O concentration is greater than 85%±2%. Green light illuminates. Normal Operation. 2 、 O concentration is greater than 73%± 2% and less than 85%±2%. Yellow light illuminate. 3 、 O concentration is less than 73%±2%. Red light illuminate, intermittent audible alarm sounds. -
Page 22: Turning Off
4、INSTALLATION AND OPERATION 4.6 Turning the Concentrator Off Press power switch to the “ O ” position and unplug the concentrator’s AC connector from the power outlet. Use the plug device to isolate the concentrator from the supply mains. -
Page 23: Symbols And Descriptions
4、INSTALLATION AND OPERATION 4.7 Symbols and Descriptions Symbol Meaning Symbol Meaning Refer to Alternating current instruction manual Class Ⅱ Type BF applied part Equipment OFF (power) ON (power) No open flame; Fire,open ignition Circuit Breaker source and smoking prohibited Height Date of Serial number manufacture... -
Page 24: 5、Maintenance
5、MAINTENANCE Warning: Power should be disconnected before beginning preventive maintenance on the concentrator. DO NOT service or maintain while patient in use. The concentrator need no extra approved maintenance as it pressure and oxygen purity self-check of the unit, so it but the device shall be maintained once a year. - Page 25 5、MAINTENANCE Disassembly (1)Transom filter The Transom filter need to clean per half month. (Figure 4) Figure 4 (2)Intake filter The Intake filter, need to clean per half month. (Figure 5) Figure 5 The intake filter access door is located on the left side of the concentrator, open the access door (Use a small blade screwdriver to open the access door), Unscrew the filter core, Remove the intake filter.
-
Page 26: Cleaning The Optional Humidifier Bottle
5、MAINTENANCE 5.3 Cleaning the Optional Humidifier Bottle Change the water in the humidifier bottle every day. Clean ： Wash the humidifier bottle weekly. First use household detergent to wash, then rinse under running water and dry. Disinfect：Disinfect the humidifier parts by immersing them in a disinfection solution, or1 part vinegar diluted with 10 parts water . - Page 27 5、MAINTENANCE The entire oxygen administration circuit ( oxygen therapy nasal cannula, etc.) must be changed.
-
Page 28: 6、Troubleshooting
6、TROUBLESHOOTING Troubleshooting Guide Symptom Probable cause Solution Remark 1)Check connect Elapsed time 1) Four corns plug-in circuit board to meter displays, the valve has not been the valve’s four the green and the inserted completely corns plug-in. yellow light are 2) Exhaust sound buffer always bright,... - Page 29 6、TROUBLESHOOTING Symptom Probable Cause Solution 1) Concentrator’s oxygen concentration is safe, 1) Clean or Replace filters. but decreasing. 2) Move concentrator at 10 cm (4 inches) least 2) Unit overheating away from walls, due to blocked air draperies, furniture, or Concentrator works, intake.
-
Page 30: 7、Other Attentive Items
7、OTHER ATTENTIVE ITEMS 7.1 Post-marketing service a) In normal use and normal maintenance circumstances, if the Oxygen Concentrator can not be normally used in half a year since delivery date (or in a year of commerce storage)(compressor 3 years), the company is responsible for repair for free or change for free;... -
Page 31: Accessories And Spare Parts
7、OTHER ATTENTIVE ITEMS 7.3 Accessories and spare parts The accessories used must be oxygen compatible and be biocompatible. Note： The connectors, tubes, nasal cannula or masks must be designed for oxygen therapy usage. Included in the set of accessories supplied with device, comply... -
Page 32: Emc Guidance In Use
Guidance and declaration of manufacturer -Electromagnetic emission The JMC5A Ni Oxygen Concentrator is intended for use in an environment specified below. The customer of the user of JMC5A Ni Oxygen Concentrator should assure that the unit is used in such an environment. -
Page 33: Company And Address
7、OTHER ATTENTIVE ITEMS Guidance and declaration of manufacturer -Electromagnetic Immunity The JMC5A Ni Oxygen Concentrator is intended for use in the electromagnetic environment specified below. The customer of the user of JMC5A Ni Oxygen Concentrator should assure that the unit is used in such an environment. - Page 34 To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the JMC5A Ni Oxygen Concentrator is used exceeds the applicable RF compliance level above, the JMC5A Ni Oxygen Concentrator should be observed to verify normal operation.
- Page 35 Recommended separation distances between portable and mobile RF communication equipment and the JMC5A Ni Oxygen Concentrator. The JMC5A Ni Oxygen Concentrator is intended for use in an electromagnetic environment in which radiated RF disturbances are control . The customer or user...
- Page 36 Jiangsu Jumao Medical Equipment Co.,Ltd. Add: No.36,Danyan Road, Danyang , Jiangsu 212300, China. Tel: +86-511-86195106 Fax: +86-511-86197022 E-mail: dzhiyangji@Jumaocn.cn Website: www.Jumaochina.com...
