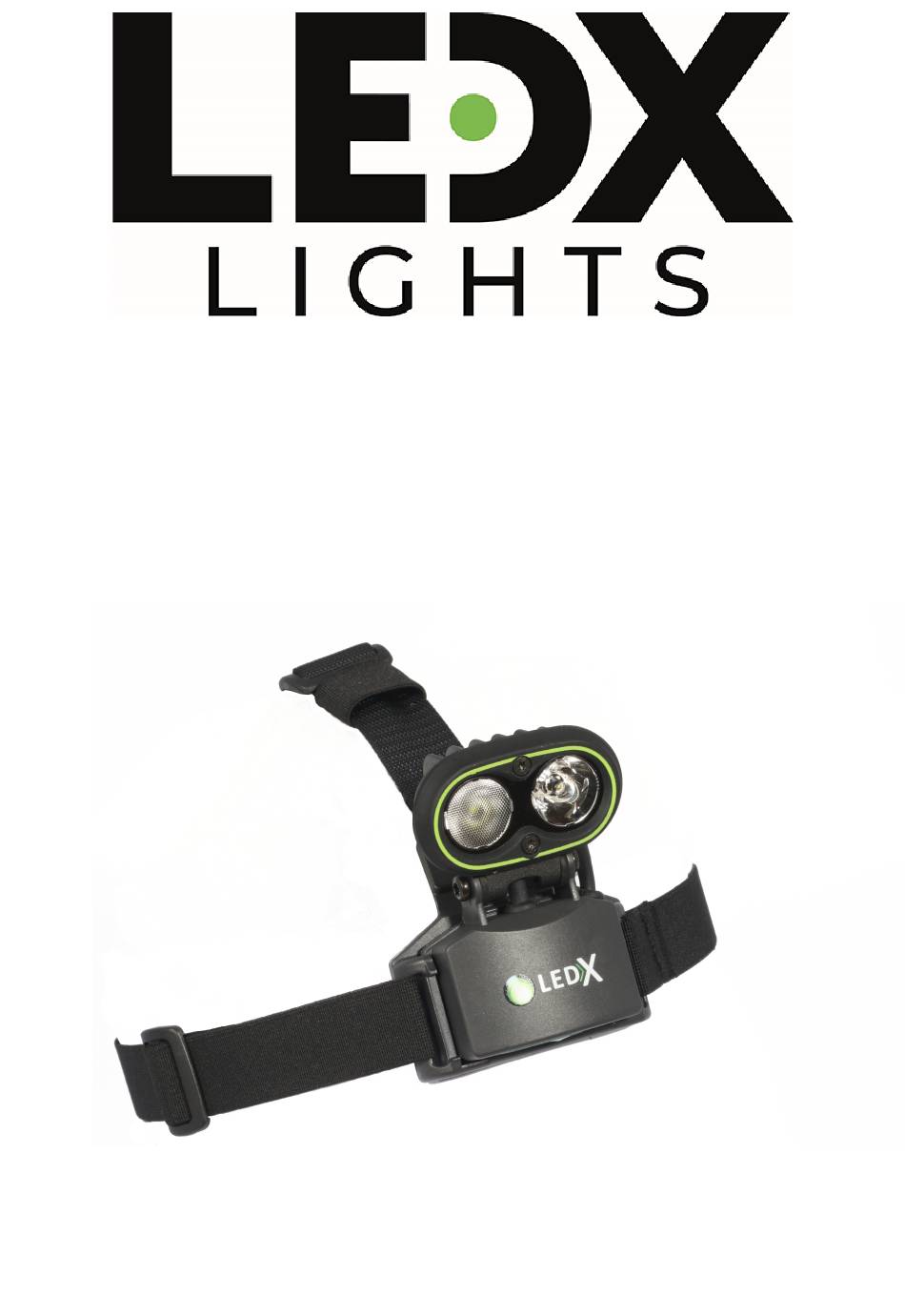

- Page 1 Kaa 2 000 wide English...
- Page 2 Congratulations on your choice of LEDX headlamp The lamp has been developed with a focus on bright light, low weight and several different fields of use. Be careful; the light is very powerful, do not look straight into the lamp when turning on the light. Due to the high power it also emanates much warmth.
- Page 3 The lamp case Connect the battery to the lamp case. Be careful to fit the white markings on the contacts to each other; if they are incorrectly fitted and forced together the contact pins might break. Right Wrong The switch is placed at the bottom of the lamp case. Light the lamp by pressing the switch until the lamp turns on (1-3s).
- Page 4 Batteries The main battery is a Li-Ion battery; these are characterized by a high capacity and low self-discharge. It is carried conveniently in a rear harness, waist or in a Blinks Effect Effect Effect Effect Effect 100% 4 25 h 1 h 35 min 3 12 h 4 h 30 min 50 min...
-
Page 5: Battery Indicator
battery so that it is exposed to extreme heat, such as in a Clicks Program Effect Effect Effect Effect Effect Blinks 100% (default) car on a hot summer day. This would quickly shorten its life. Battery indicator A battery indicator in 4 steps is built into the lamp. To activate the battery indicator;... - Page 6 Follow this advice you give your battery a long life. Charge the batteries with the included chargers. Be sure to use the correct charger for each battery. The main battery is charged with the larger charger 1 and takes about 5-6 hours to charge fully. Do not discharge the battery before recharging.
- Page 7 Headgear The headgear is adjusted over the head and on the right- hand side with a buckle. Attach the cable through the front strap when you have the battery mounted on the headgear. If you have the battery on your back or in a pocket, there is another strap at the back of the headband that you can use.
-
Page 8: Specification
Specification: Lamp housing with 2 LED Cree XM-L2, light system Wide Weight: Lamp housing 43 g Lamp housing with headgear 90 g Lamp housing with headgear and back-up battery 132 g Lamp housing with headgear and battery 282 g Battery times: These show approximately how long the battery can be expected to last on each level. - Page 9 Warranty 3 year warranty against manufacturing defects on LEDX Kaa 2 000 (1 year for battery and charger) Connect only the supplied LEDX batteries to the lamp. Only charge batteries with the supplied charger from LEDX. Make sure you are using the correct chargers for the main and back up-battery.
