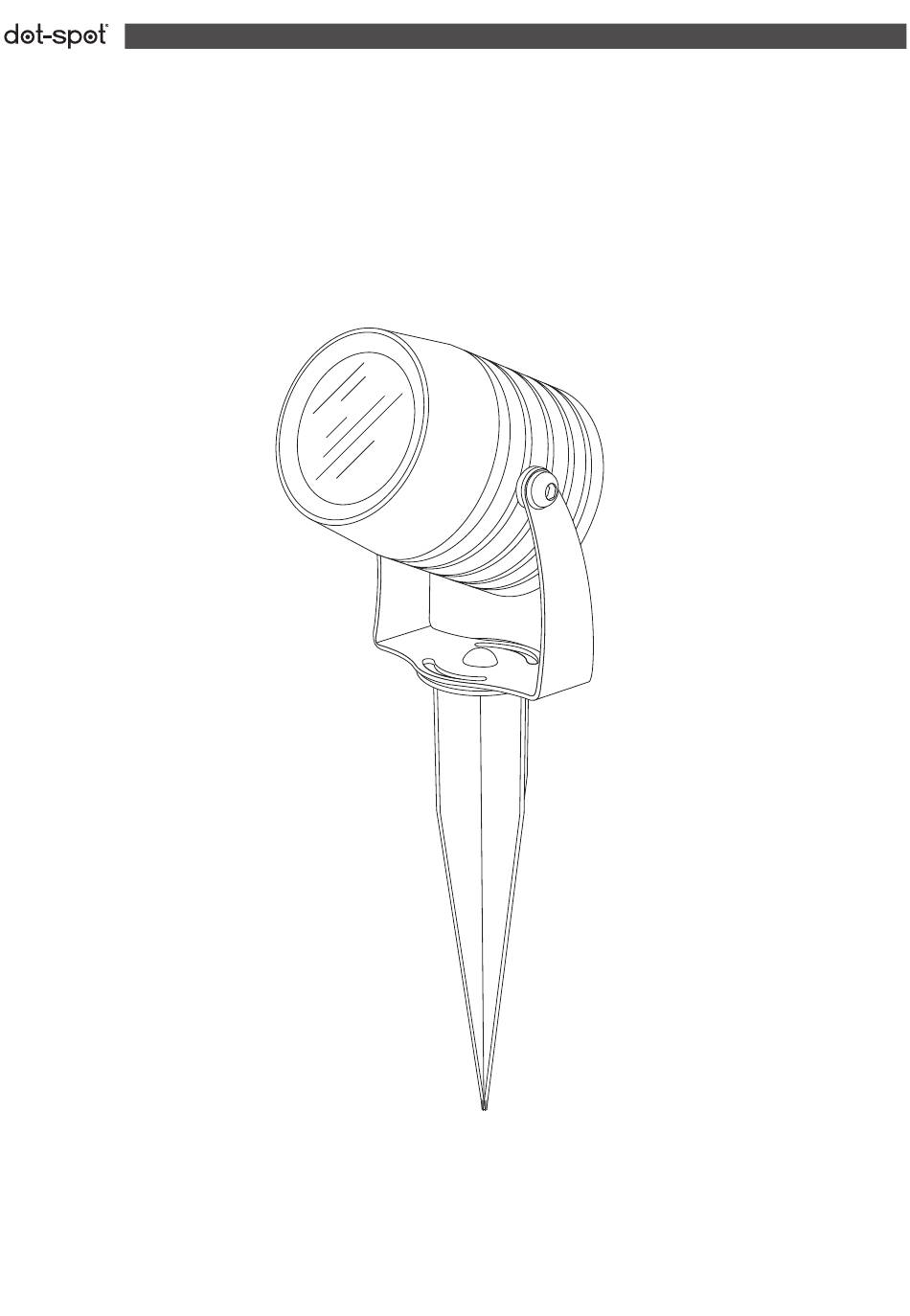

  • Page 1 LED Gartenstrahler eco-set 230V LED garden spot eco-set 230 V І Bedienungsanleitung І Operator‘s Manual...
  • Page 2: Table Of Contents

    Danke! Vielen Dank, dass Sie sich für den dot-spot eco 230 V entschieden haben. dot-spot Produkte wer- den nach sehr hohen Qualitätsrichtlinien in Deutschland entwickelt und gefertigt. Der eco 230 V wird in vergussloser Bauweise gefertigt, dadurch kann das Produkt am Ende der Lebensdauer in seine Einzelteile zerlegt und optimal recycelt werden.
  • Page 3: Technische Daten

    Spannung von 230 V betrieben. Um Gefahren zu vermeiden, tren- nen Sie vor allen Arbeiten am Strahler den dot-spot eco-set LED Gartenstrahler 230 V vom Stromnetz. Der Strahler kann nicht geöffnet werden. Schließen Sie den Strahler nur an, wenn die darauf angegebene elektrische Spannung mit der Spannung Ihrer Steckdose übereinstimmt.
  • Page 4: Montage Mit Montagewinkel (Beiliegend)

    Sprengring auf die Montageverlängerung. Der Sprengring wird zwischen Schraubenkopf und Montagebügel platziert. Richten Sie den Montagebügel vor dem Festziehen aus. Steckeranschluss Anschluss an 230 V Netzspannung eco 230 V, 6W Schukosteckdose 230 V 50 Hz Anschluss des Strahlers 1. LED Gartenstrahler an einer geeigneten Stelle platzieren.
  • Page 5: Sonderzubehör

    94920 FP 80 Fußplatte Edelstahl Ø 80 mm dot-spot Informationen für den Betreiber LED-Leuchten sind äußerst energiesparend und haben im normalen Betrieb eine sehr lange Le- bensdauer. Um die maximale Lebensdauer der LED zu gewährleisten, sollten folgende Punkte be- achtet werden: 1.
  • Page 6: Service

    Die Gesetzlichen Gewährleistungsrechte werden durch diese Garantie nicht berührt. Diese Garantie- erklärung ist eine freiwillige Leistung von uns als Hersteller. Alle dot-spot Produkte werden vor Verlassen unseres Hauses zu 100 % geprüft und getestet. Den- noch kann nicht ganz ausgeschlossen werden, dass vereinzelt Fehler während des Betriebs auf- treten.
  • Page 7: Contents

    Thank you for choosing the dot-spot eco-set 230 V. dot-spot products are developed and manu- factured in Germany according to very high quality guidelines. The eco 230 V is manufactured in a potting-free design, which means that the product can be dismantled into its individual parts at the end of its service life and optimally recycled.
  • Page 8: Technical Data

    Observe applicable safety regulations for installation. The spot runs on 230 V electrical power. To avoid danger, separate the dot-spot eco 230 V spot from the power supply before any work. The spot can not be opened. Connect the spot only if the electrical rating specified on the safety contact socket matches your main power socket rating.
  • Page 9: Assembly With Mounting Bracket (Enclosed)

    The snap ring is placed between the screw head and the mounting bracket. Align the mounting bracket before tightening. Plug connection Connection with 230 V safety contact socket eco 230 V, 6W safety contact socket 230 V 50 Hz Connection of the spot 1.
  • Page 10: Optional Accessories

    FP 80 Stainless steel base plate Ø 80 mm dot-spot information for the user LED illuminants are great energy-savers and have an exceptionally long life assuming normal use. For this reason replacing of the illuminant is not envisaged. In order to ensure the maximum lifespan of the LED the following points should be observed: 1.
  • Page 11: Service

    Warranty All dot-spot products are 100% checked and tested before they leave our house. However, it cannot be completely ruled out that isolated errors occur during operation. We grant a two-year warranty within the framework of the statutory provisions Date of purchase (receipt).
  • Page 12 90592 Schwarzenbruck / Deutschland Telefon +49 (0) 9128 / 72 22 17 - 0 Telefax +49 (0) 9128 / 72 22 17 - 9 Email service@dot-spot.de www.dot-spot.de Gebrauchsanleitung | dot-spot Gartenstrahler eco_set 230V | 8006200 Rev. 1 / April 2021...
