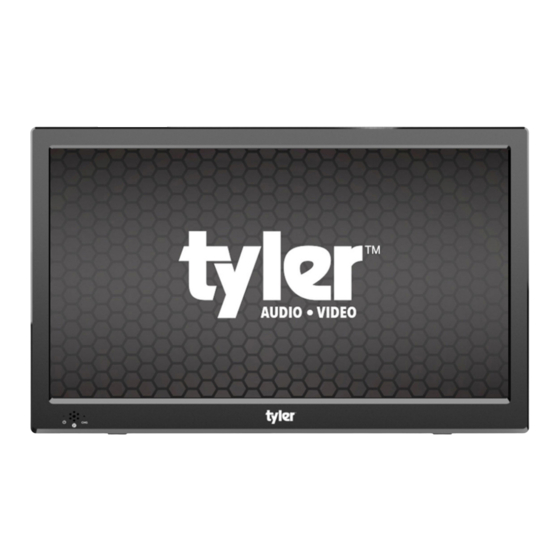

Summary of Contents for Tyler TTV708-13

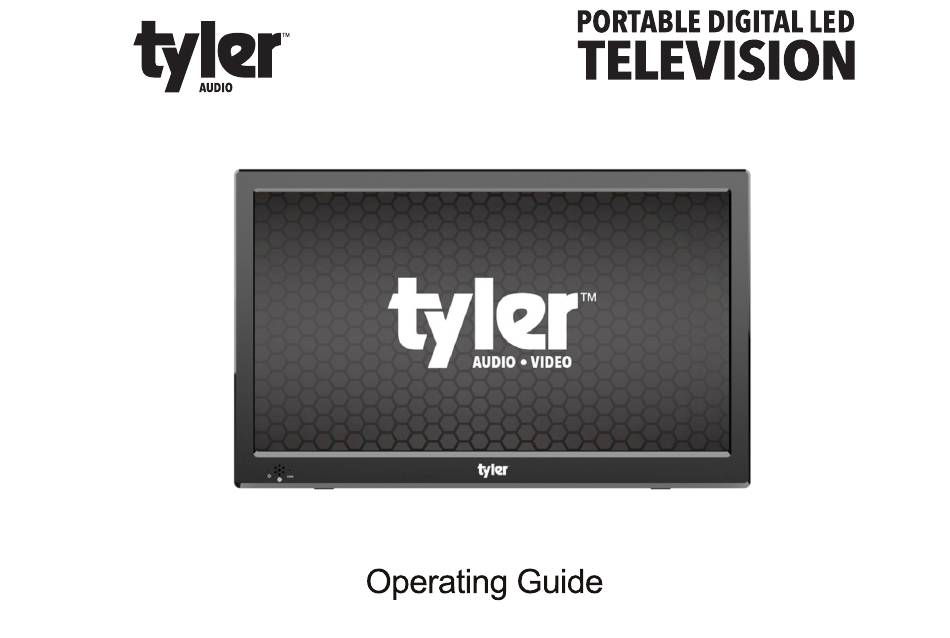

- Page 1 TTV708-13...
-
Page 2: Table Of Contents
Table of Contents Before Your Start ............3, 4 TV Menu Operation ............ 13~17 Channel ....................In the Box ..............5 Picture ....................Sound ..................... Time ......................Option ..................... Lock ......................At a Glance ..............6~14 Main Unit ..............................FM Radio Receiving 17,18 Remote Control .................. - Page 3 Page 3...
-
Page 4: In The Box
If anything is missing, check back with your local retailer to get immediate assistance. If they can not help you, please contact our Support team. • Portable TV • A/V cable TTV708-13 • Remote control • External Magnetic Sucker Antenna •... -
Page 5: At A Glance
At a Glance Remote Detects IR signals from the included remote sensor control. Power indicator; Lights Blue when the TV is Main Unit connected to the power and stand by; Lights red when TV is charging; The indicator will darken the TV is fully charged. Power/Standby. - Page 6 Use with the included AC power adapter or DC input DC power cord. Set to ON to use the TV. If you will not be Master using the TV for an extended period of time, Power set the switch to OFF to turn the unit off Switch completely.
-
Page 7: Remote Control
ote Control Power Power Switching Key. Turn the TV on or off. MUTE Enable/disable the sound output. change the picture preset mode. P.MODE FREEZE Temporarily pause the video. AUDIO change the sound preset mode. Voice prompt function On/Off Go to the last viewed channel. Return Use the number keypad to change the Channel... - Page 8 Change the default audio language. Change the closed-caption display modes. If available, view program guide informa- tion from over-the-air ATSC TV broadcasts. ZOOM Picture modes SLEEP Set a sleep timer (max 240 minutes). The following keys only work when playing music/vid- eos in MEDIA mode.
- Page 9 Notes: The remote control operates 2pcs " A AA" battery " " ( included the packaging box). To power up the remote 1 . Keep within 3 meter distance when using the remote control, put the AAA battery inside the battery groove. control to work TV.
-
Page 10: Basic Operation
Basic Operation Connect the Antenna Connect the Power Supply Use the supplied external antenna for improved TV reception. Connect one end of the External Magnetic Use the supplied power adapter to connect the DC In- to the Antenna Input jack [12 ] of the TV. Sucker Antenna put jack [1 9 ] on the TV to a power supply. -
Page 11: Using The Built-In Battery
To tune to channel 15-1, for instance: Warnings: 1. Press the “1” key, then press the “5” key. To charge the battery, just connect the AC adapter. 2. Press the “--/-” key. Recharge the built-in battery when you are ready to use it again. -
Page 12: Tv Menu Operation
TV Menu Operation Press the MENU key on remote to access the menu list and then press the OK key to enter the list. Press the Press key to move within the Menu, and then press the OK key to cofirm the change. To exit the menu, press the MENU key to back out of all menu options. - Page 13 Troubleshooting Tip 1. Missing Channels or Channels not Found Channel selection is based on signal strength at the time of an autoscan. If you are missing a channel you expect to find, first research the location of broadcast towers in your area. Aiming the antenna in the direction of the broadcast towers will significantly increase its signal strength.
-
Page 14: Picture
Sound Picture 1. Sound mode: Set a preset equalizer to match the type of program you are watching from; standard, 1. Picture mode: Select a picture preset that looks music, movie, sports, and user setting. best (Standard, Soft, user, and Vivid). 2. -
Page 15: Time
Option Time 1. OSD Language: Set the display language of the 1. Clock: Press the “ ” key to enter the menu, onscreen menus. then the / to select; then press the / 2. Closed Caption: When closed caption is availabe keys to adjust the current date and time. -
Page 16: Lock
Lock FM Radio Receiving: Use the remote control to enter the default password Press "MODE" to select " FM Radio" mode, and then (0000) to access the Lock options. press the RED key on remote to scan and save the 1. - Page 17 How to work the FM radio: FM Radio lnfo 87.00 CH01 Channel Number:1 FM CH number 87.00 CH02 Frequency: 87.00 Frequency/Station 87.00 CH03 Name: CH01 You can change the FM Channel Frequency by pressing Name/Number 87.00 CH04 the (OK) button on remote. press the(R)arrow key to 87.00 CH05...
-
Page 18: Multimedia Interface
Multimedia Interface Support format as follow: Make sure your USB drive is in the USB Slot on the TV. From the input Menu, select MEDIA. Press OK to Multimedia Support file access either Photo/Music/Movie/ or Text icon. Photo Photo Playback Music Insert your USB drive in the USB Slot on the TV. - Page 19 Support Media format as follow: Multimedia Support file Screen type TFT LCD 13.3" Photo Screen resolution 1366x 768 Removable Memory Music Support Memory Card MPEG,XVID,AVC,MP4, Movie Playable Media MP3, JPEG, MPEG, XVID, AVC, MP4, H.264,HEVC(H.265)FLV,MKV Formats H.264, HEVC(H.265), FLV, MKV, TXT HDTV signal support ATSC Receving F r equency...
-
Page 20: Limited Warranty
Limited Warranty Page 20...
