Summary of Contents for AccuMate TM72

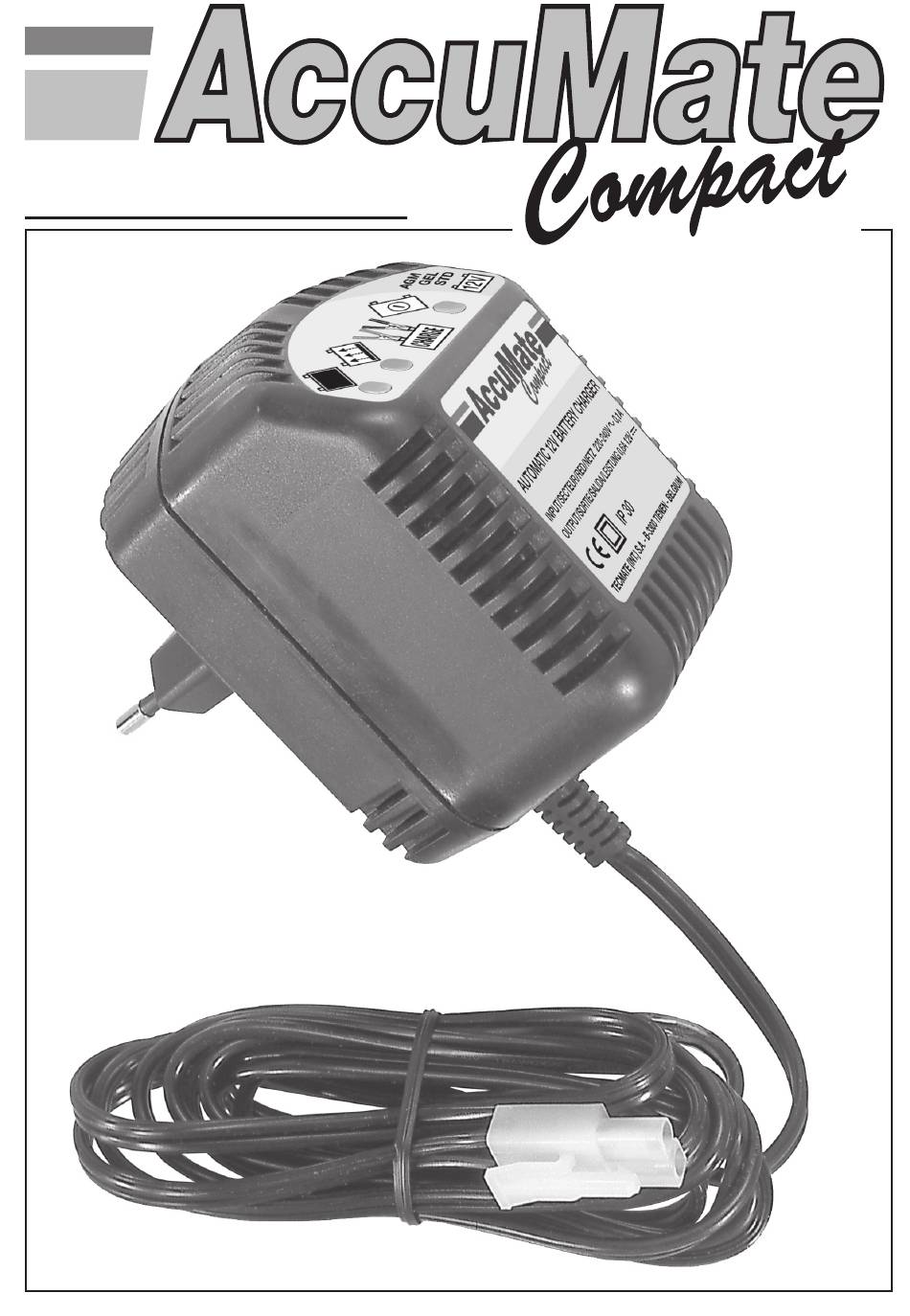

  • Page 1 www.accumate.com...

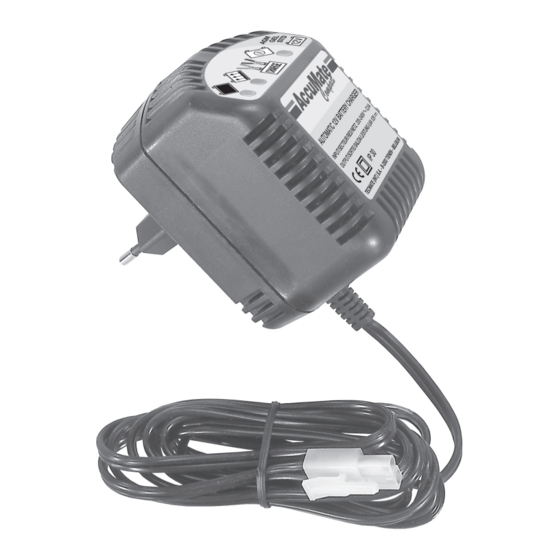

  • Page 2 AVAILABLE ACCESSORIES • ACCESSORI DISPONIBILI ACCESORIOS DISPONIBLES TM72 TM78 TM76 TM71 TM77 TM74 TM73 2,5m Automatic 0,6A constant current charger for 12V lead-acid batteries from 2 to 90Ah. Do not use on rechargeable or any non-rechargeable batteries. Input 220-240V~ 50 Hz, max. 0,08A.

  • Page 3: Read Before Using

    Instructions for Use : IMPORTANT : www.accumate.com Read before using. WARNING ! Batteries emit EXPLOSIVE GASES - prevent flame or sparks near batteries . Disconnect AC power supply before making or breaking DC/battery connections. Battery acid is highly corrosive. Wear protective clothing and avoid contact. In case of accidental contact wash immediately with soap and water.
  • Page 4 CHARGING 1) If the device is to be connected to a battery, first ensure that the battery is a 12V battery (which has 6 cells) and that there is good ventilation around battery and charger. 2) If using the battery clips, connect these to the polarised connector terminating the device’s output cable, then, if the battery to be charged remains connected to a vehicle’s electrical system, determine whether the positive or negative (more commonly) pole of the battery is connected to the vehicle chassis.
  • Page 5 11) To discontinue, switch off and/or withdraw the device from the wall socket then break the battery connections. 12) The table below gives approximate maximum charging times from a totally discharged flat battery to fully charged status. However it is only in cases such as car headlights being left on for a week or the battery being unused and kept in a warm environment for months that the battery will become totally discharged.
  • Page 6 ISTRUZIONI PER L’USO : IMPORTANTE : Leggete tutto il presente www.accumate.com testo, prima di utilizzare l’apparecchio ATTENZIONE : Le batterie emettono GAS ESPLOSIVI . Evitate fiamme o scintille nei pressi delle batterie! Disinserire il collegamento alla corrente della rete prima di attaccare o interrompere i collegamenti alla batteria.
  • Page 7 in seguito l’altra pinza al telaio del veicolo. Evitate una qualsiasi parte o uno qualsiasi ambiente dove di car- burante potrebbe essere presente. 3) Per utilizzare il cavo di collegamento con occhielli, vedi il testo preliminare sopra. 4) E importante di assicurare un buono contatto tra i poli della batteria e l’apparecchio. 5) Inserire i spinotti del apparecchio nel presa di corrente di 220-240V.

  • Page 8: Procedimiento De Carga

    Instrucciones de uso : IMPORTANTE : Leer antes de utilizar www.accumate.com el aparato ADVERTENCIA : Las baterías emiten GASES EXPLOSIVOS - No permitir que se acerquen llamas ni chispás a la batería . Siempre desconectar la alimentación CA antes de conectar/desconectar una batería. El acido de batería es altamente corrosivo.
  • Page 9 caso normal) sea conectado a la masa del vehículo y conectar primero la pinza apropiada al borne no conectado a la masa y después la otra pinza al chasis del vehículo, pero evitar piezas y lugares dónde car- burante puede ser presente. 3) Para utilizar el juego de conexión con ojales, véase la sección preliminar sobre.
  • Page 10 13) Tabla de tiempos de carga Descripción del vehiculo Capacidad de la batería Horas norm. desde descarga completa Tiempo máximo Motos ligera, moto sport, VTT 02 a 14 Amp-hora 02 a 10 horas 120 horas Moto de turismo microtractor 15 a 30 Amp-hora 11 a 20 horas 140 horas Coche pequeño hasta 1400cc...

  • Page 12: Limited Warranty

    LIMITED WARRANTY TecMate (International) SA/NV, 252 Sint-Truidensesteenweg, B-3300 Tienen, Belgium, makes this limited warranty to the original purchaser at retail of this product. This limited warranty is not transferable. TecMate (International) warrants this device for two years from date of purchase at retail against defective material or workmanship.

This manual is also suitable for:

Tm78Tm76Tm71Tm77Tm74Tm73
