Owner's Manual
M-CA061
M-OT061

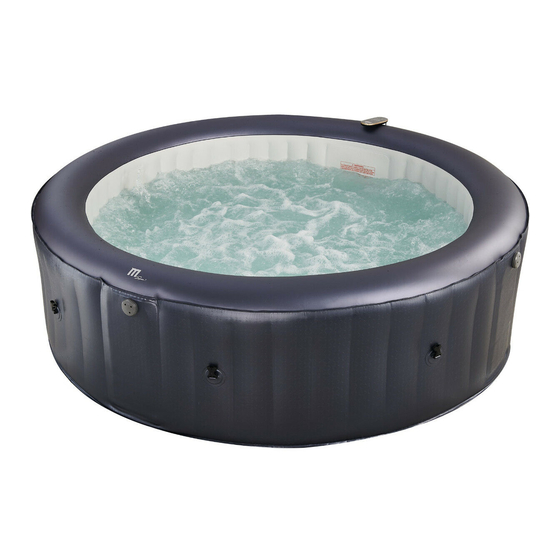

Carlton
Otium
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for mspa Carlton
Summary of Contents for mspa Carlton
- Page 1 PLEASE DO NOT RETURN THE PRODUCT TO THE STORE Due to MSpa's continuous product improvement process, MSpa reserves the right to change the specifications and appearance of its products, which may result in updates to the instruction manual without prior notice.
-
Page 2: Table Of Contents
To guide you in your initial MSpa experience, we are pleased to present you with this instruction manual. Please read this manual carefully before using the product for the first time. We are delighted to welcome you to the MSpa family, and look forward to sharing with you the full spectrum of our expertise. -
Page 3: Safety Precautions
SAFETY PRECAUTIONS For your own safety and that of your product, please make sure to follow the safety precautions below. Failure to follow the instructions may result in serious injury, property damage or death. Improper installation or operation will void the warranty. PLEASE ENSURE THAT YOU READ, UNDERSTAND AND FOLLOW ALL INSTRUCTIONS KEEP THIS MANUAL FOR FUTURE REFERENCE DANGER... - Page 4 ● Do not use the spa if it is damaged on delivery and/or if it malfunctions in any way. ● Contact the MSpa service center for further instructions. ● Keep all pets away from the spa to avoid any damage.
- Page 5 ● Unintended use of the appliance or damage to the housing may result in the escape of dangerous UVC radiation. UVC radiation, even in small doses, may cause harm to the eyes and skin. ● WARNING: Do not operate the UVC emitter when it is removed from the appliance enclosure. CAUTION ●...
- Page 6 Warning: The appliance's water protection levels vary across different product zones, as shown in the following diagram. (The installation regulations comply with IEC 60364-7-702.) 2.5 m Zone 2 Zone 1 Zone 2 2.5 m Zone 0 Zone 0 1.5 m 2.0 m 2.0 m 1.5 m...
-
Page 7: Specifications
Garden hose adaptor Wrench Repair kit NOTE: The drawings are for reference only. Actual products may vary. Not to scale. Use accessories exclusively provided by MSpa for safety reasons. When ordering parts, be sure to quote the MSpa model number and description. -
Page 8: First Use And Setup Preparation
FIRST USE AND SETUP PREPARATION Site preparation and requirements ● The spa can be installed indoors or outdoors in around 10 minutes by one or more persons. For household use only. ● The spa must be set up on a flat, smooth and supporting surface that is able to bear the maximum load of the filled spa with the listed maximum number of occupants. -
Page 9: Spa Setup
NOTE: Lay out all the parts on the ground and make sure they are all accounted for. For missing or damaged parts contact the appropriate MSpa after-sales service center. - Page 10 1. Open the air valve (a) on the bladder. Insert the inflation hose (b) into the valve. Open the air valve (c) on the spa pool. Ensure that you select the black one. 2. Press the BUBBLE button to inflate until the bladder is firm to the touch but not hard.
-
Page 11: Controller Operation
CONTROLLER OPERATION LED Display JET Button Heater Button Filter Button Bubble Button - Adjust the bubble level by pressing Timer Button the button (L1: 300W, L2: 500W, L3: 720W Up Button Down Button UVC Button OZONE Button LED display °C °F Once powered-up, press the RESET on the PRCD. - Page 12 FILTRATION Press the FILTER button to turn the function on/off. The light turns to green when the function is activated. FILTER FILTER NOTE: The filtration system will automatically start when the heating, Ozone or UVC sanitizing system is activated. NOTE: After turning off the heating system, the filtration system will automatically stop in 30 seconds. Filter Cartridge Cleaning Reminder: When the FILTER button is flashing or displays red, the filter cartridge must be cleaned or replaced.
-
Page 13: Water Maintaince And Chemicals
WATER MAINTENANCE AND CHEMICALS CAUTION: ALWAYS ENSURE THE SPA IS UNPLUGGED BEFORE BEGINNING ANY MAINTENANCE WORK TO AVOID THE RISK OF INJURY OR DEATH. FILTER CARTRIDGE MAINTENANCE 1. Inspect and clean the filter cartridge gently after each use. Follow the steps below: NOTE: Change the filter cartridge every 3-5 days, or if the filter cartridge remains soiled and discolored. -
Page 14: Drainage, Cleaning And Storage
Water Treatment: ● It is good practice with an existing spa to keep all air jets open and valves closed to allow chemically treated water to flush through all pipework. ● Always follow the chemical manufacturer’s directions, and the health and hazard warning. ●... -
Page 15: Disposal And Environmental Protection
Clean the parts and tubes that the water goes through F1 shows 15s after pressing FILTER, HEATING or UVC 1. Add more water to the minimum line 2. Clean the parts and tubes that water goes through 3. Contact the MSpa Service Center... - Page 16 SPA LEAKING Drainage valve is not closed completely Close the drainage valve. Contact the MSpa Service Center, if spa is still leaking Water leaks from the spa pool body Repair the leaking hole/split with the repair kit material...
-
Page 17: Mspa Limited Warranty
Transportation Prepaid, if requested. ● The authorized selling dealer is responsible for all in-field service work carried out on your MSpa product. ORPC will not be liable for the cost of any workmanship carried out by an unauthorized service person.
