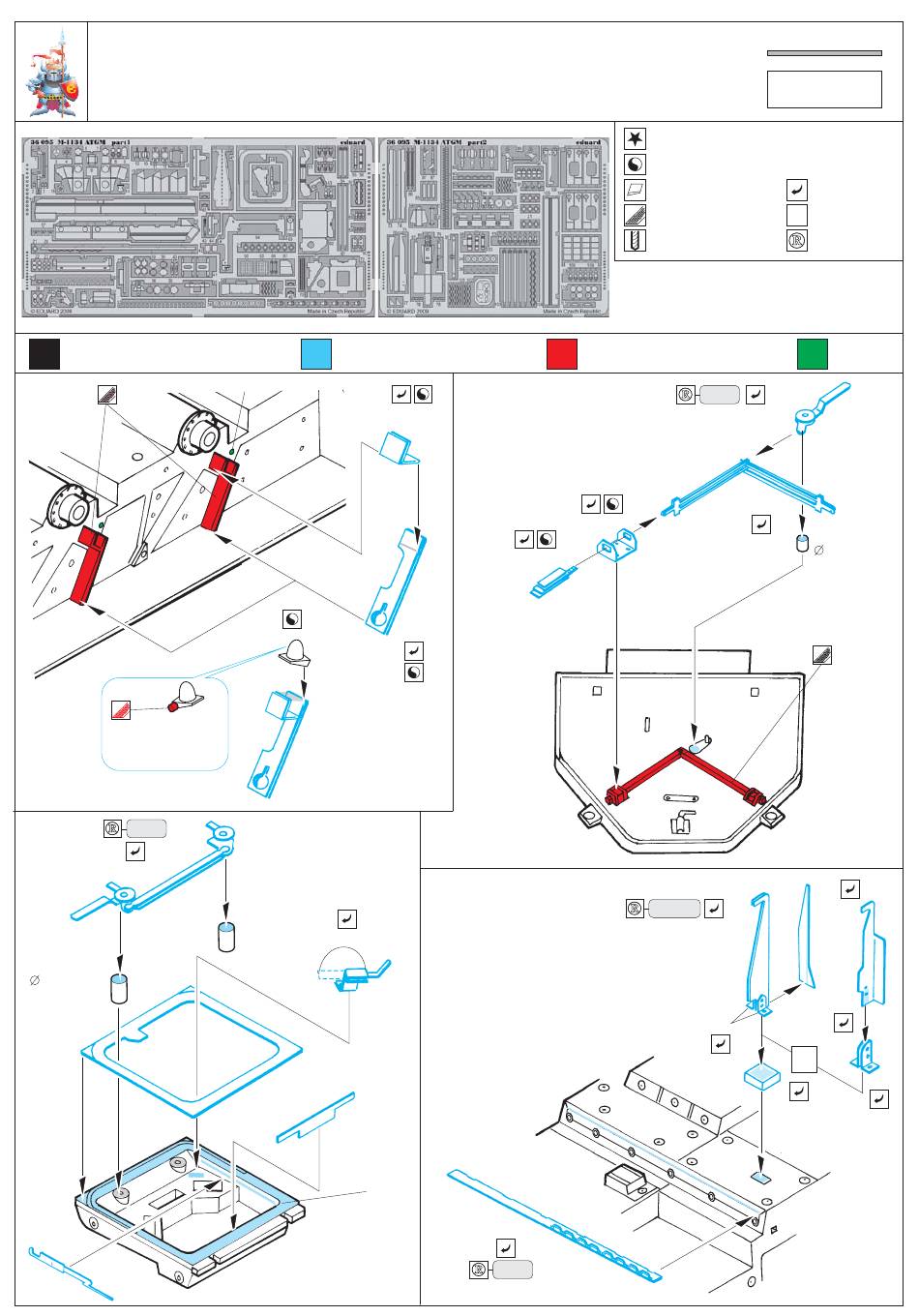

1/35 scale detail set for AFV Club kit No.AF35134 • sada detailů pro model 1/35 AFV Club AF35134
ORIGINAL KIT PARTS
PŮVODNÍ DÍLY STAVEBNICE
Hull
pcs F37
pcs F38
B23
1
2 pcs plastic
= 1,5mm
l = 2mm
79
M-1134 ATGM
PHOTO-ETCHED PARTS
LEPTANÉ DÍLY
Fill
109
2 pcs
F37
F38
107
2 pcs
108
2 pcs
95
48
25
C10
Driver hatch
APPLY EXPRESS MASK AND PAINT BEFORE GLUING
POUŽÍT EXPRESS MASK NABARVIT PŘED SLEPENÍM
SYMETRICAL ASSEMBLY
SYMETRICKÁ MONTÁŽ
REMOVE
ODSTRANIT
GRIND
OBROUSIT
DRILL HOLE
VRTAT OTVOR
PARTS TO BE REMOVED
DÍLY K ODSTRANĚNÍ
11
10
G1
P1, P2
Hull
20
D9
eduard
36 095
BEND
OHNOUT
?
OPTION
VOLBA
REPLACE
NAHRADIT
FILL
TMELIT
50
G28
2 pcs
86
plastic
= 1mm
l = 1mm
76
47
2 pcs
60
93
?
6
36 095
75
94
