Important safety instructions! Please read before connection!
DANGER! (Electrical shock due to high voltages in the device)
The housing must not be removed! There are no parts to be maintained in the device.
Inside the unit there are components which are under high electrical voltage.
Before each use, check the device for damage or the absence of components, protective
devices or housing parts. If this is the case, the device must not be used!
Leave maintenance and repair work to a qualified service workshop or contact your
dealer. In the case of a malfunction of the device, operation must also be stopped
immediately until the device has been repaired by a specialist!
DANGER! (Electric shock due to short circuit)
Modifications to the power cord or plug are prohibited. If the power cord is damaged in any
way, it must be replaced immediately with an original spare part from the manufacturer.
Always make sure that the grounding of the device is maintained. Use only the supplied
power cords and always maintain the side grounded contacts. Make sure that the sockets
used have a properly functioning protective earth.
Failure to do so may result in fire or death due to electric shock!
DANGER! (For babies and children)
Dispose of or store any packaging material properly! Packaging material must be kept out
of the reach of babies and children due to the risk of suffocation.
Ensure that children never use the appliance unattended! In addition, make sure that
children do not remove (small) parts from the device, as they could suffocate by swallowing
parts!
DANGER! (Hearing damage)
Amplifier units are able to generate harmful sound levels. Even the influence of seemingly
harmless sound levels over a longer period of time can lead to permanent damage to the
hearing (from approx. 95 dBA SPL).
Therefore, always wear professional hearing protection (earplugs or capsule ear protectors)
during operation!
Hint! (Fire hazard due to overheating)
The maximum permissible ambient temperature of this device is 40°C.
Ensure that the unit is placed in a well-ventilated location away from direct heat sources,
naked flames, combustible materials, and liquids. A minimum distance of 1 m is required.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EZ Wireless and is the answer not in the manual?

Questions and answers

Summary of Contents for FAME EZ Wireless

  • Page 1 ENGLISH Important safety instructions! Please read before connection! DANGER! (Electrical shock due to high voltages in the device) The housing must not be removed! There are no parts to be maintained in the device. Inside the unit there are components which are under high electrical voltage. Before each use, check the device for damage or the absence of components, protective devices or housing parts.
  • Page 2 ENGLISH Hint! (Operating conditions) In advance, it must be clarified with the manufacturer whether the device is also suitable for outdoor use. Never expose the device to direct rain, moisture or liquids, as this can lead to damage. Vibrations, dust or sunlight can also cause damage, avoid them! Hint! (Power supply) It is essential that you check that the device voltage matches your local mains voltage.
  • Page 3: Installation

    ENGLISH Symbols on device and packaging: The lightning flash symbol warns the user of uninsulated voltages and the risk of electric shock. The exclamation mark symbol draws the user’s attention to important maintains and operating instructions in the manual. The lightning warns you of dangerous voltage accessible from the outside. A connection to any terminal marked with this symbol may only be made with a ready-made cable that complies with the manufacturer's recommendations or with cables installed by qualified personnel.
  • Page 4: Scope Of Delivery

    Manual Intended use: The product Fame EZ Wireless XLR-plug-on transmitter system is designed as a XLR plug- on transmitter and receiver intended for wireless transmission of audio signals. The device may only be used for this purpose and in accordance with the operating instructions. Other purposes...
  • Page 5 ENGLISH Set up: All connections of the device should be made before switching on. Only use high-quality and undamaged cables that are as short as possible for the connections. Configuration of the 3-pin XLR connector...

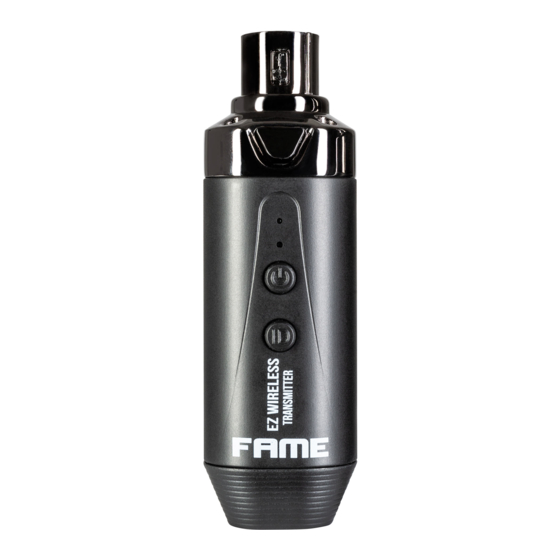

  • Page 6: Connections And Controls

    ENGLISH Connections and controls: Designation Designation 3-pin XLR connector (transmitter: XLR socket) ID button (receiver: XLR plug) Indicator (orange) Micro USB power recharging jack ID channel indicator and power Release button, push to disconnect level indicator from microphone Power button...
  • Page 7: Operation

    ENGLISH Operation: 1. First, switch on the receiver and transmitter by pressing and holding the on/off switch of both units. 2. When the orange indicator flashes, both units must be paired together. To do so, press and hold the ID channel display buttons of both units for about 5 to 7 seconds. The pairing of both units is completed when both ID channel indicators light up in the same color and the orange indicator turns off.
  • Page 8: Technical Data

    ENGLISH Technical data: Fame EZ Wireless Model Transmitter Receiver Rechargeable 3,7 V / 450 Rechargeable 3,7 V / 360 Power mAH Li battery mAH Li battery Audio interface XLR female XLR male Channel 4 GHF channel Frequency 5,729 GHz to 5,820 GHz Transmission power >...
  • Page 9: Troubleshooting

    ENGLISH Troubleshooting: The following overview serves as an aid for quick troubleshooting. If you are unsure, contact the manufacturer, the dealer or the corresponding specialist personnel. Never open the device on your own! Display Description Charge level indicator lights up Battery charge status >...
  • Page 10: Environmental Protection

    ENGLISH Cleaning: The ventilation grilles of the unit must be cleaned regularly from impurities such as dust and dirt. Switch off the unit before cleaning and disconnect mains operated units from the mains supply. Use a lint-free, damp cloth for cleaning. Never use alcohol or solvents for cleaning! Do not open the device.
  • Page 11 ENGLISH Notes MS ID: PAH0021442-000 10/2019...
