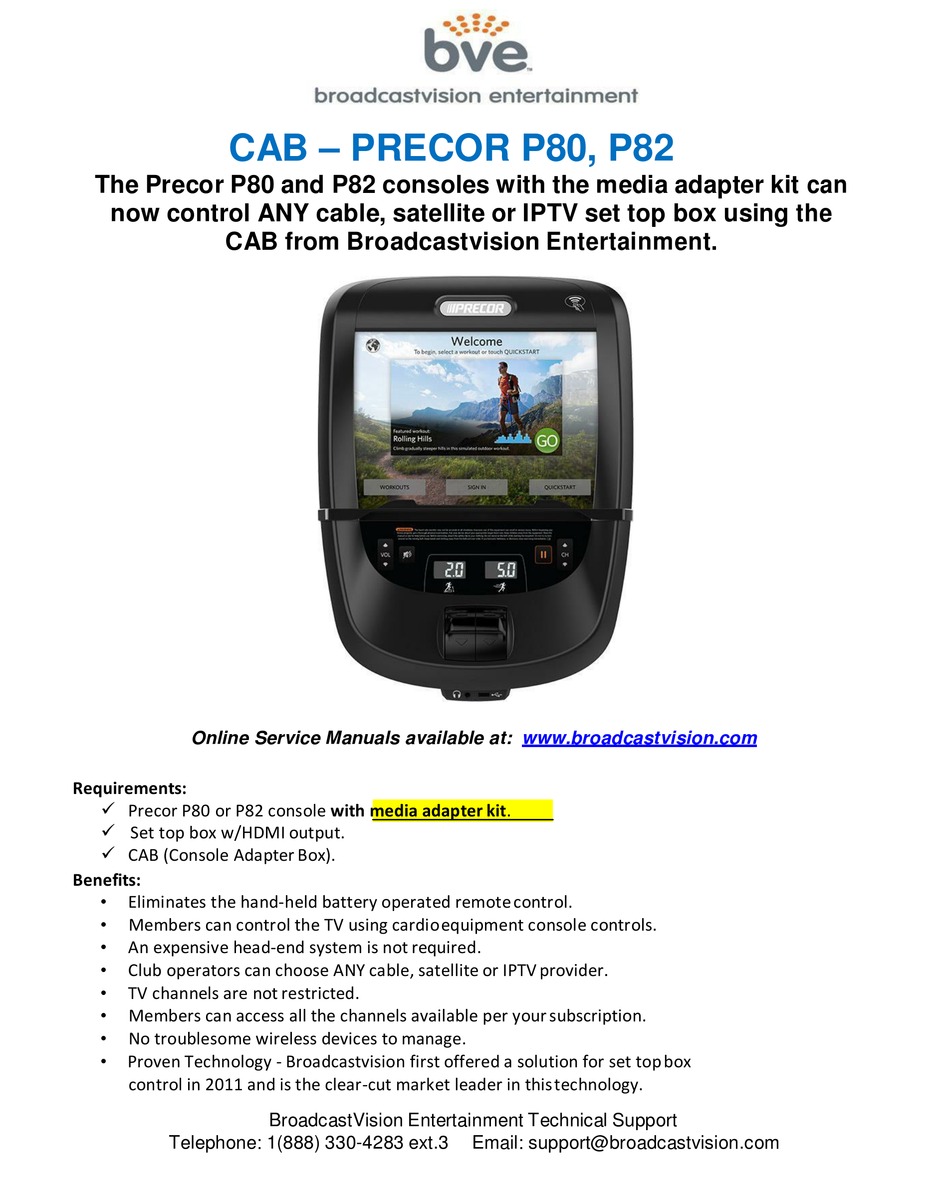

CAB – PRECOR P80, P82
The Precor P80 and P82 consoles with the media adapter kit can
now control ANY cable, satellite or IPTV set top box using the
CAB from Broadcastvision Entertainment.
Online Service Manuals available at:
Requirements:
Precor P80 or P82 console with media adapter kit.
Set top box w/HDMI output.
CAB (Console Adapter Box).
Benefits:
•
Eliminates the hand-held battery operated remote control.
•
Members can control the TV using cardio equipment console controls.
•
An expensive head-end system is not required.
•
Club operators can choose ANY cable, satellite or IPTV provider.
•
TV channels are not restricted.
•
Members can access all the channels available per your subscription.
•
No troublesome wireless devices to manage.
•
Proven Technology - Broadcastvision first offered a solution for set top box
control in 2011 and is the clear-cut market leader in this technology.
Telephone: 1(888) 330-4283 ext.3
BroadcastVision Entertainment Technical Support
www.broadcastvision.com
Email: support@broadcastvision.com
Advertisement
Summary of Contents for BVE PRECOR P80
- Page 1 CAB – PRECOR P80, P82 The Precor P80 and P82 consoles with the media adapter kit can now control ANY cable, satellite or IPTV set top box using the CAB from Broadcastvision Entertainment. Online Service Manuals available at: www.broadcastvision.com Requirements: ...
- Page 2 With correct cabling the CAB is able to automatically detect the communication signal from the console. The CAB ships pre-configured by BVE for the target STB at customer facility. Normally no additional configuration steps are required. If the CAB does not work for any reason please call technical support at 1(888)330-4283 ext.3 before leaving the facility.
-
Page 3: Installation
C-Safe power connection and IR input from the Precor console. The fist picture below shows the location of the HDMI connection, C-Safe port for power and IR cable from the Precor P80 and P82 consoles. BroadcastVision Entertainment Technical Support Telephone: 1(888) 330-4283 ext.3... - Page 4 Once the CAB is hooked up you will need to run the IR emitter cable down the machine to the base of the cardio. There it will connect to either the set top box or a cat5/6 cable for sending the signal to an AV closet. Tip: since the IR wire is very thin and easily damaged it is better to run the emitter wire through the machine.
-
Page 5: How It Works
HOW IT WORKS The Precor console can be configured to tune antenna signals directly, or it can be configured to operate directly with either of these Set Top Boxes (no CAB required): DirecTV Enseo The Precor Media Adapter console sends IR control signals to these STBs via an IR Emitter connected to a cable from the console. - Page 6 The console must be set up for the correct mapping of channel names to channel numbers, for whatever cable/sat service being used at its location. This setup is pretty much the same in a CAB application as it is in an application where the console directly controls an Enseo or DirecTV STB, the one exception is that the CAB requires all channels be mapped to the Enseo STB model in the Precor setup.
- Page 7 It’s kind of like a spreadsheet – one simply needs to enter appropriate info into each of the cells to create a channel lineup. ENSEO must always be selected as the STB Model because CAB can understand/interpret only the ENSEO commands coming out of the console’s IR Blaster cable.
- Page 8 Troubleshooting Guide: 1. Double button presses – Some set top boxes respond to more than one of the IR codes that we send out. If you notice that pressing a channel button on the console results in multiple presses, simply remove the 2 screws that hold the lid on the CAB and turn on dip switch 2 and 4.
- Page 9 e. No Continuity between CAB and IR emitter – In some circumstances utilizing the “Far” set top box scenario, the CAT5/6 cable between the set top box and the CAB may not provide full continuity through wall plates etc. It may be helpful to re-locate the STB at the base of the cardio and re-test.
- Page 10 Return Authorizations A Return Authorization number must be issued from BVE prior to any item being returned for credit, repair or exchange. Items returned without approval will be refused and returned to the sender. Requests for a Return Authorization number may be made to our Customer Service Department at 1-888-330-4283.
