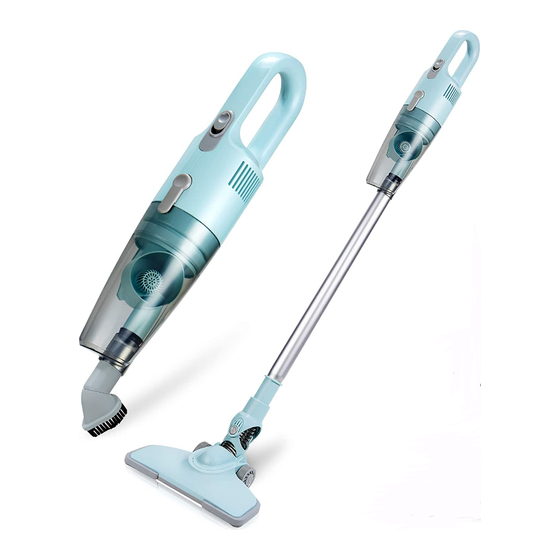

ELIGENS VCC-12A Instruction Manual

Cordless vacuum cleaner
Hide thumbs
1
2
3
4
5
6
7
Table of Contents

Advertisement

Quick Links

Download this manual
www.eligens.de
BEFORE OPERATING THIS PRODUCT, PLEASE READ, UNDERSTAND AND FOLLOW THESE
BEFORE OPERATING THIS PRODUCT, PLEASE READ, UNDERSTAND AND FOLLOW THESE

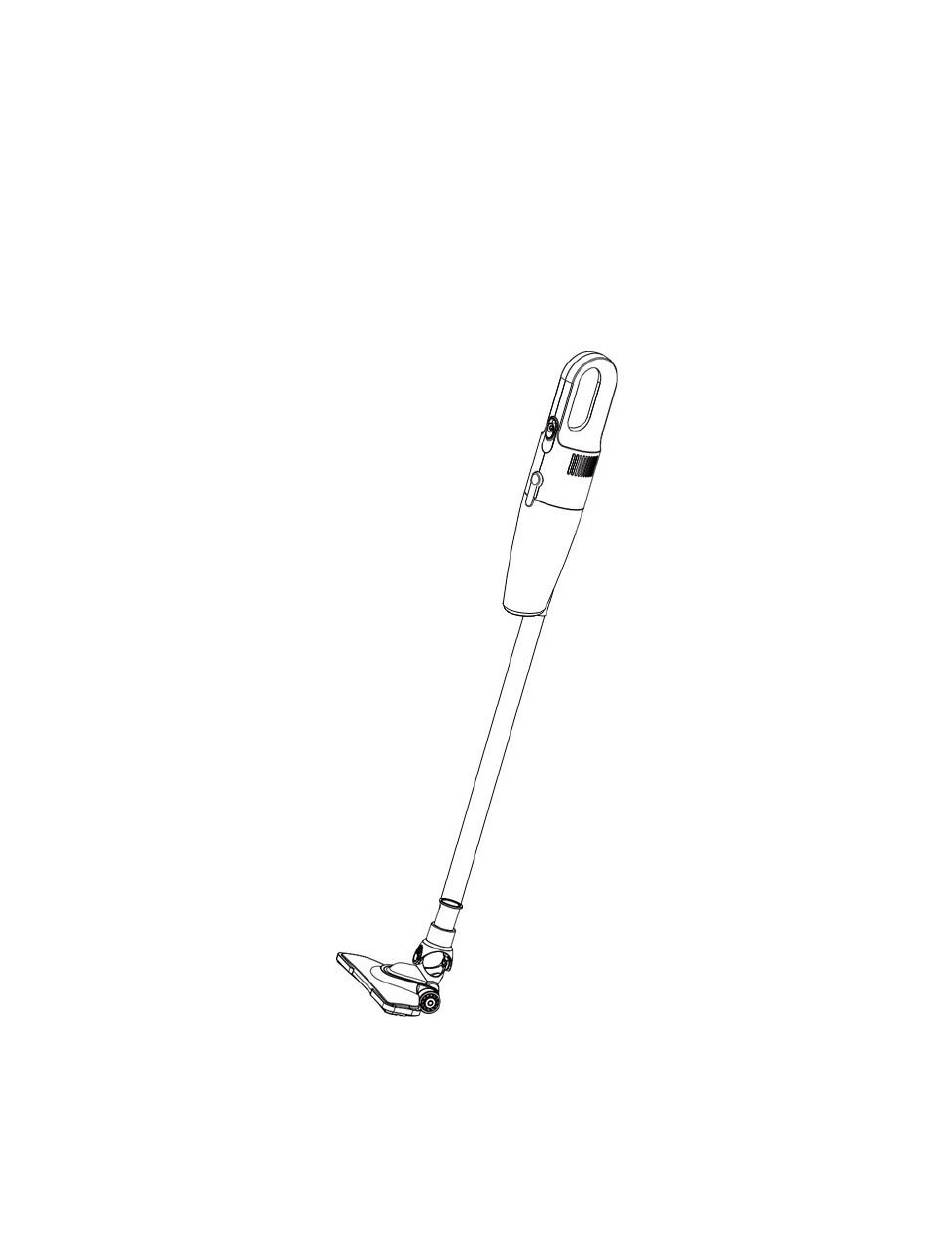

INSTRUCTION MANUAL
Cordless Vacuum Cleaner
ELIGENS – Model VCC-12A
INSTRUCTIONS.
INSTRUCTIONS.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VCC-12A and is the answer not in the manual?

Questions and answers

Summary of Contents for ELIGENS VCC-12A

  • Page 1 INSTRUCTION MANUAL Cordless Vacuum Cleaner ELIGENS – Model VCC-12A BEFORE OPERATING THIS PRODUCT, PLEASE READ, UNDERSTAND AND FOLLOW THESE INSTRUCTIONS. BEFORE OPERATING THIS PRODUCT, PLEASE READ, UNDERSTAND AND FOLLOW THESE INSTRUCTIONS.
  • Page 2 1. IMPORTANT SAFETY INSTRUCTIONS When using an electrical appliance, basic precaution should always READ ALL INSTRUCTIONS BEFORE USING (THIS APPLIANCE) 1. The vacuum cleaner is an electric appliance. It must be used in accordance with the operating conditions of the instructions. The instructions should be kept properly for future reference.
  • Page 3 2. Part name of operation instruction 1. Main body 2.On/off button 3.Dust cup release button 4. Charging port 5. Filter net 6. Cyclone separator 7. Suction inlet seal rubber 8. Dust cup 9. Metal tube 10.Floor brush 11. Sofa brush 12.Accessories hanger...
  • Page 4 3. How To use 1. As an upright vacuum cleaner (1) Please ensure that there is a filter in the dust box, all parts are connected together fasten and the power switch is OFF before use this vacuum cleaner.
  • Page 5 2. As a Compact vacuum cleaner (1) Pull out the tube from the suction inlet of the dust cup. (2) Insert the crevice nozzle into the suction inlet of the dust cup. (3) Push the start button switch to the arrow direction and the vacuum cleaner start to work.
  • Page 6 Indicator description: 1. Normal operation: The blue indicator light is always on. 2. Turn off the power: the blue light is off. 3. The battery is low: the blue indicator light flashes. 4. Fully charged: The blue indicator light is always on.
  • Page 7 5. Specifications. Rated Voltage 18.5V Battery capacity 2600mAh Charging time 4-5 hrs Working time 20 mins Charger output 24V-0.5A Charger input voltage 100-240V~50/60Hz 0.4MAX voltage Rated power 120W Max suction ≥10Kpa Noise <75dB Capacity of dust box 1.2L 6. Circuit diagram...
