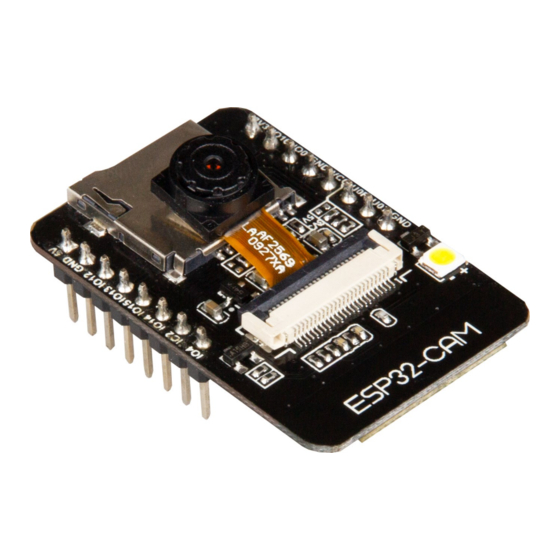

ESP32 CAMERA MODULE
SBC-ESP32-Cam
1. GENERAL INFORMATION
Dear customer,
thank you very much for choosing our product.
In following, we will introduce you to what to observe while starting up
and using this product.
Should you encounter any unexpected problems during use, please do
not hesitate to contact us.
www.joy-it.net
Pascalstr. 8 47506 Neukirchen-Vluyn
Advertisement
Table of Contents
Summary of Contents for Joy-it SBC-ESP32-Cam
- Page 1 ESP32 CAMERA MODULE SBC-ESP32-Cam 1. GENERAL INFORMATION Dear customer, thank you very much for choosing our product. In following, we will introduce you to what to observe while starting up and using this product. Should you encounter any unexpected problems during use, please do not hesitate to contact us.
- Page 2 IO2: Data 0 • IO4: Data 1 (also connected to the on-board LED) • IO12: Data 2 • IO13: Data 3 • To put the device into flash mode, IO0 must be connected to GND. www.joy-it.net Pascalstr. 8 47506 Neukirchen-Vluyn...
- Page 3 After you have installed the development environment, you can open it to prepare you for using the camera module. Go to zu File -> Preferences Add the URL: https://dl.espressif.com/dl/package_esp32_index.json under Additional Board Manager URLs. Multiple URLs can be separated with a comma. www.joy-it.net Pascalstr. 8 47506 Neukirchen-Vluyn...
- Page 4 Now go to Tools -> Board -> Boards Manager… Enter esp32 in the search bar and install the ESP32 board manager www.joy-it.net Pascalstr. 8 47506 Neukirchen-Vluyn...
- Page 5 You can now start programming your module. As the module does not have a USB port, you will have to use a USB to TTL converter. For example the SBC-TTL interface converter from Joy-it. You must use the following pin assignment.
- Page 6 (CAMERA_MODEL_AI_THINKER) and enter the SSID and password of your WLAN network, as shown in the picture below. When this step is also done, you can upload the programme to your camera module. www.joy-it.net Pascalstr. 8 47506 Neukirchen-Vluyn...
- Page 7 In the serial monitor, if you have set the correct baud rate of 115200, you can see the IP address of your web server. You must enter the displayed IP address in your Internet browser to ac- cess the web server. www.joy-it.net Pascalstr. 8 47506 Neukirchen-Vluyn...
- Page 8 SIMAC Electronics GmbH, Pascalstr. 8, D-47506 Neukirchen-Vluyn, Germa- Possibility of return in your area: We will send you a parcel stamp with which you can return the device to us free of charge. Please contact us by email at Service@joy-it.net or by telephone. Information on packaging: If you do not have suitable packaging material or do not wish to use your own, please contact us and we will send you suitable packaging.
